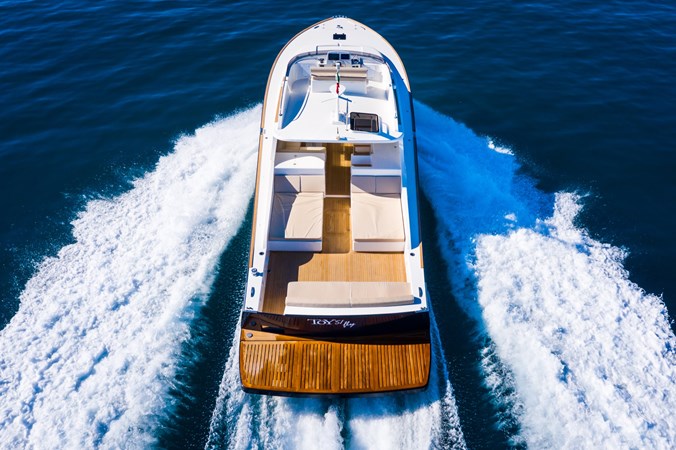

51 Fly 2025 51' 7" TOY MARINE

Description

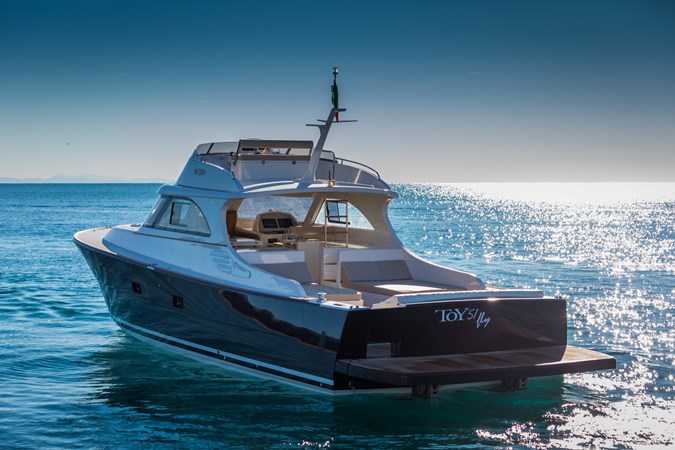

Toy Marine has developed the Toy 51 in the Fly version with a second wheelhouse on the fly bridge, extremely comfortable in maneuvering and moving along the coast, which integrates perfectly into the classic and elegant line of the boat.

The convenient access ladder leads to the upper wheelhouse in a central position with a large seat. The comfortable helm station guarantees an excellent view and allows you to steer in complete safety. The Fly bridge can also be used as an additional relaxation area separated from the other environments.

As in the case of the traditional Toy 51, different layouts and customizations of the spaces are also possible for the fly version to best meet the needs of each owner.

The Toy 51 Fly is also equipped with two 600-hp VOLVO with the IPS propulsion system which makes the boat easier to maneuver thanks to the adoption of the joystick.

The technical solutions are aligned with those of the traditional version and the outfitting of the boat is characterized by fine finishes and artisan diligence.

MAIN CHARACTERISTICS

Hull length 15,01 mt. 49.3 ft

Length overall 15,74 mt. 51.6 ft

Length at waterline 13,64 mt. 44.7 ft

Beam 4,80 mt. 15.9 ft

Draft (max) 0,90 mt. 2.9 ft

Displacement (half load) 19.5 tons

Engines N. 2 Volvo D8 600Hp

Propulsion IPS 800

Fuel capacity 580 UK gallons (2200 Lt)

Water Capacity 130 UK gallons (500 Lt)

Cruising speed 26 knots

Top speed 33 knots

Design: Nauta Design

Certification CE – B offshore

HULL AND STRUCTURES

Vessel built in accordance with CE certification, cat. B offshore
Sandwich hull sides and single skin bottom
Structural bulkheads in marine grade plywood
Watertight bulkheads: bow - midship / engine room
Hull colored gelcoat in accordance with client’s selection
Hinged transom door
GRP swimming platform with teak gratings

DECK AND FLY BRIDGE

Deck and superstructure with fly bridge laminated in GRP sandwich with PVC
core.
White gelcoat finish with sprayed non-skid
Engine room accesses, N.1 systems locker hatch and anchor locker hatch
Forepeak for anchor winch and chain

Teak

Cockpit, helm station and dinette sole covered with 10 mm teak and solid side coamings
Solid teak sheer line toe rail

Hatches, portlights and windows

Low profile deck hatches
Custom smoke grey safety glass windshield with PVB and UV treatment
Windshield center section opening with upper hinges
N.2 wipers with freshwater washer. Pump connected to boat freshwater tank
Hatches handles and hinges in stainless steel
Portholes with safety stainless steel enclosures / darkeners

Deck accessories

Flagpole
Stern recessed telescopic hydraulic gangway
Hidden deck shower with hot and cold fresh water
Courtesy foot-lights
Tender lift
Inox Swimming ladder withdrawn in the aft platform

Mooring system

N.1 2000 W anchor windlass with remote switches at helm and forepeak
Stainless Steel Trefoil type anchor Kg 20
Stainless Steel stem plate with mooring fairlead integrated
Galvanized 10 mm steel chain, 60 m length with swivel
N. 6 flush deck cleats, N.2 on the bow, N.2 midships, N.2 at stern
N. 2 flush deck stainless steel cleat on the swimming platform form tender mooring
N. 4 mooring fairleads: N. 2 on the bow, N. 2 at stern
N. 10 Folding pad eyes on the deck toward the CL. for fenders

DECK FURNITURE

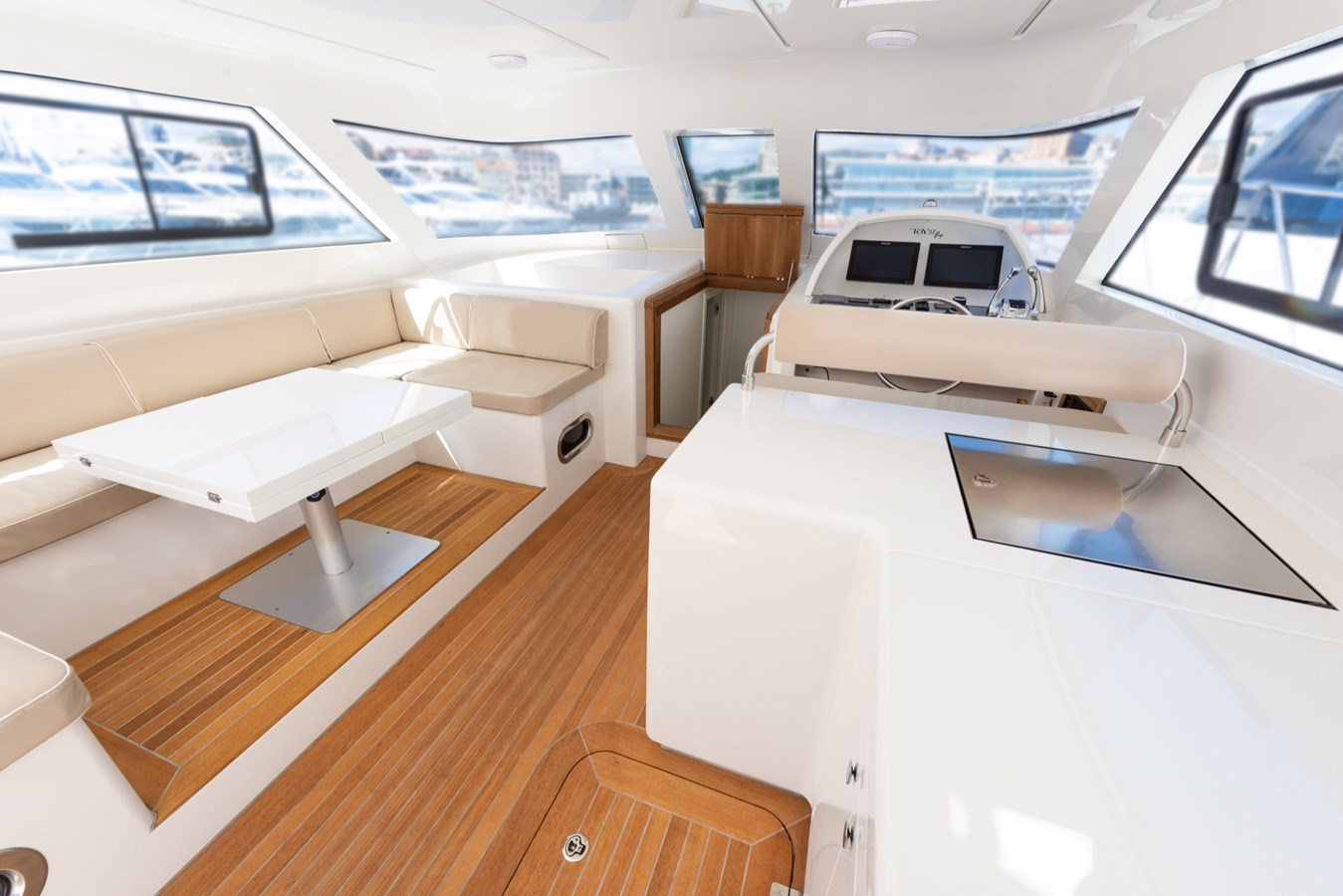

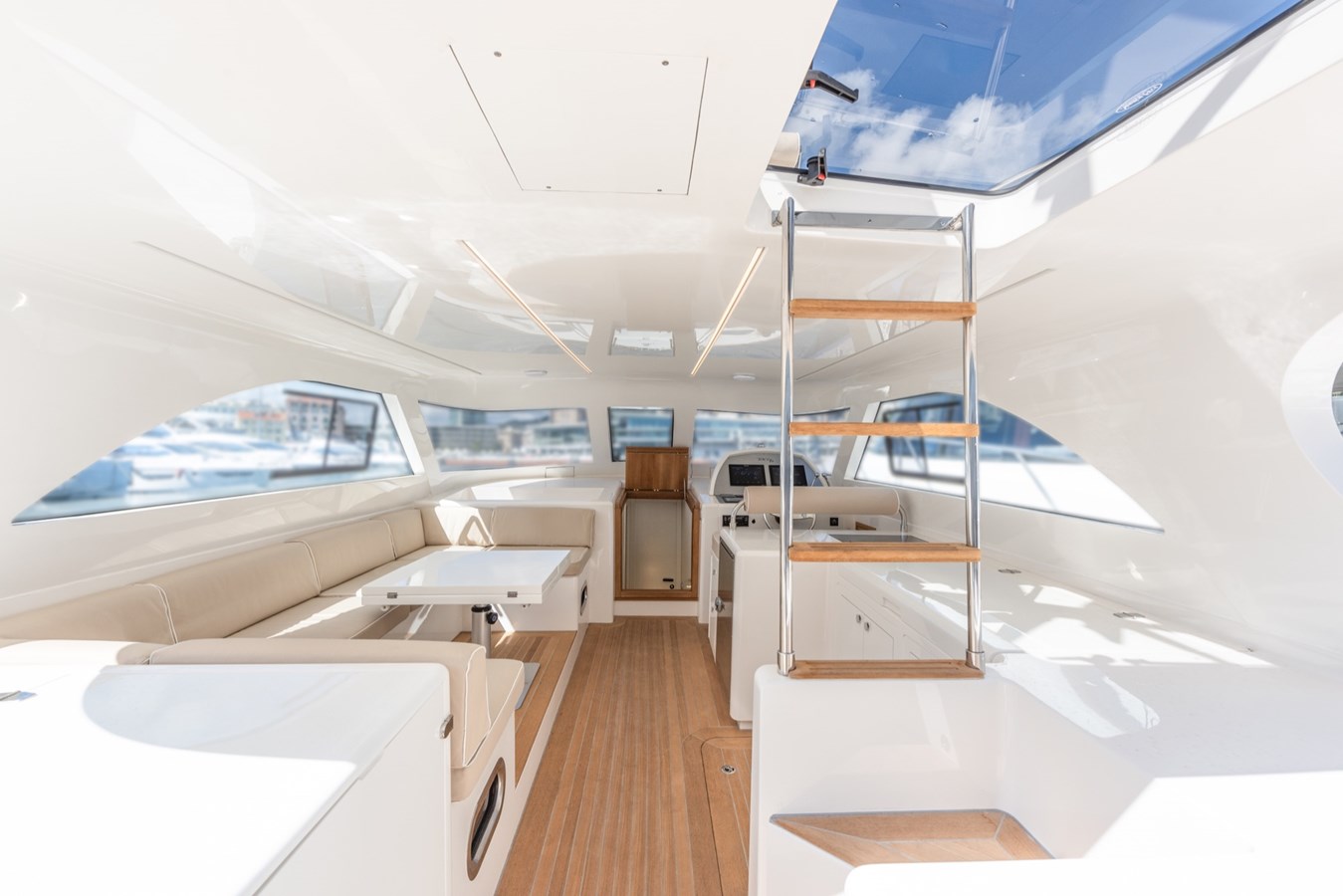

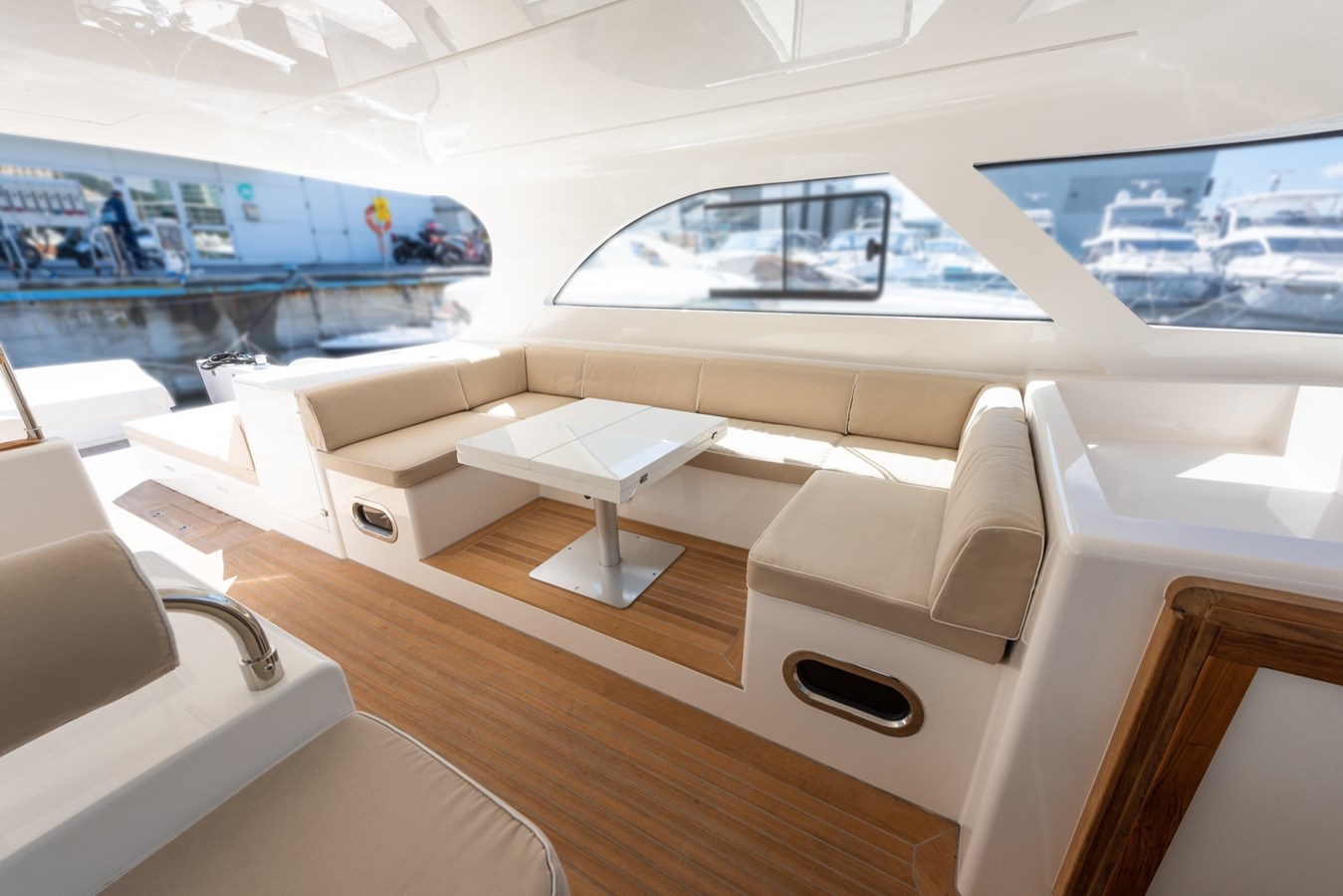

Dinette

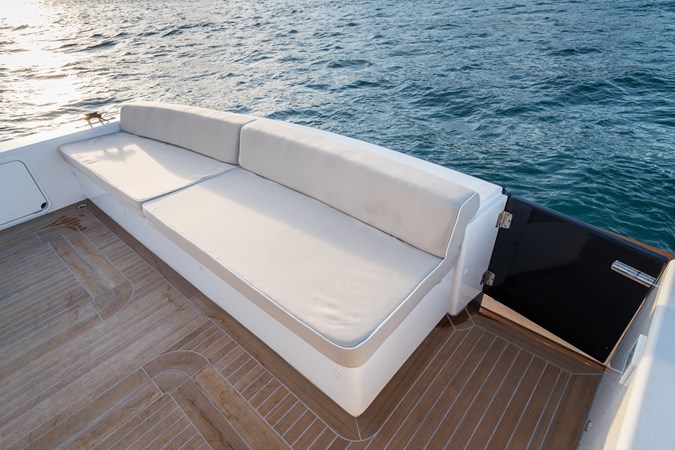

C shaped lounge with folding CL seat
Teak covered hi-low table

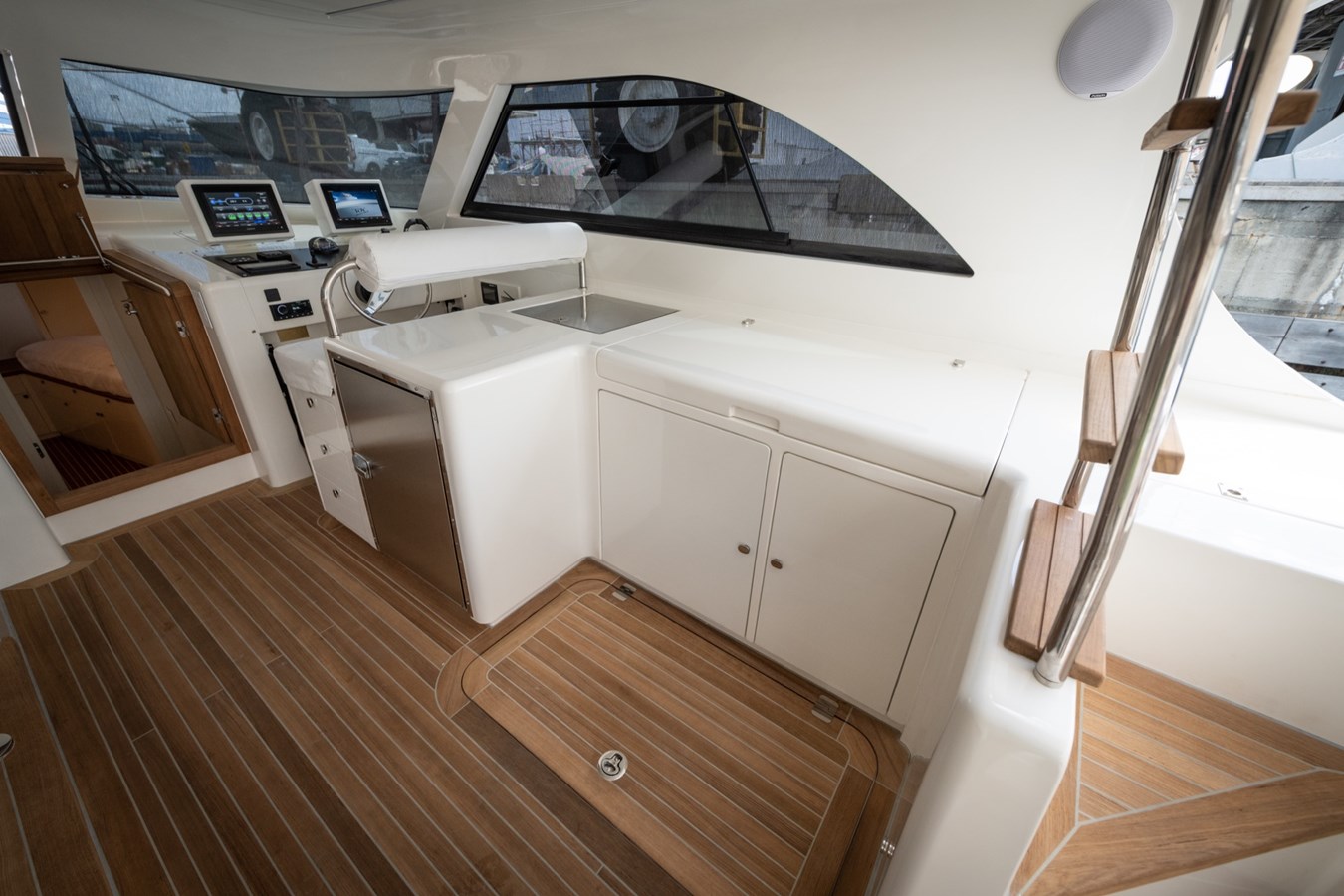

Galley

Open galley on stbd side facing the dinette
Induction cooktop with two burners
Sink with hot-cold mixer faucet
Refrigerator 110 l.
Freezer sunk in countertop 50 l.

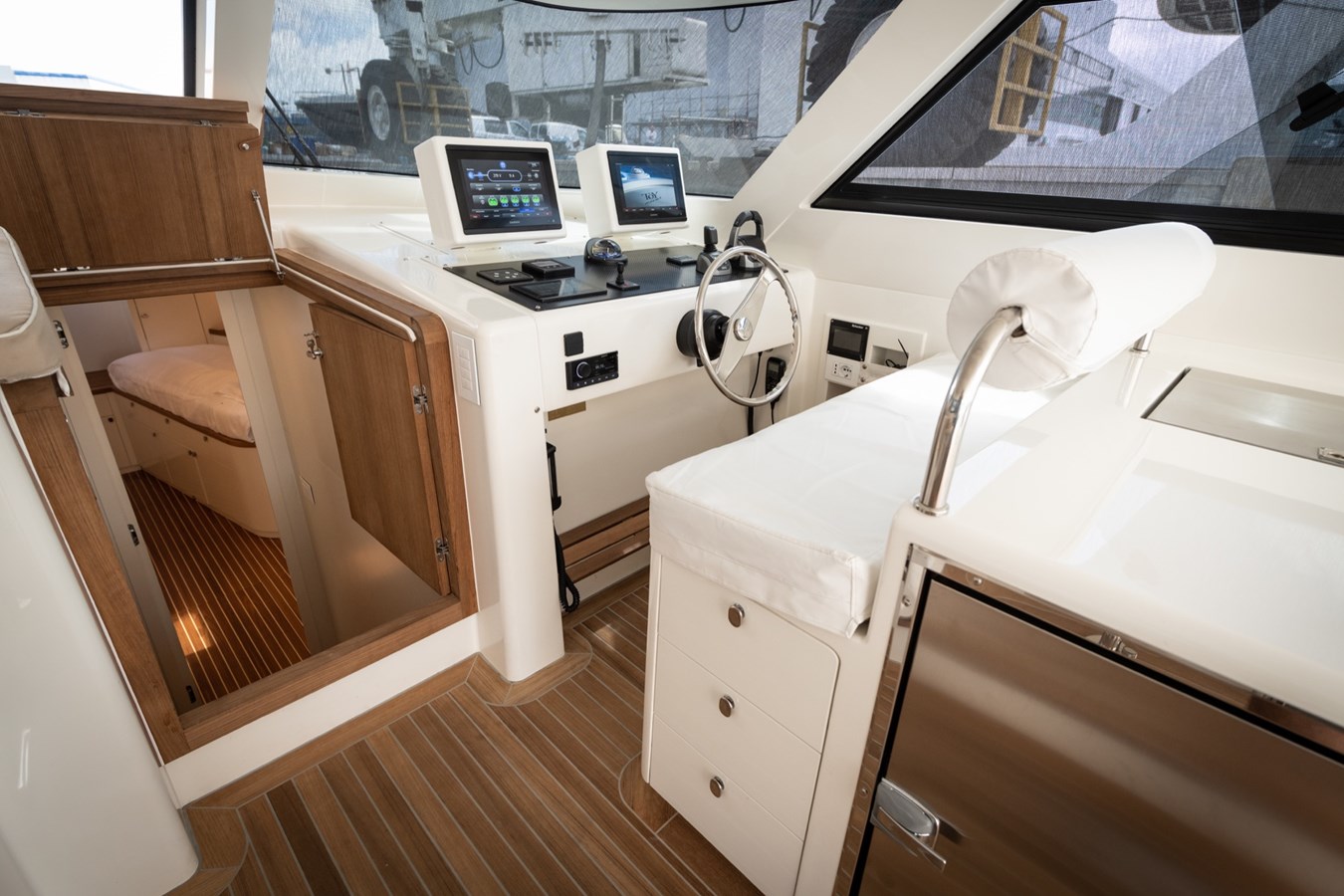

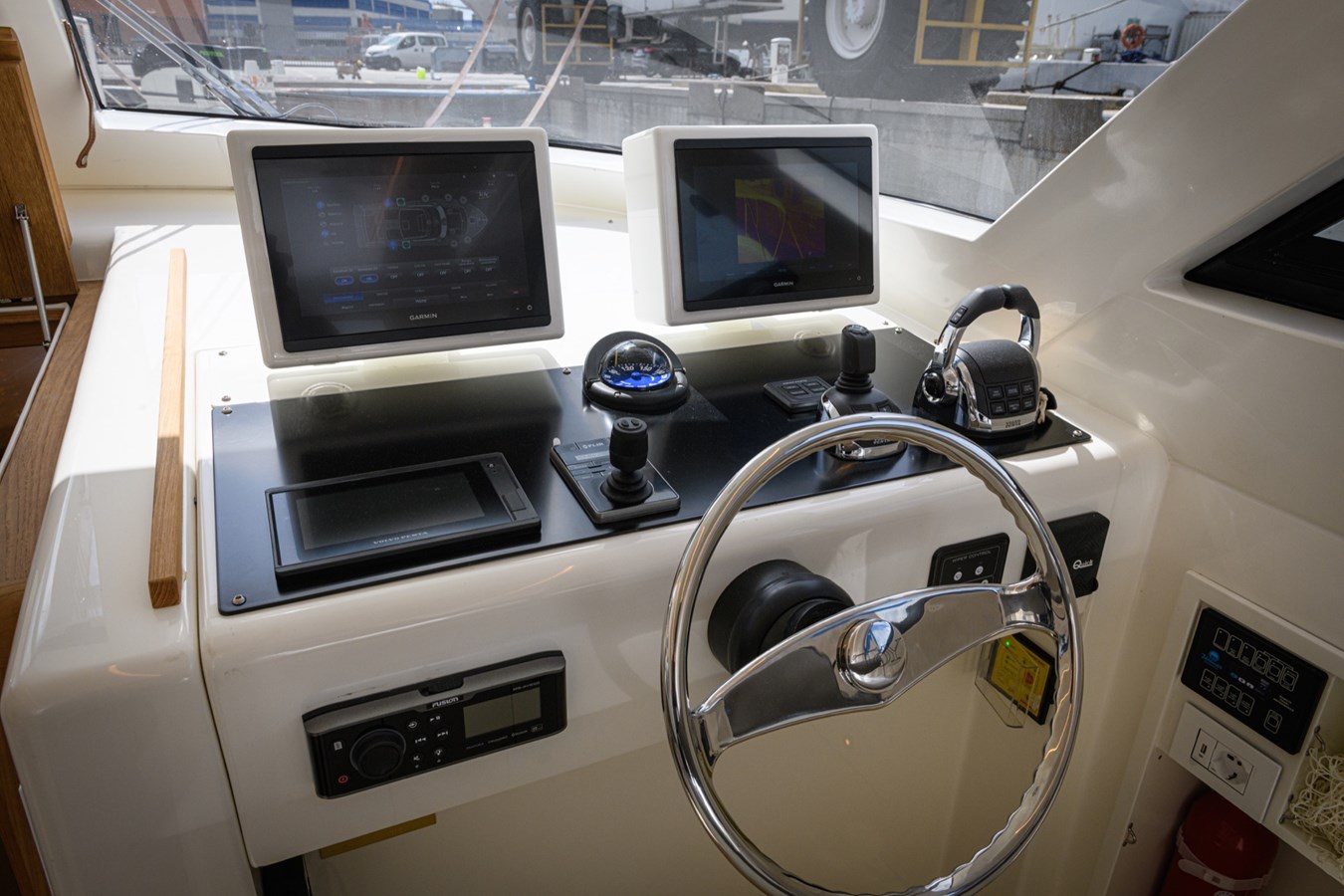

Steering station

Double helm seat to the front of the galley
Helm console with instruments and engine controls and various

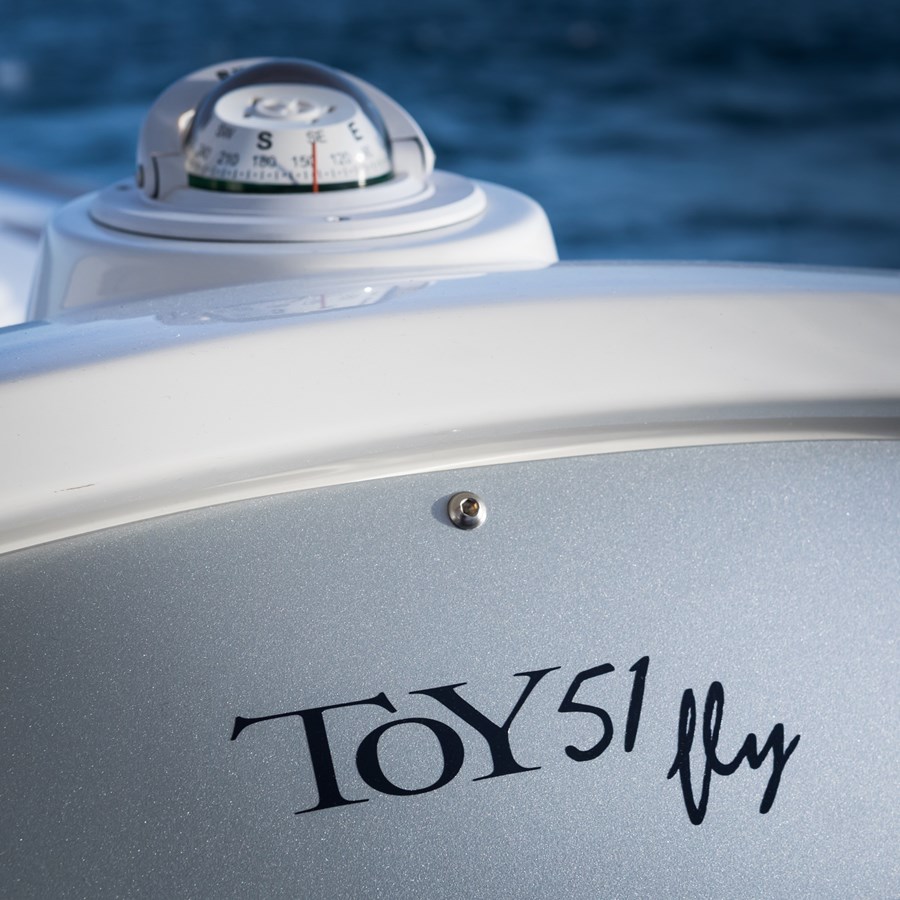

3” Ritchie magnetic compass
Ongaro Stainless steel steering wheel
Hydraulic steering system

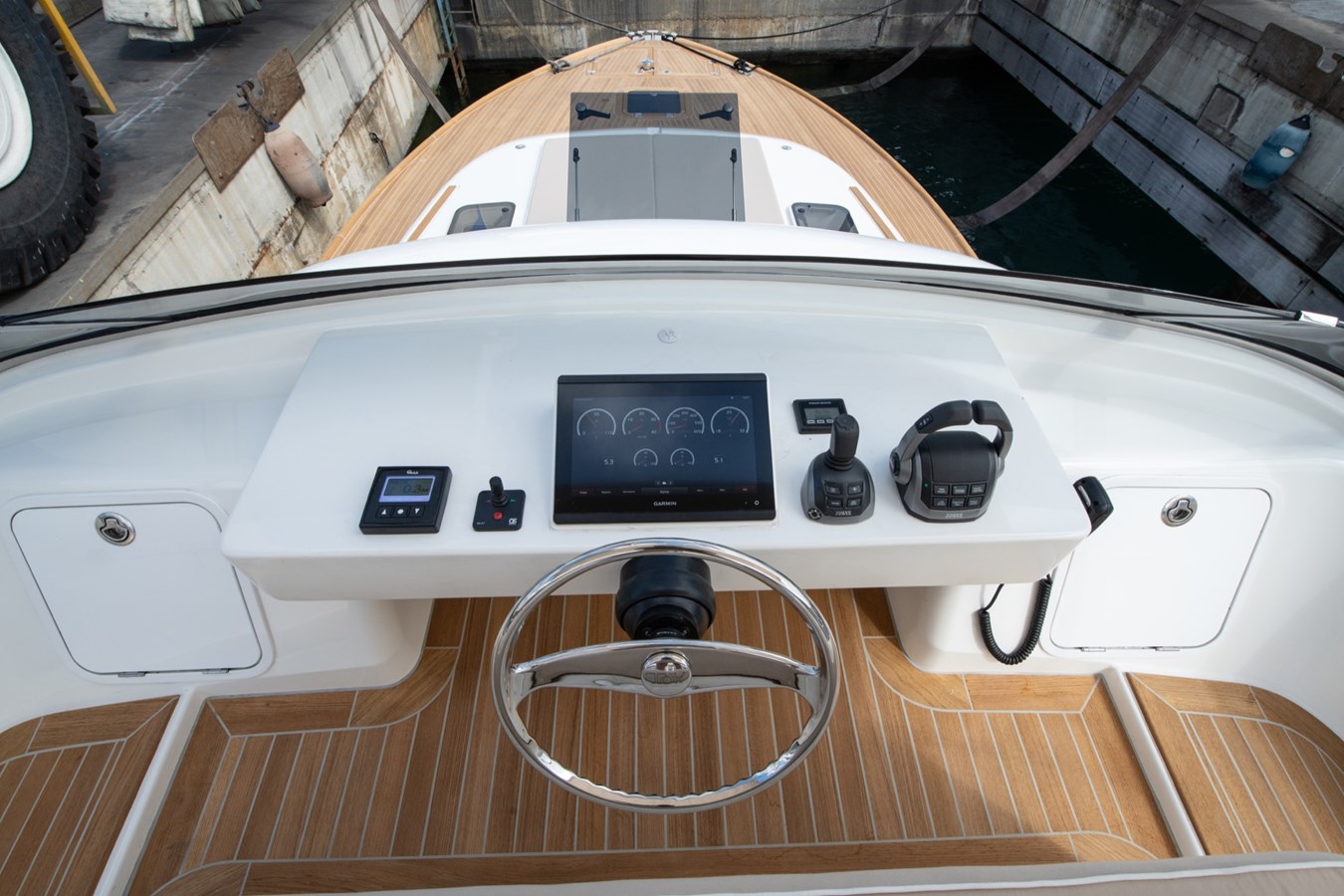

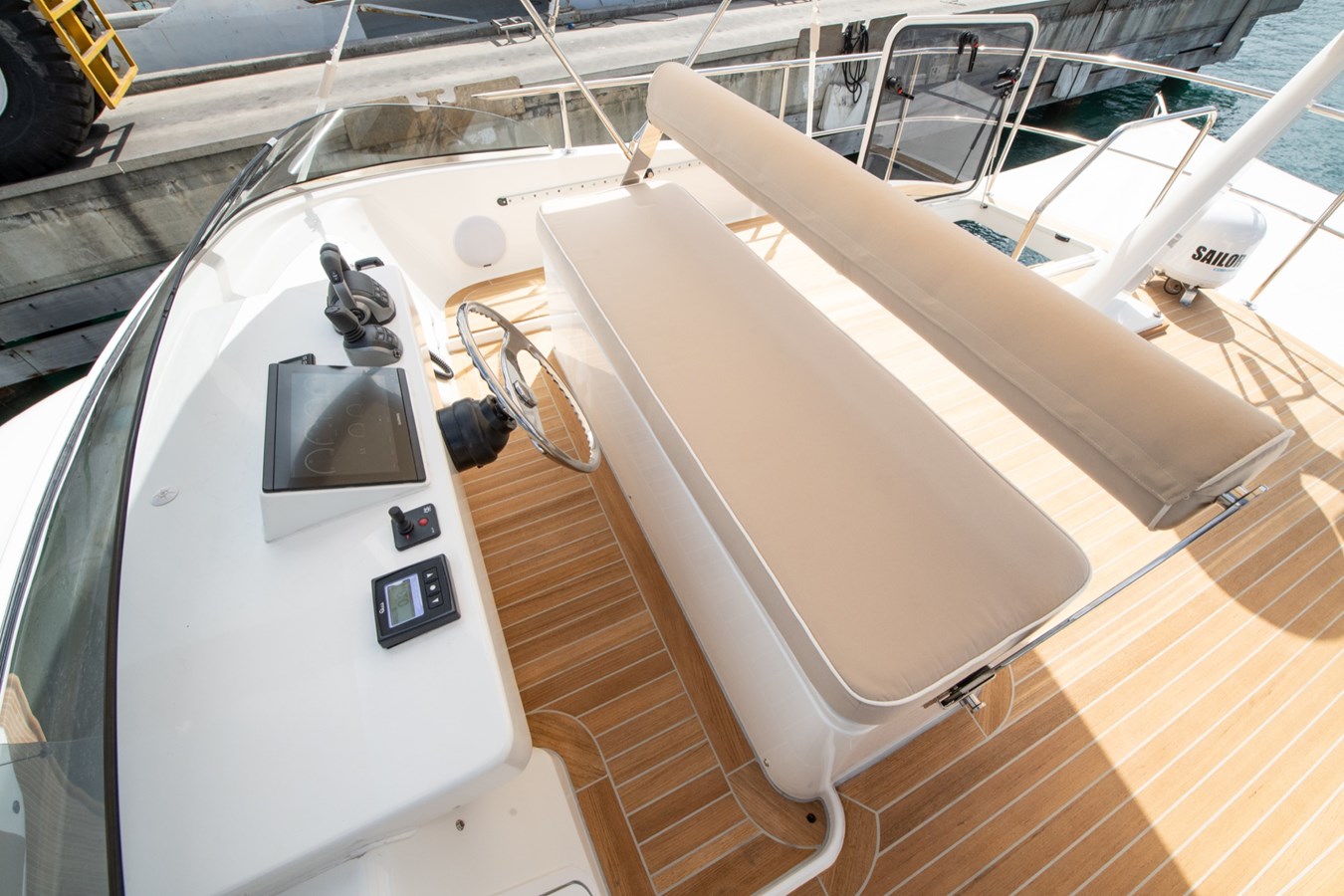

Fly bridge helm seat and stainless-steel steering wheel with engine controls

Upholstery and canvas

Dinette cushion with Sunbrella washable external cover.
External cushions with closed cell rubber foam and with Sunbrella washable external cover
Fly bridge cushions with closed cell rubber foam and with Sunbrella washable external cover

INTERIOR FURNITURE

Interior material

Furniture and bulkheads and hull linings off white lacquered with teak trims or teak/mahogany veneered, door frames bulkhead flush and teak doors
Cabin sole made of marine grade plywood and finished with teak, oak or mahogany veneer
Door handles, and interior fittings in polished stainless steel or satin finish

CABINS

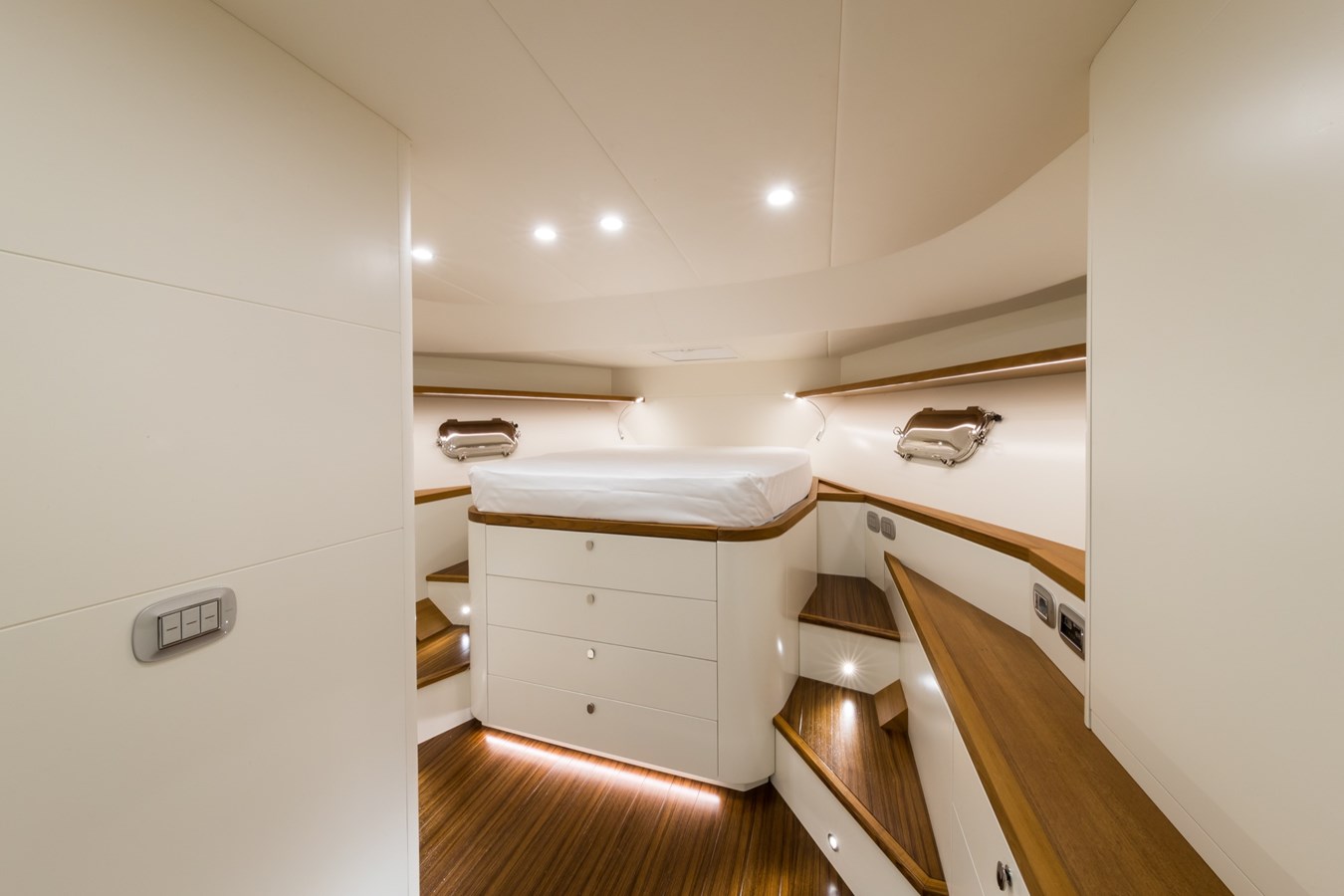

Front cabin

King size bed
N. 2 hanging lockers with drawers
Drawers and storage under berth
220V 60hz outlet
N. 1 opening deck hatch
N. 2 hull opening portlights
N. 2 bookshelves at stbd and port side

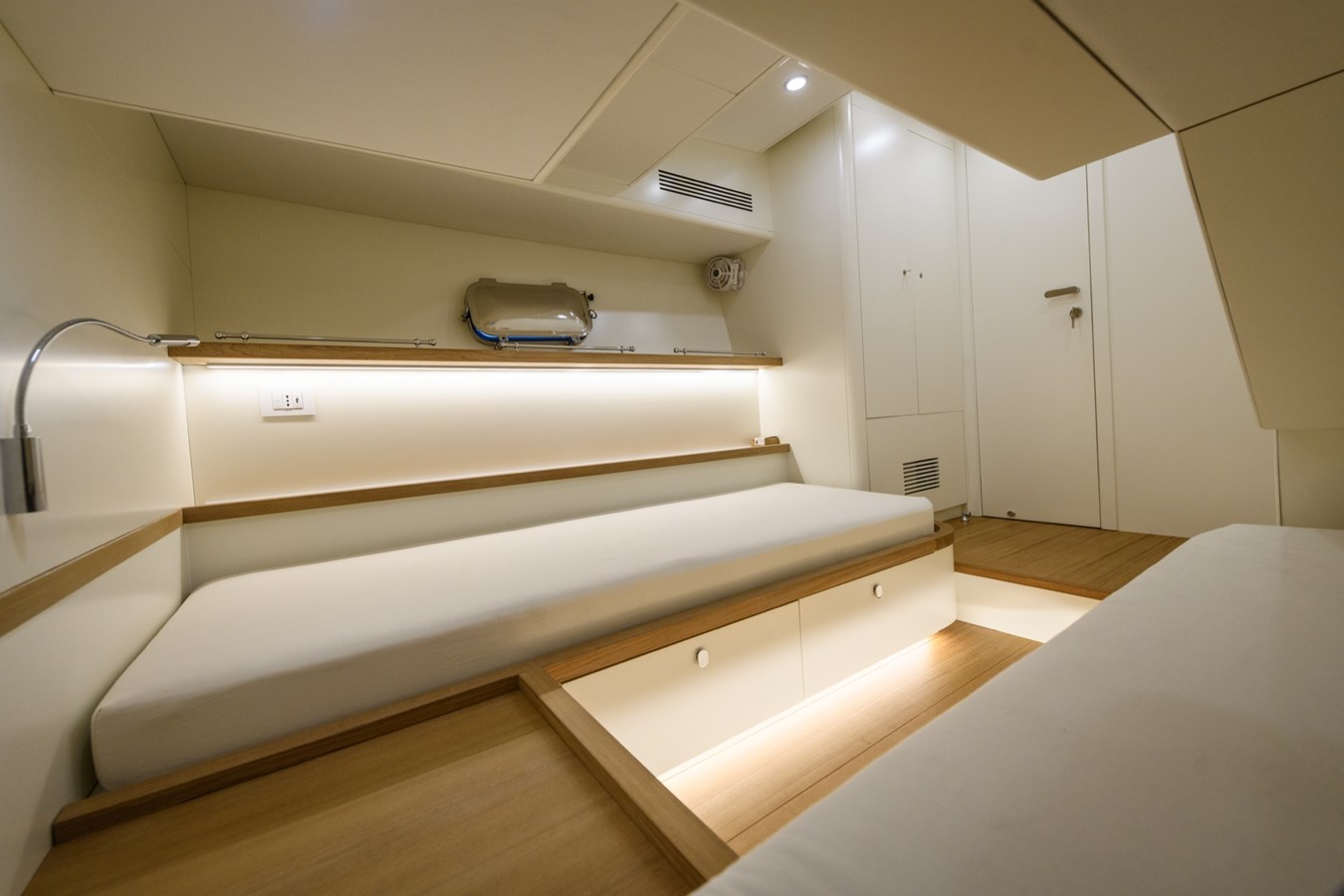

Guest cabin

Twin beds
N. 1 hanging locker with drawers
Drawers and storage under berth
220V 60hz outlet
N. 2 hull opening portlights

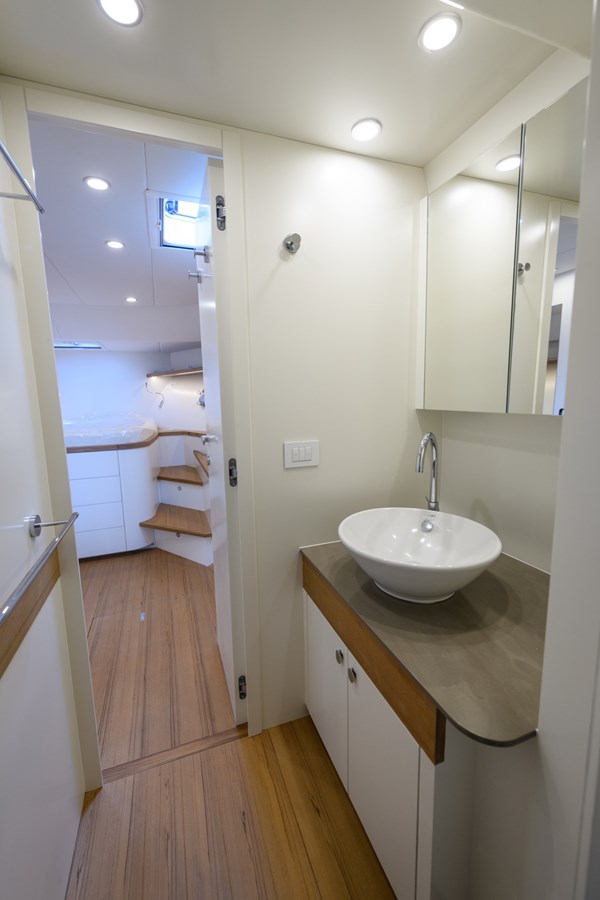

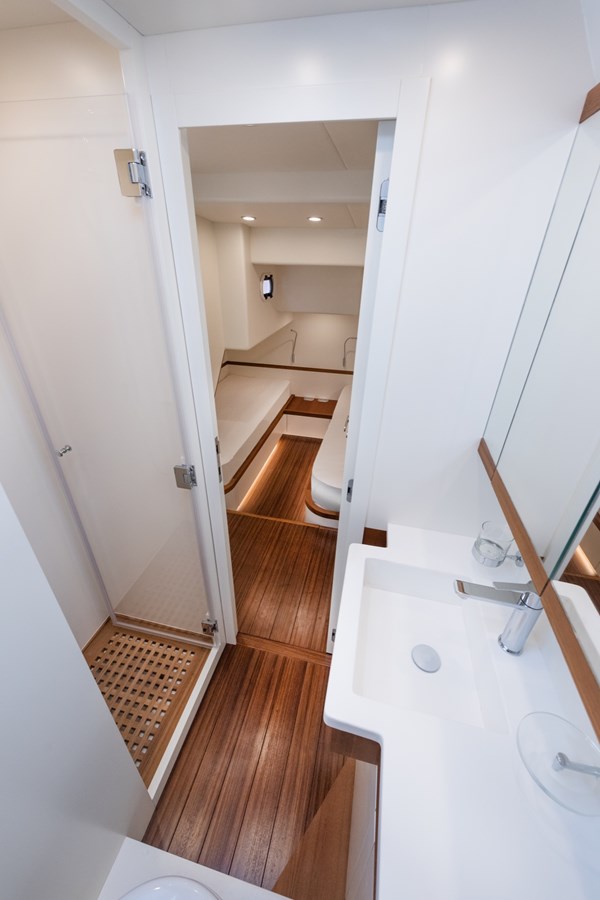

Heads

Sink with storage below and vanity mirror
Separate shower with teak gratin
Hot-cold lever mixer faucet
Electric toilet
220 V 60hz outlet
Teak cabin sole
Shower with mixer & support
Complete set of bathroom accessories
Opening deck hatch

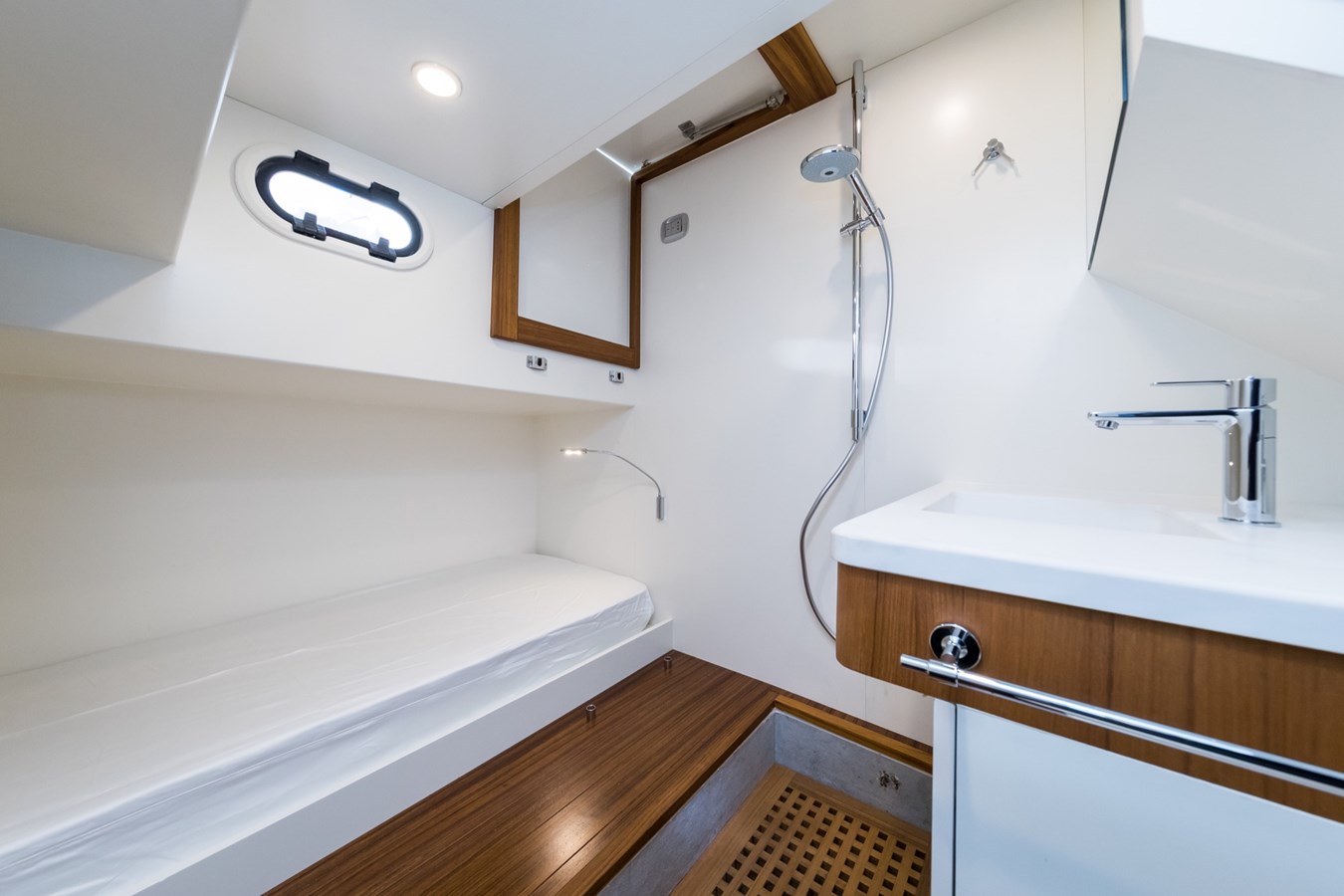

Crew cabin

Access hatch from port deck
Single bed
N. 1 hanging cocker
Porthole
Washbasin, WC and shower with grating

Upholstery

Foam berth mattresses with lining
Bedspread quilt and shams available in different colours
Upholstered ceilings in sky leather

ENGINES

Volvo D8; 600 hp.
IPS 800
Integrated Lowspeed
Volvo Penta Interceptors system for stability control

Fuel system

50 mm Stainless steel fuel fills on deck with drain
Structural GRP fuel tank of 2200 lt capacity, with stainless steel inspection and cleaning port including fills, supplying engines and generator
Tank level gauge at steering station
Racor filter for each engine

Cooling and exhaust system

Engine cooling system with heat exchanger
Bronze seacocks with valve
Raw water strainers with removable stainless-steel filters
Integrated exhaust

Ventilation and insulation

Engines air intakes in hull top sides
Engine compartments blowers
Engine hatches and engine room acoustically insulated with fireproof and washable material

AUXILIARY EQUIPMENT

Fresh water system

Stainless steel flush fill on deck
N°2 structural VTR water tanks for a total of 500 ltrs with inspection ports
Water level gauge at steering station
Shore water supply connection with pressure regulator
Fresh water pressure pump
220V AC, 50 lt stainless steel boiler
Water distribution system for galley, head and cockpit shower
Cockpit shower with hot and cold water

Salt water system

Raw water pressure pump
Manifold for distribution to WC, galley and anchor locker chain washer

Grey water system

Grey water tank for head sink and shower including 24V drain pump
Galley sink with overboard discharge

Black water system

N. 3 electric toilets
Black water polypropylene tank with electric sump pump and Y valve, 150 l.
Alarm for full tank, valves manifold for dock / overboard discharge

Bilge system

N. 3 24V DC automatic bilge pumps. One in aft peak, one mid ship / engine bay, one for cabin / forepeak
Bilge pumps have automatic switch floats and manual override switches on helm console
N.1 emergency hand bilge pump in cockpit with three-way valve to drain all bilges and overboard discharge with siphon and safety valve

ELECTRIC SYSTEM

220 V AC 60hz
