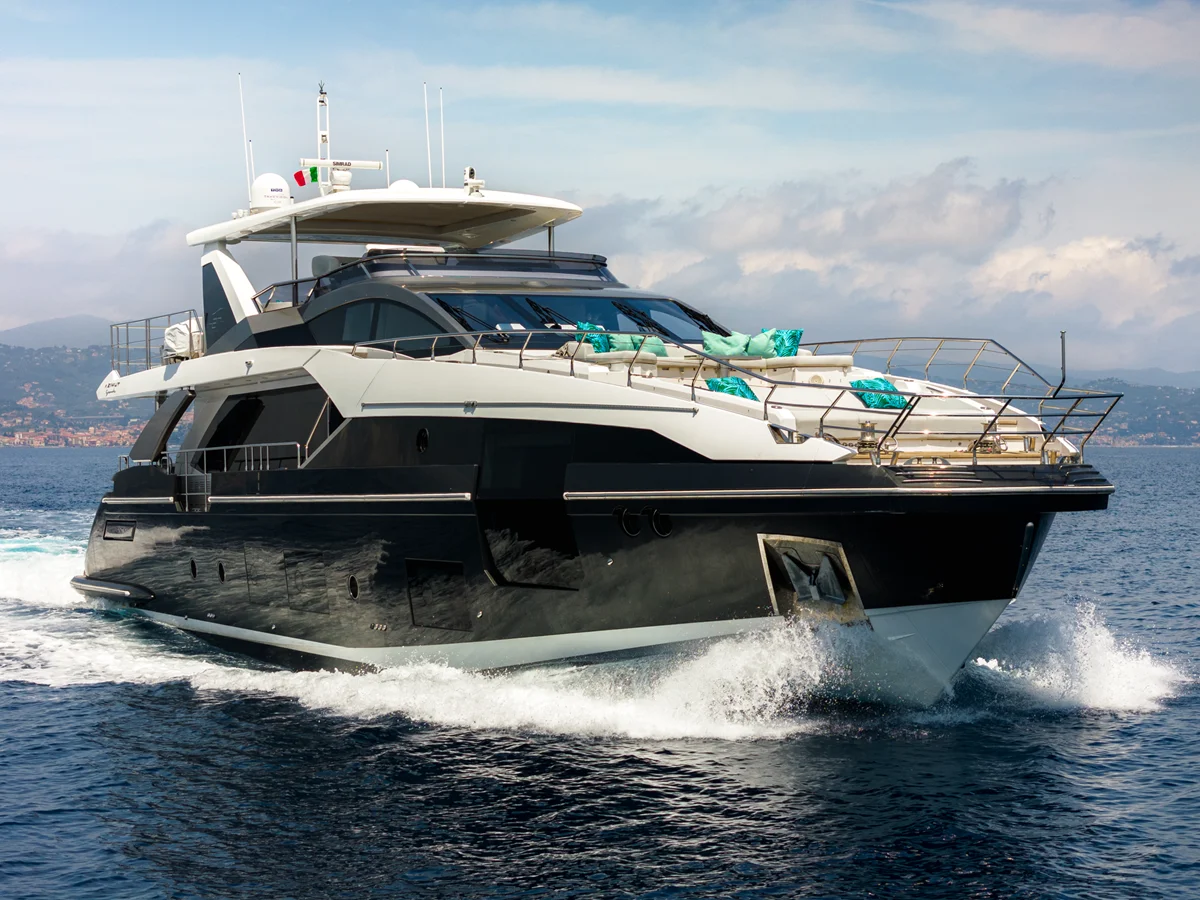

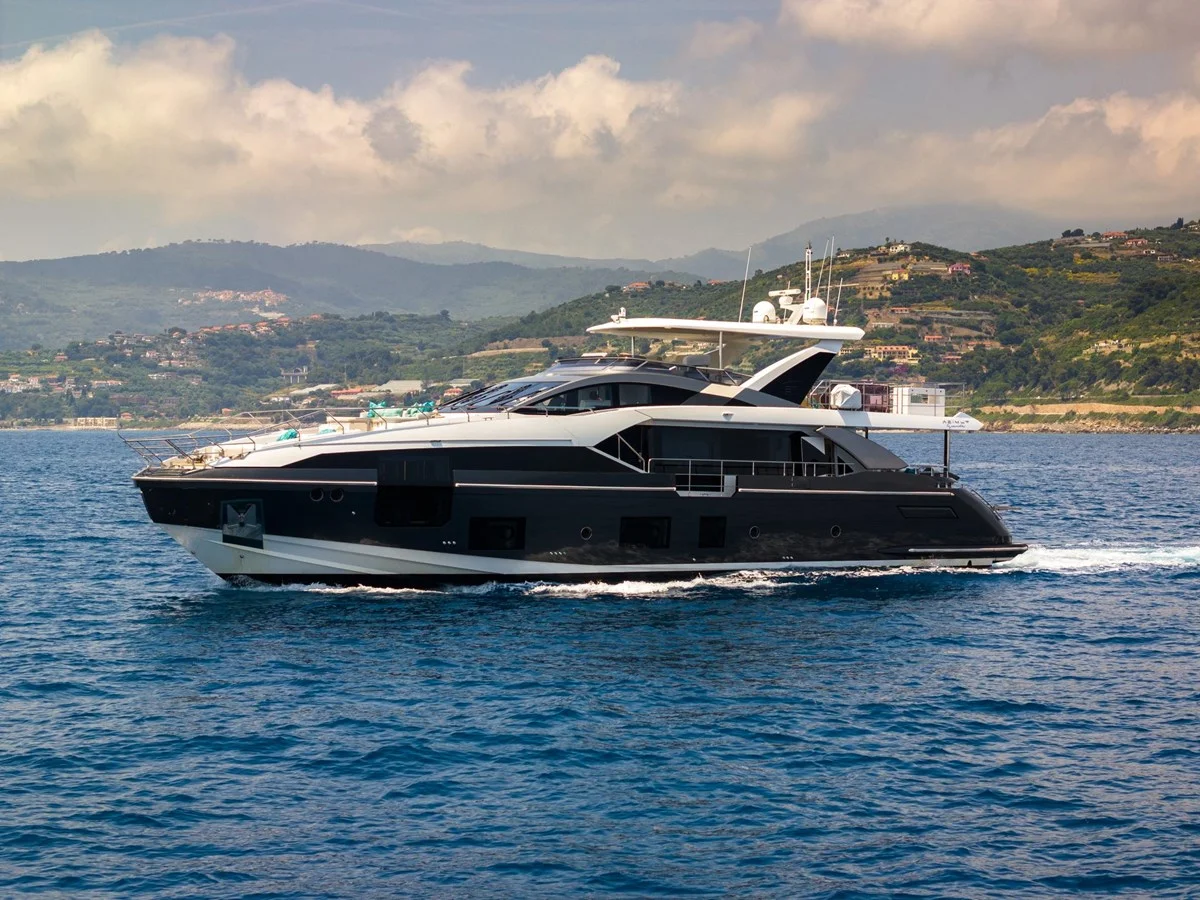

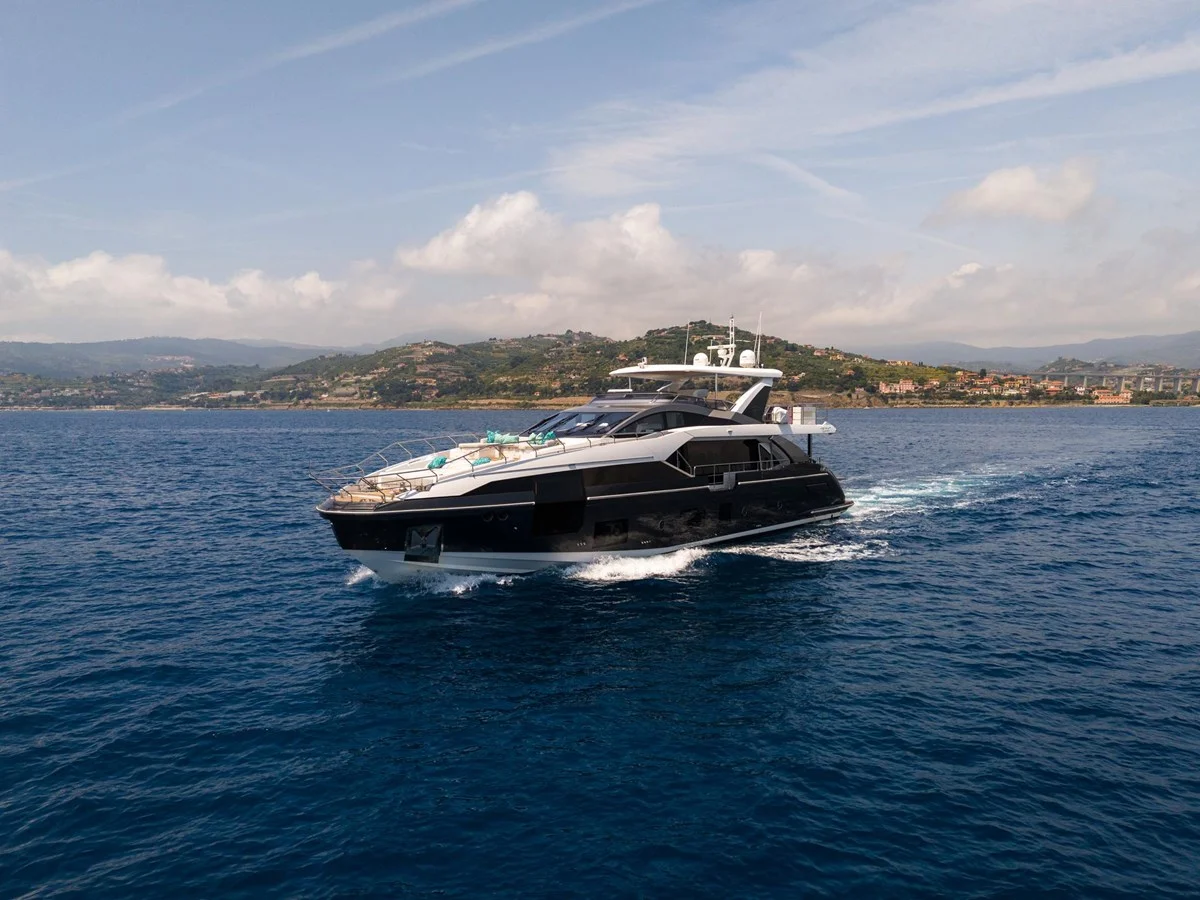

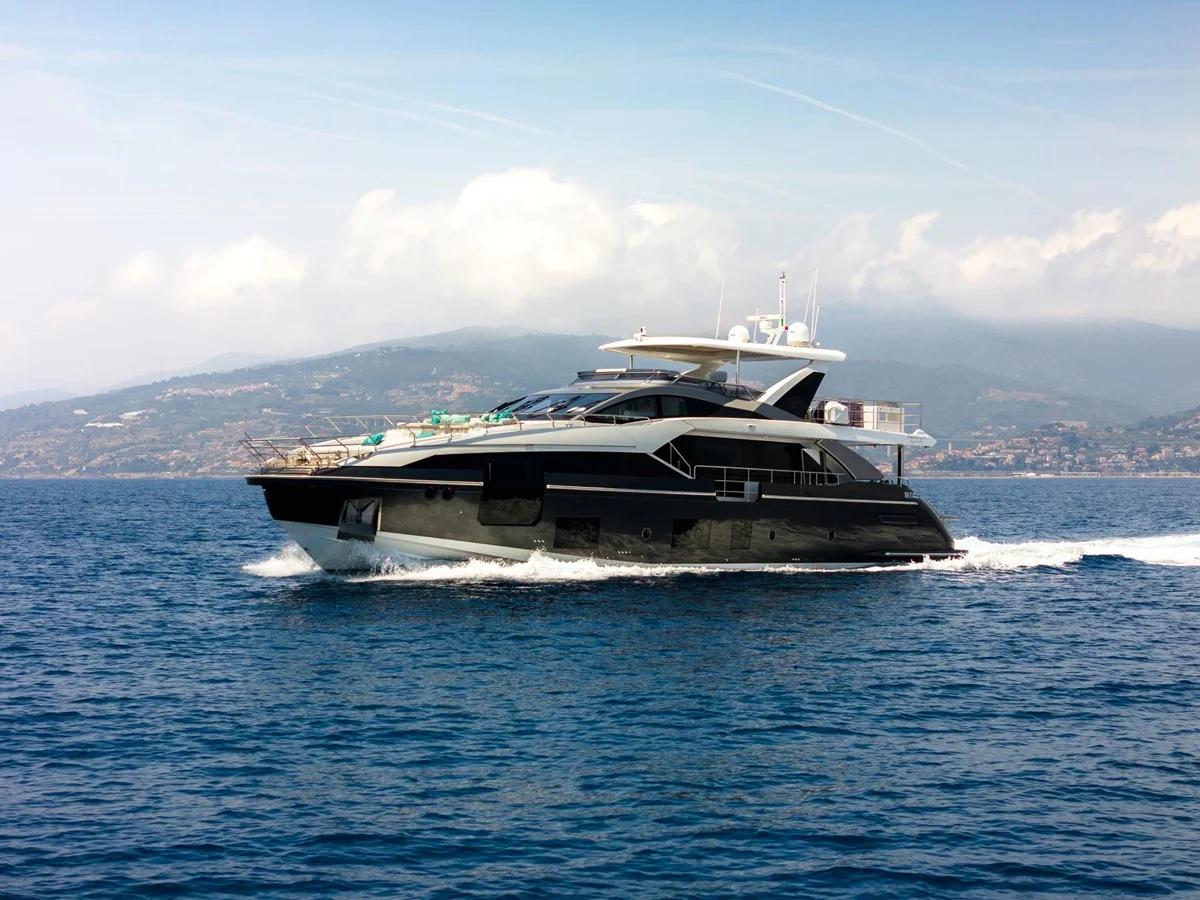

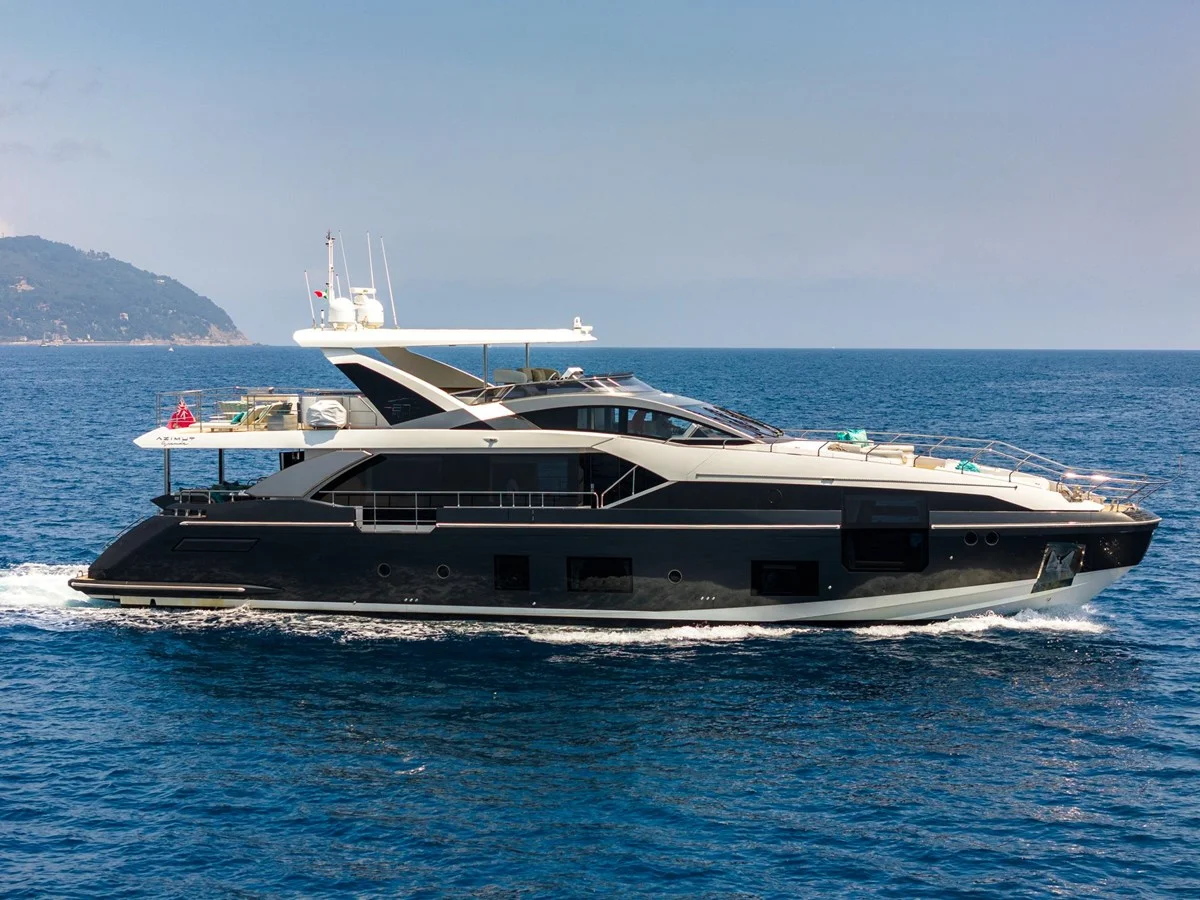

Grande 27M 2019 AZIMUT YACHTS

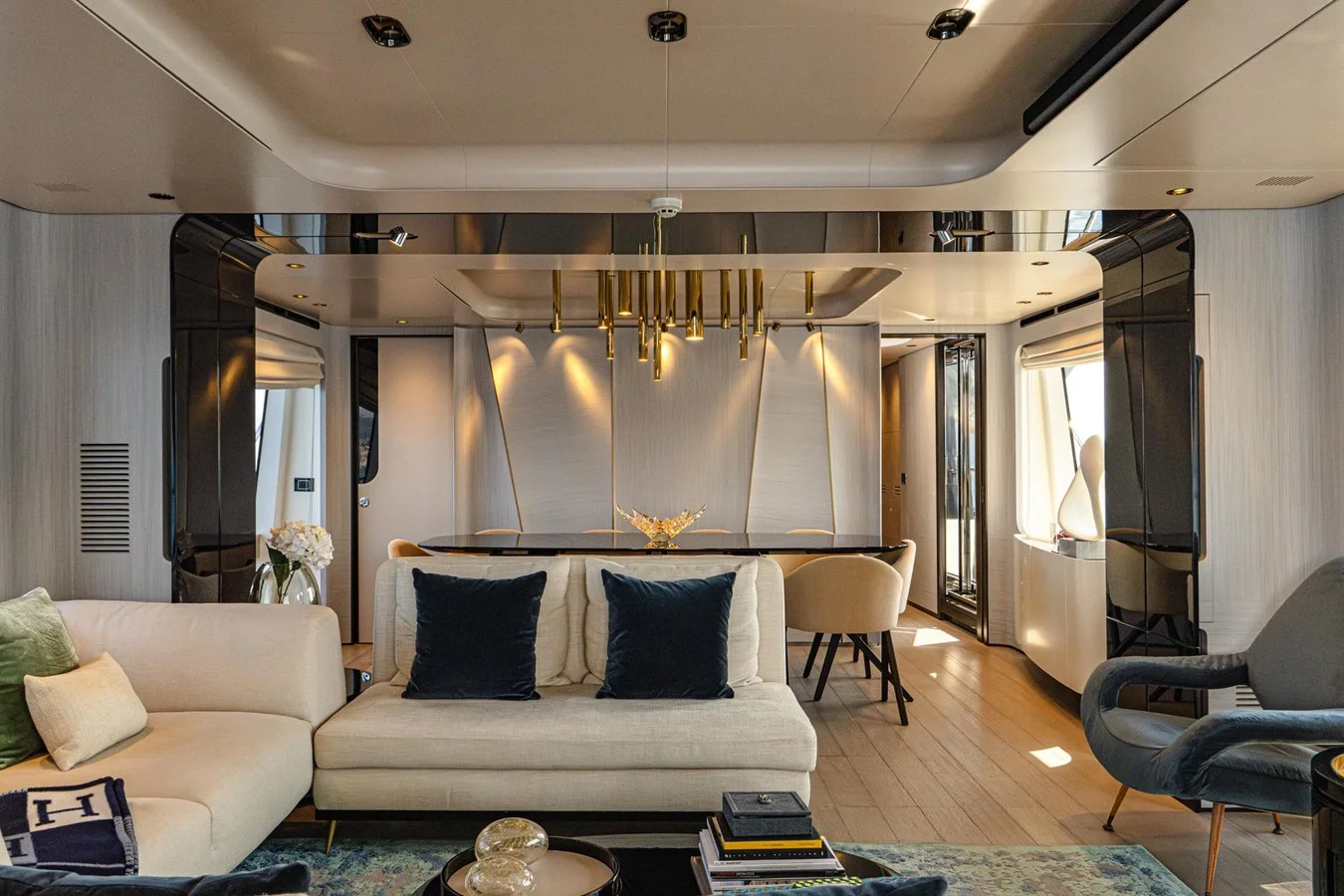

Built by Azimut in Italy and delivered in 2019, this 27M is part of Azimut’s flagship Grande Collection, combining renowned Italian craftsmanship with contemporary styling and strong performance. Her exterior design is by Stefano Righini, while the sophisticated, warm interior is styled by Achille Salvagni, she is the most luxurious version, with several additional features compared to the standard model.

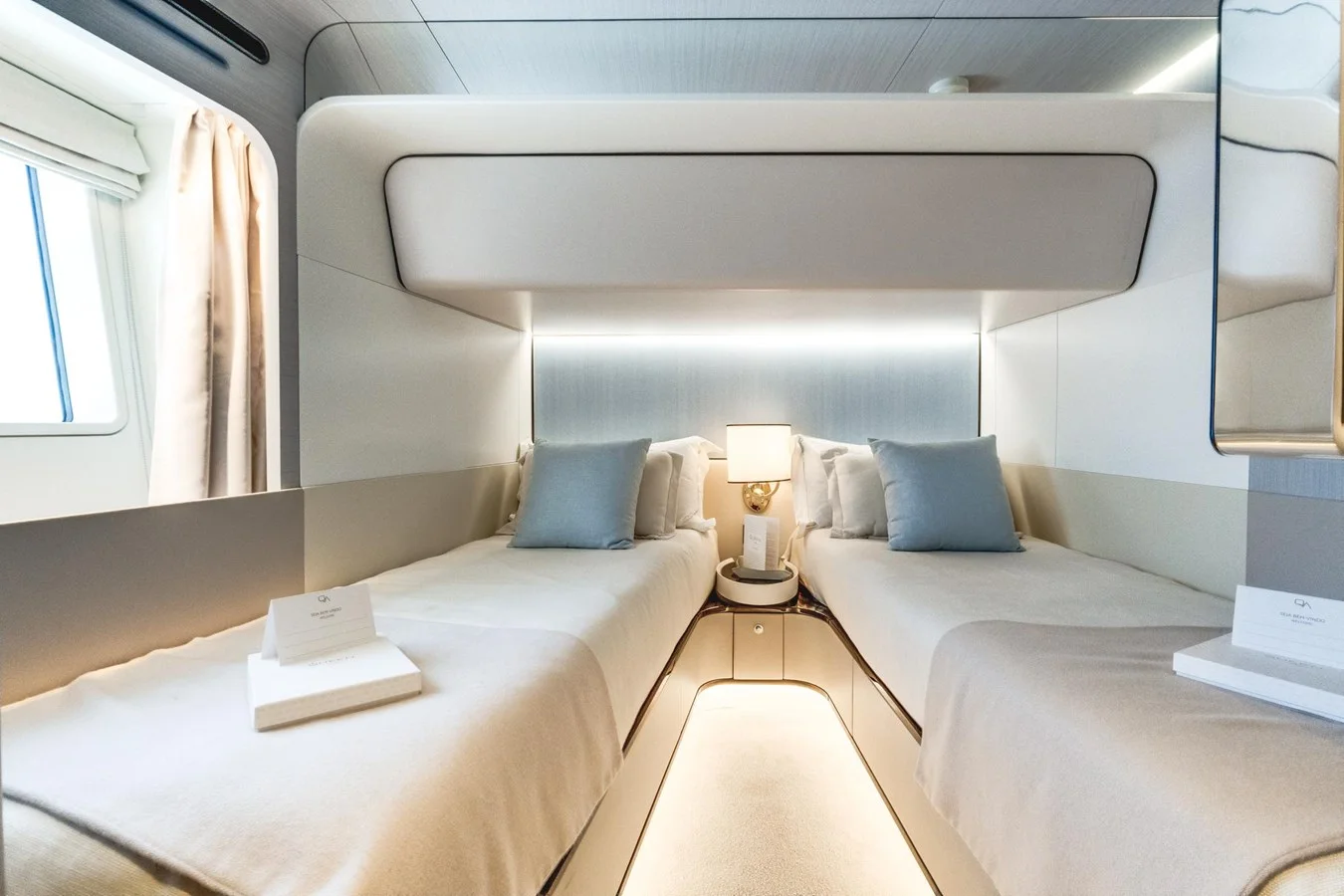

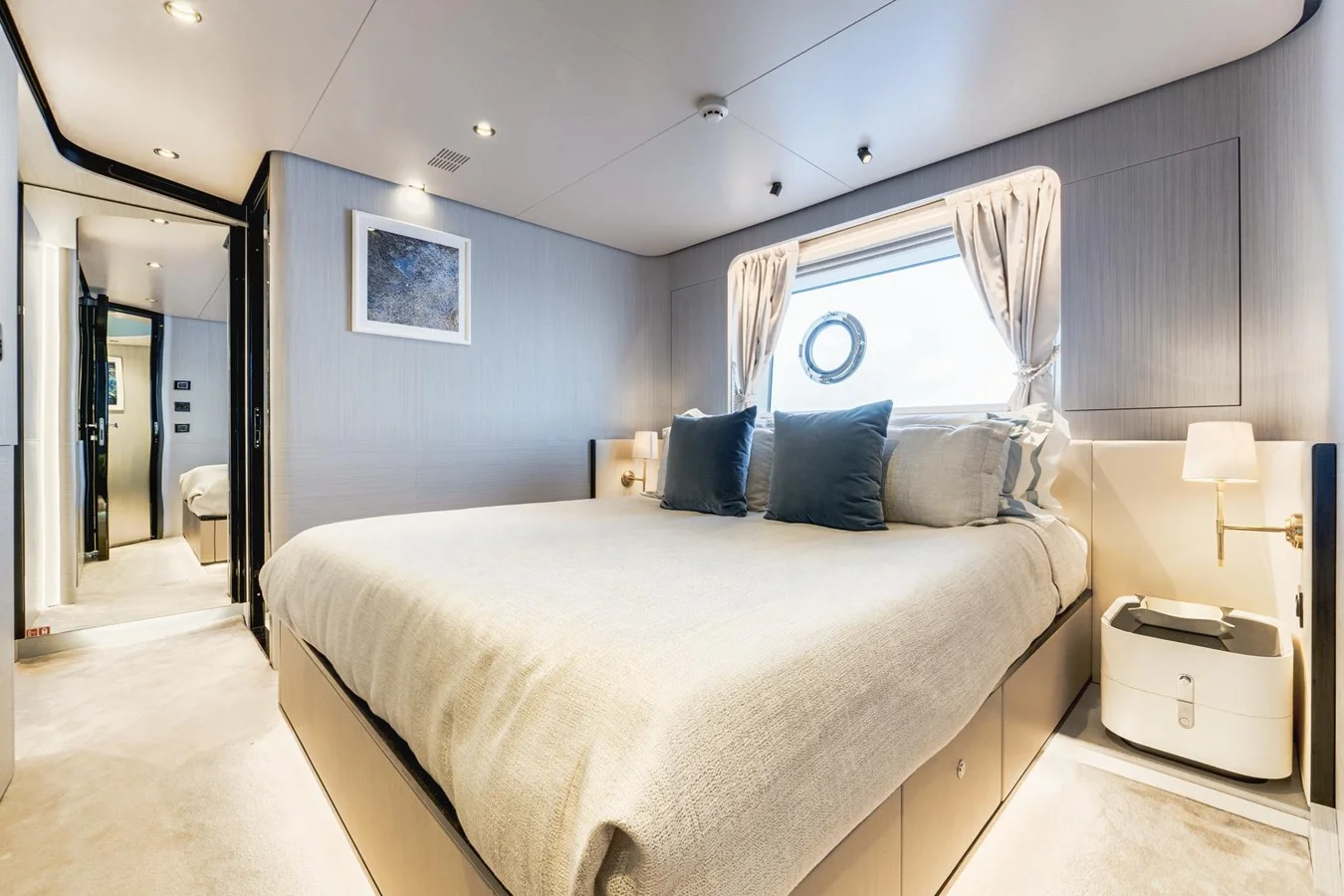

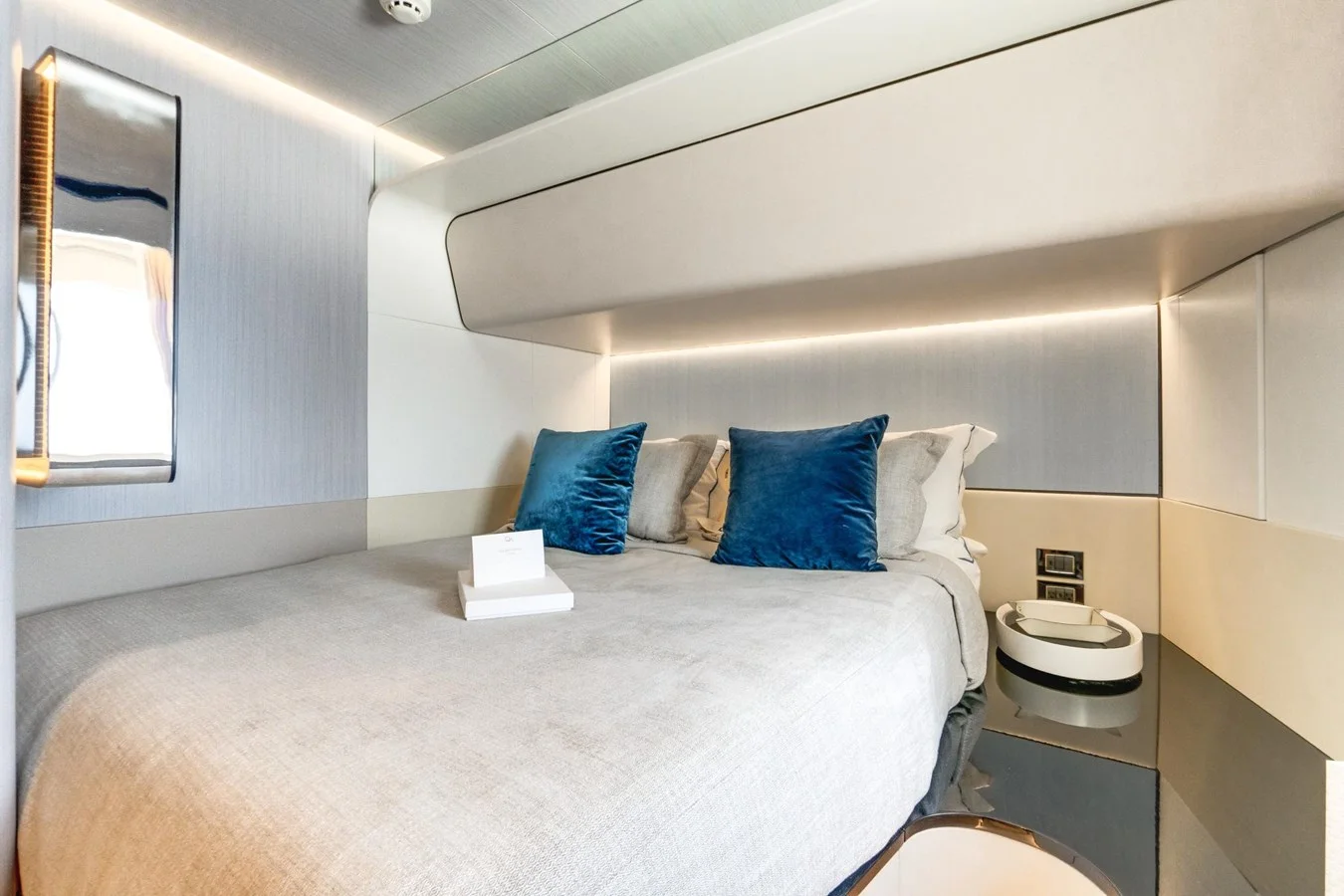

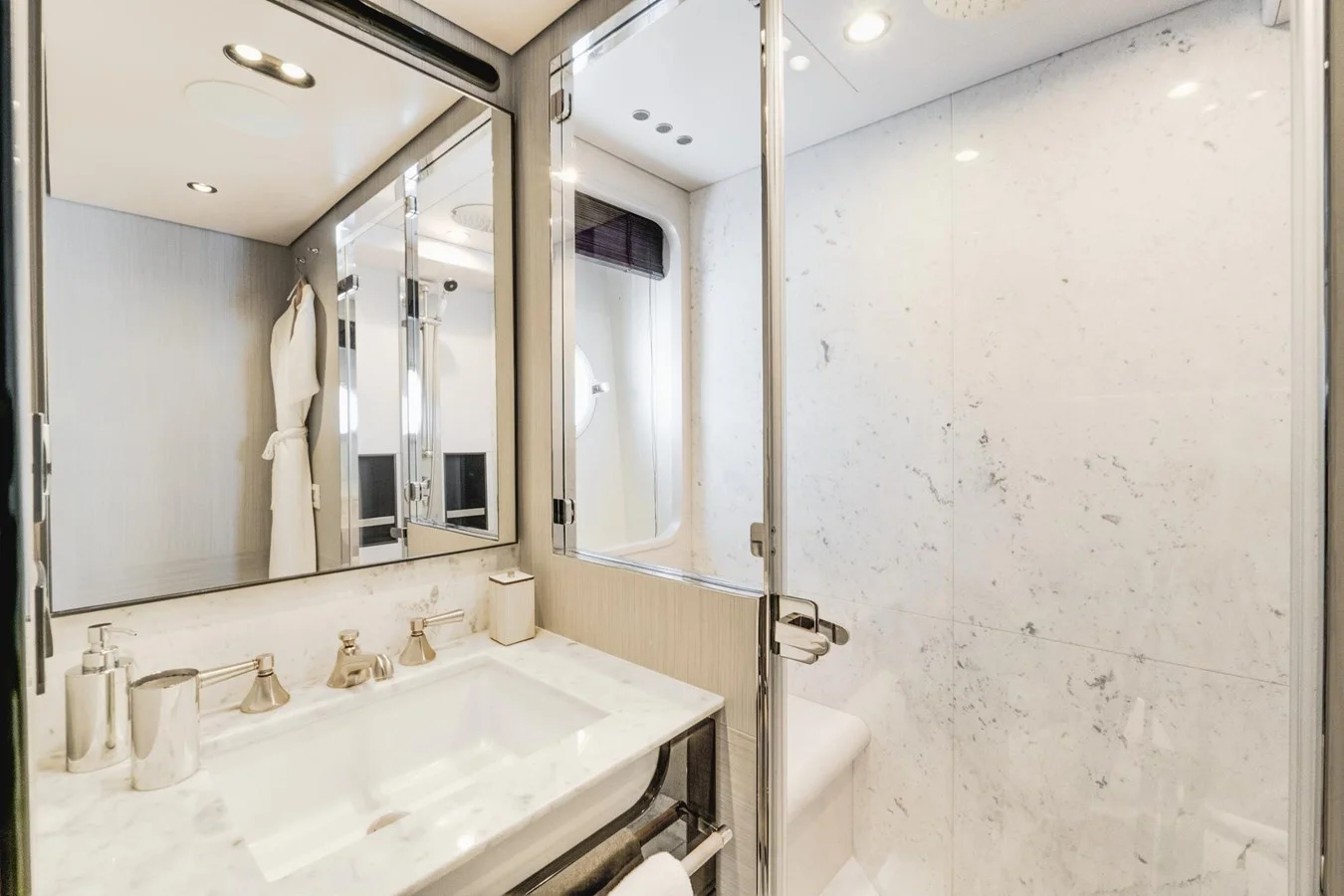

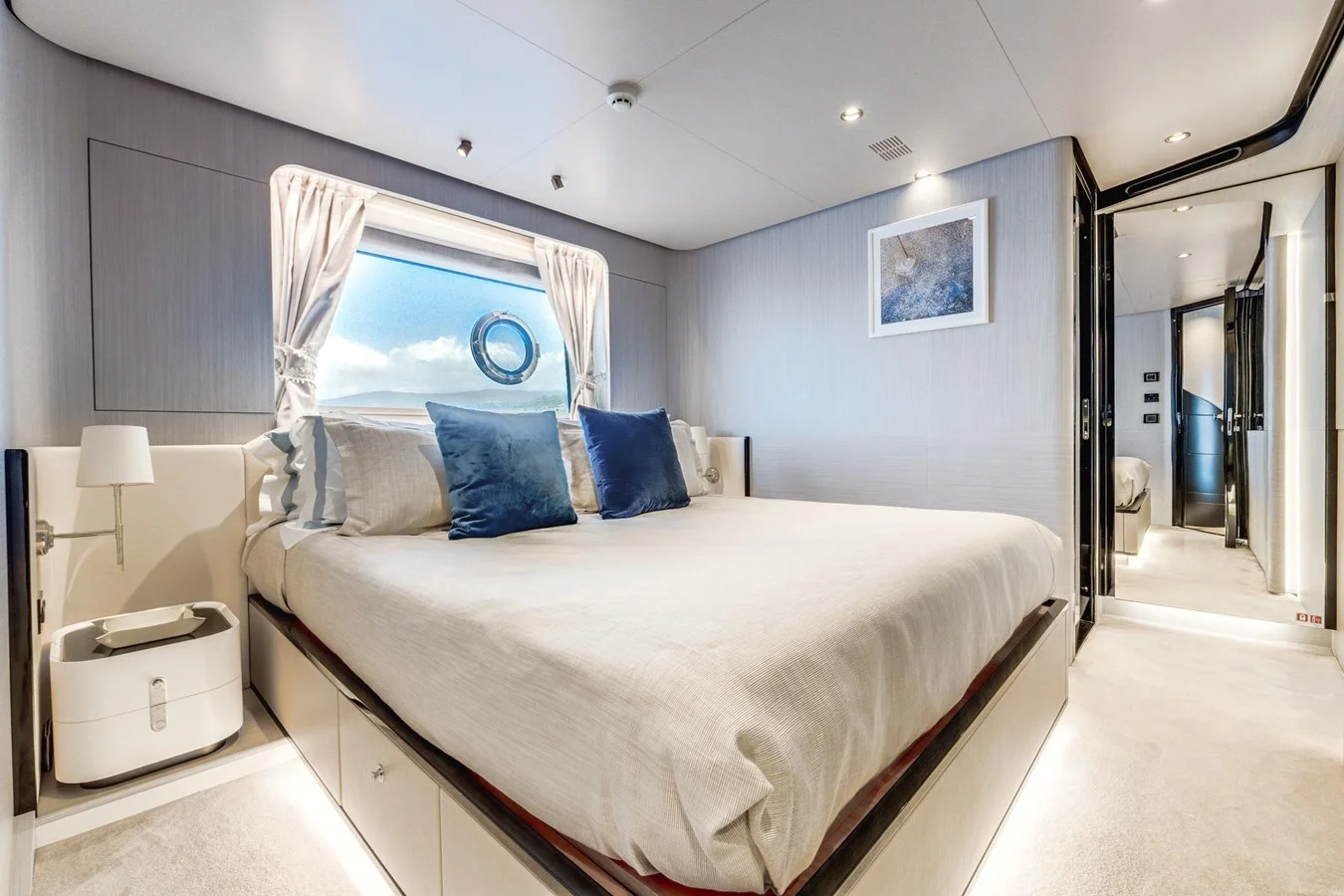

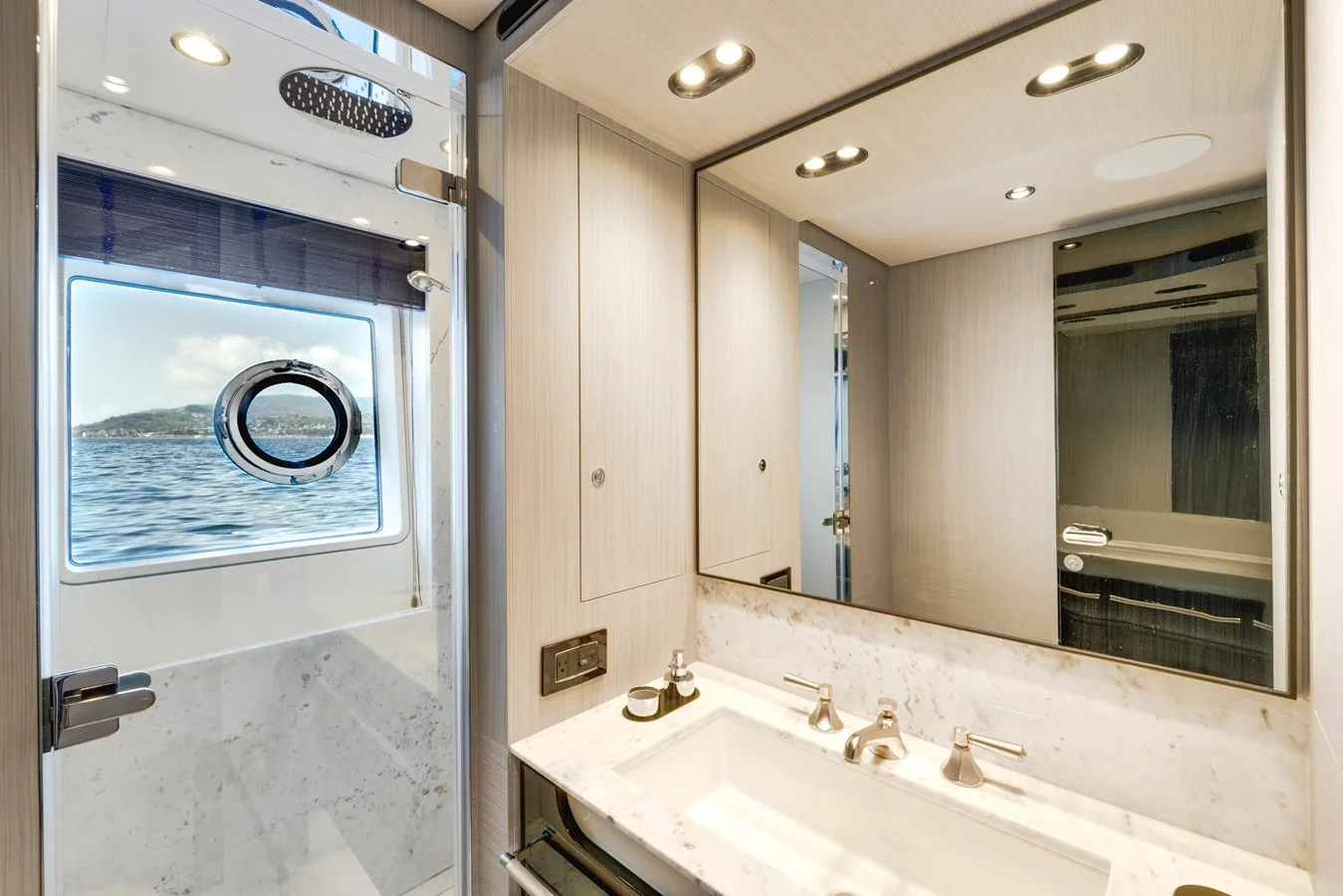

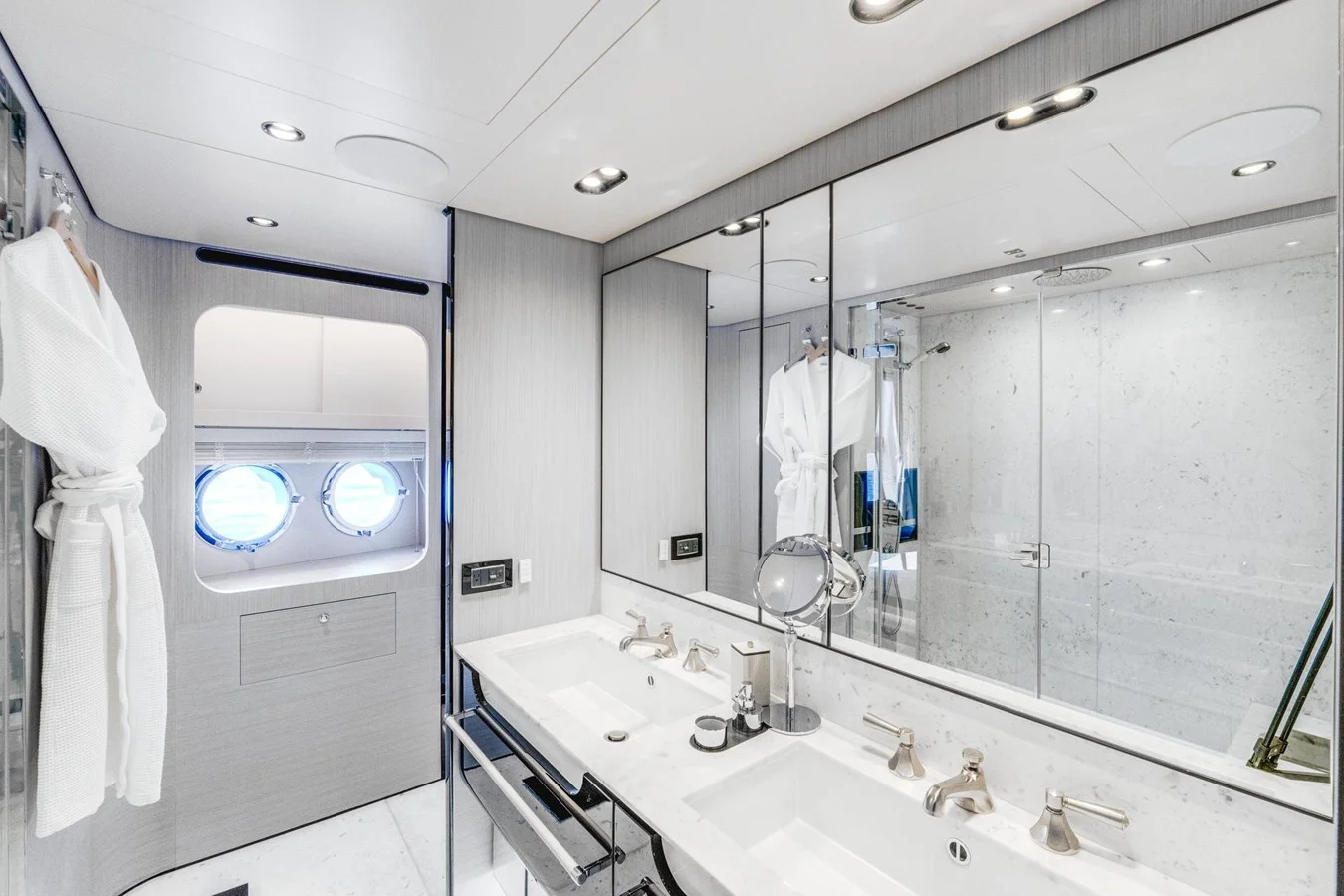

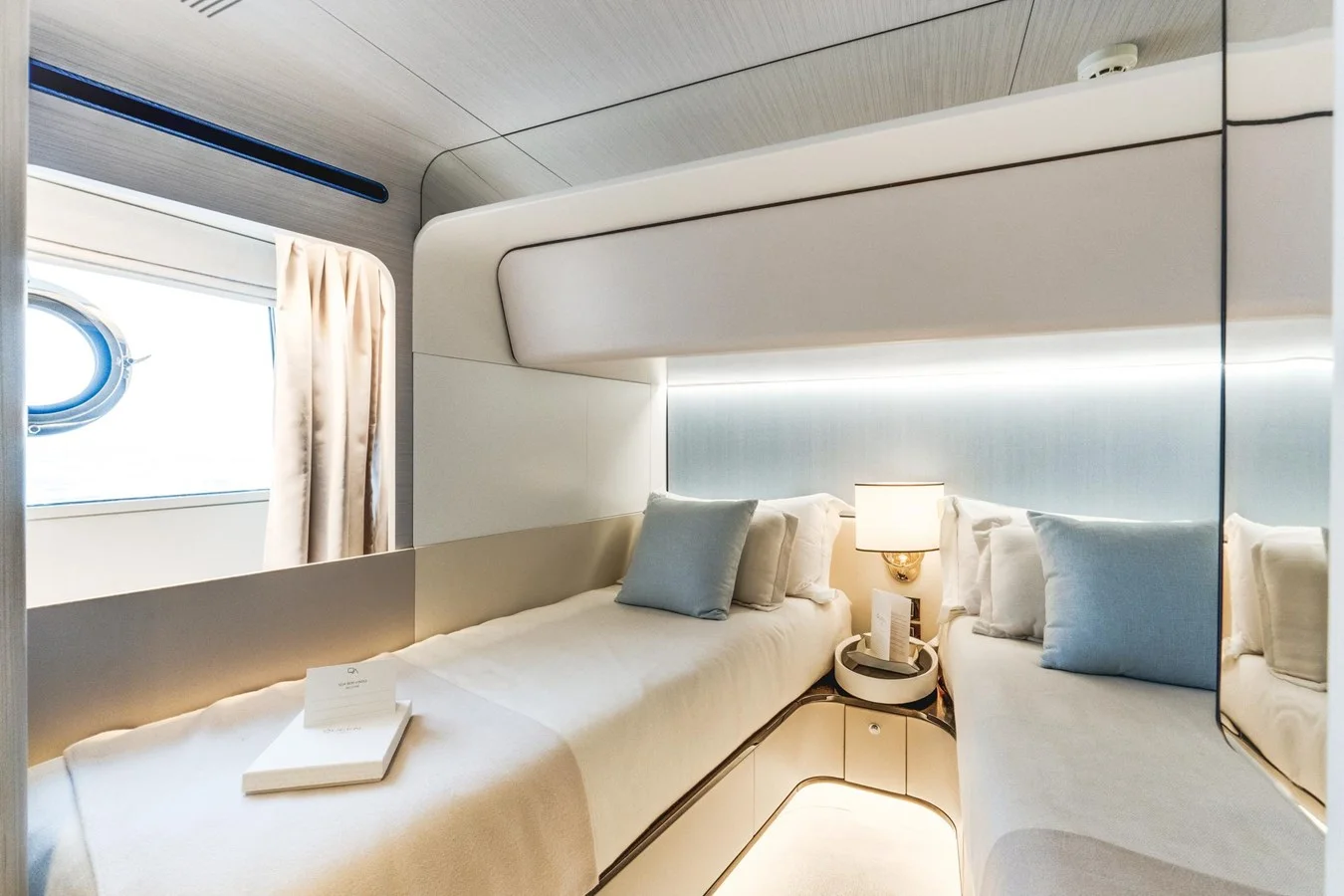

Designed for comfortable cruising and entertaining, she accommodates up to 10 guests in five luxurious suites, all with ensuite bathrooms, and carries up to four crew in separate quarters to ensure discreet, professional service and guest privacy.

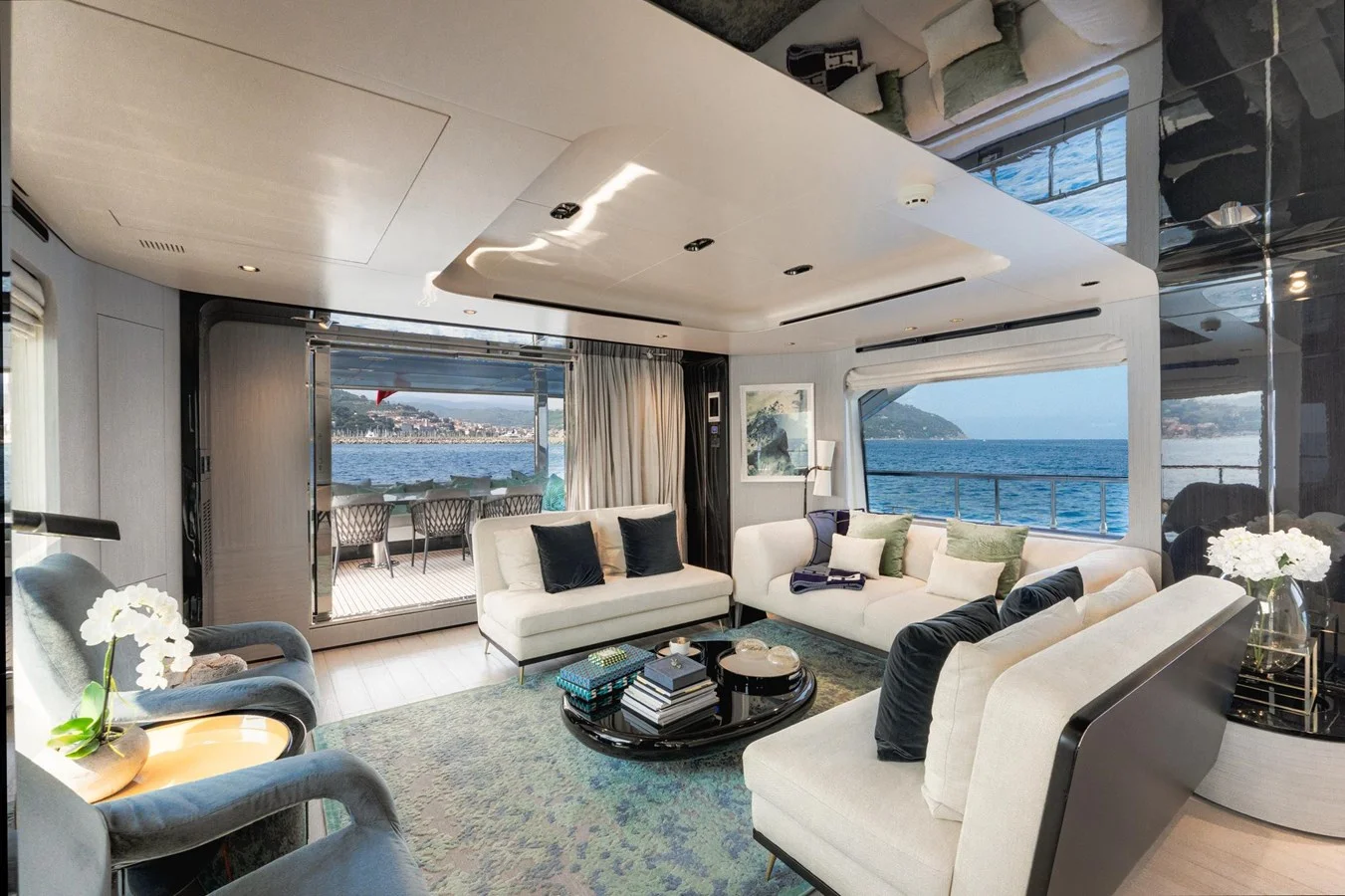

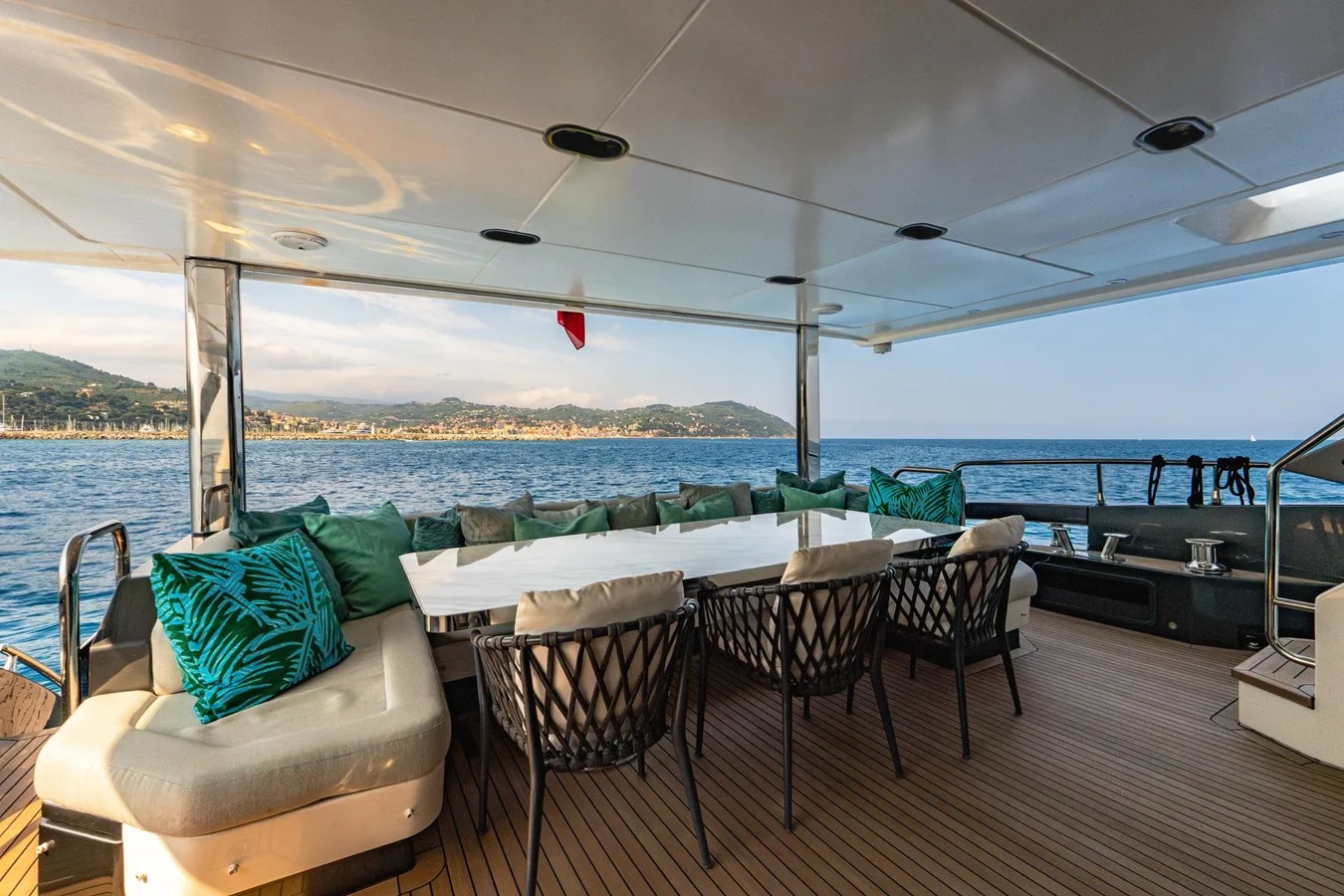

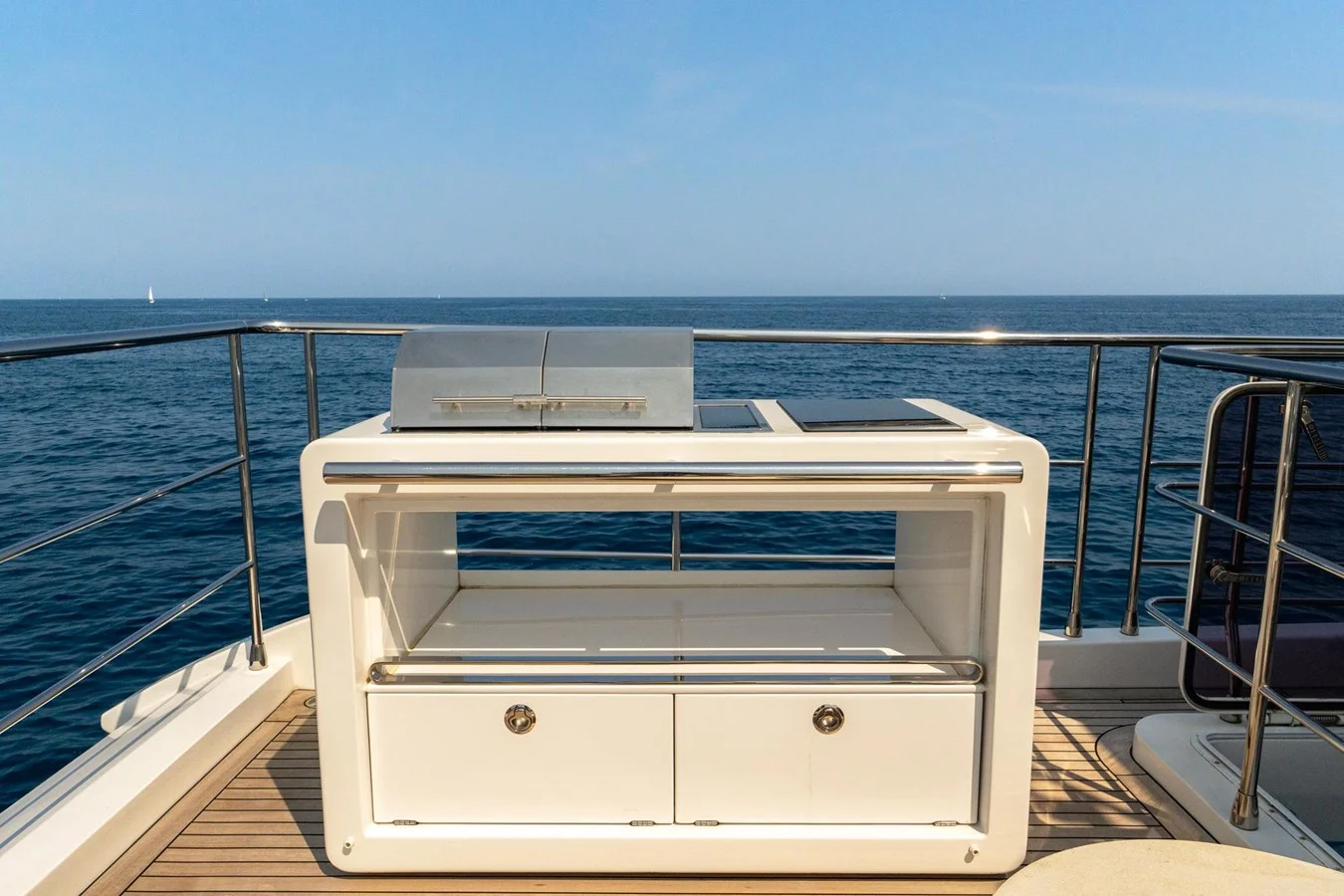

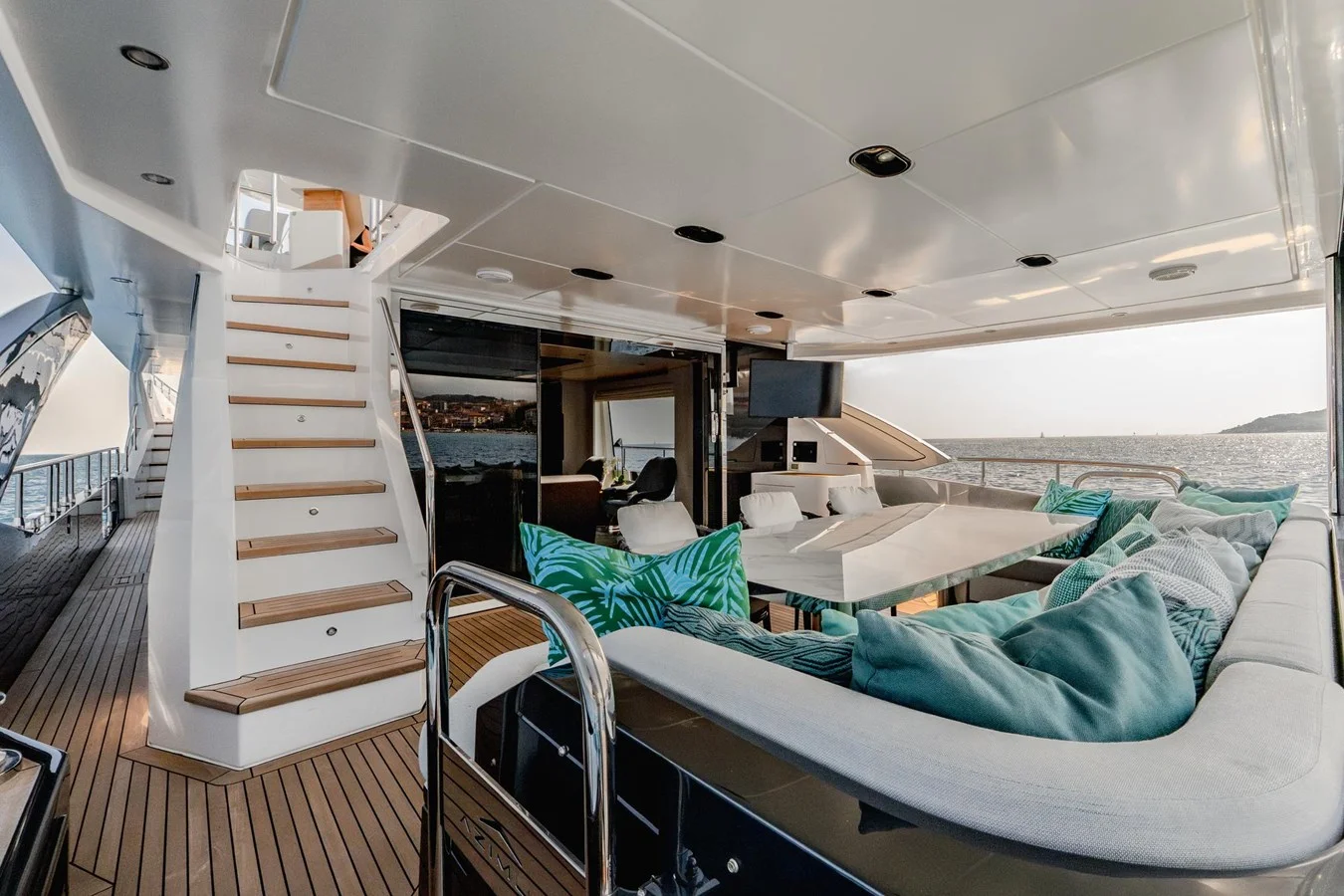

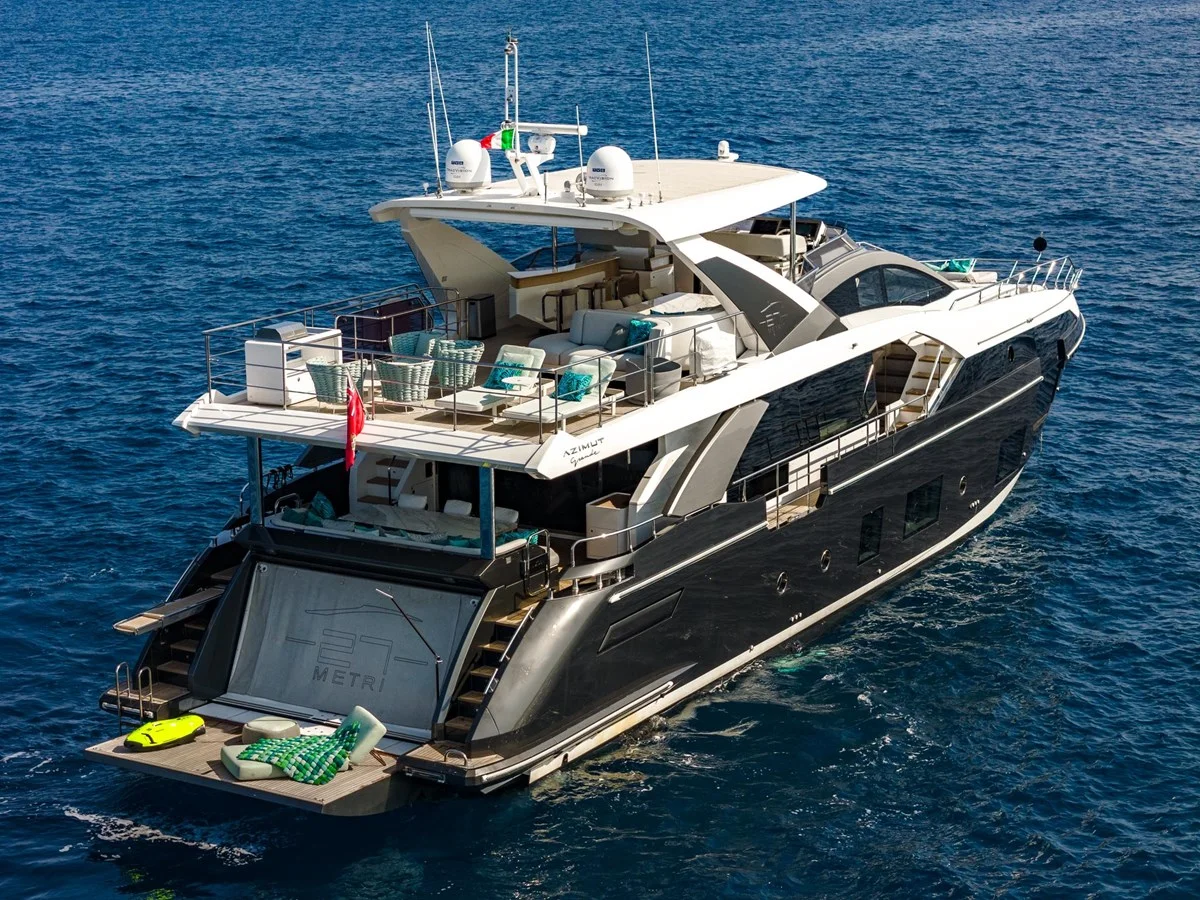

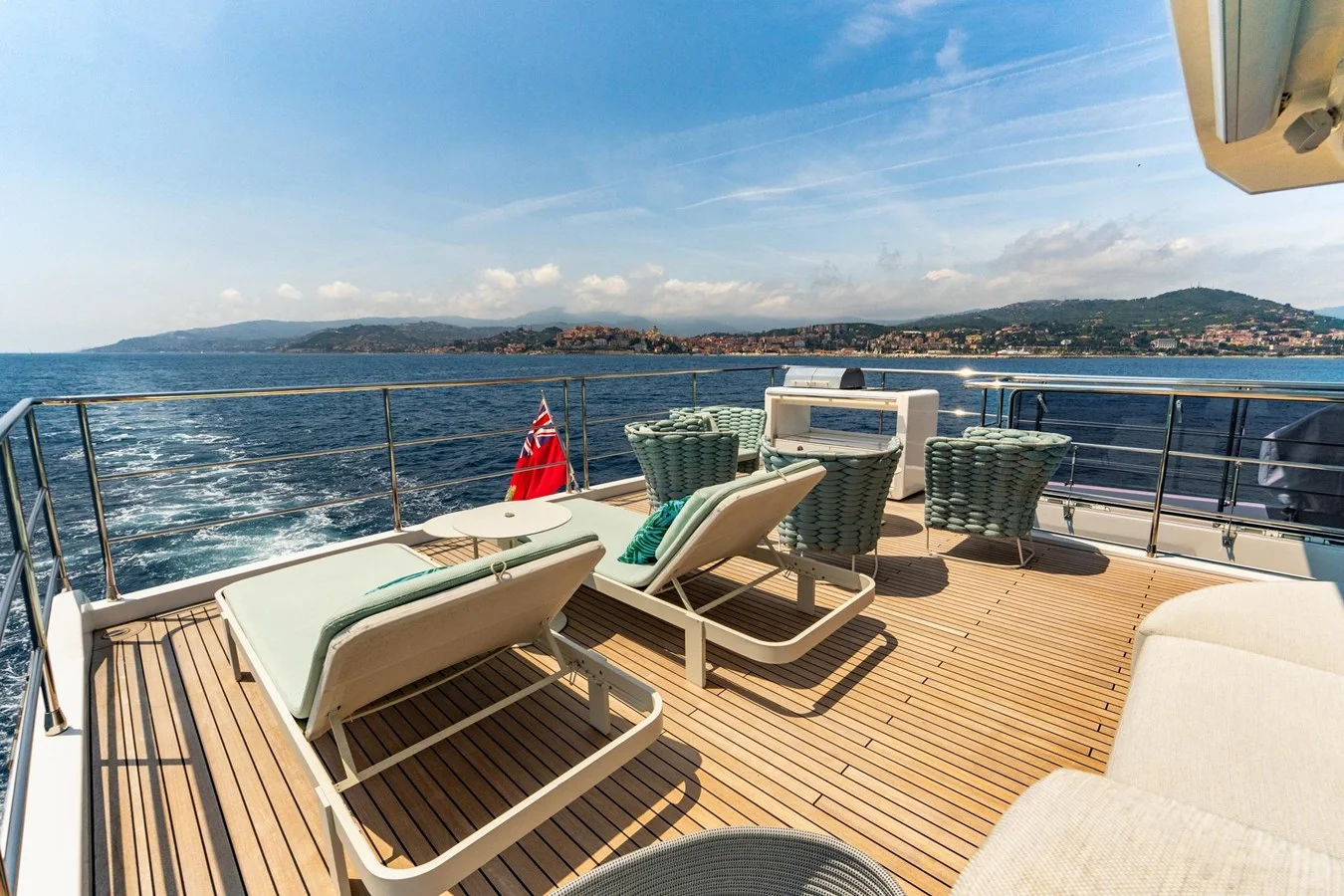

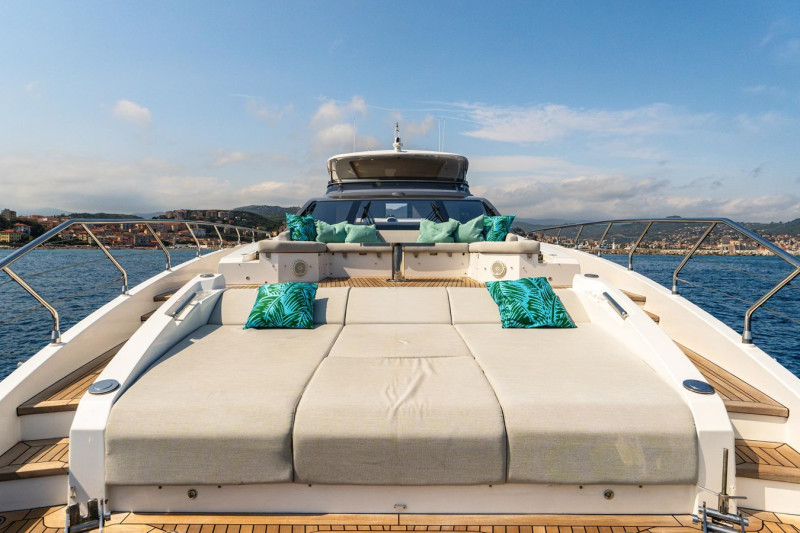

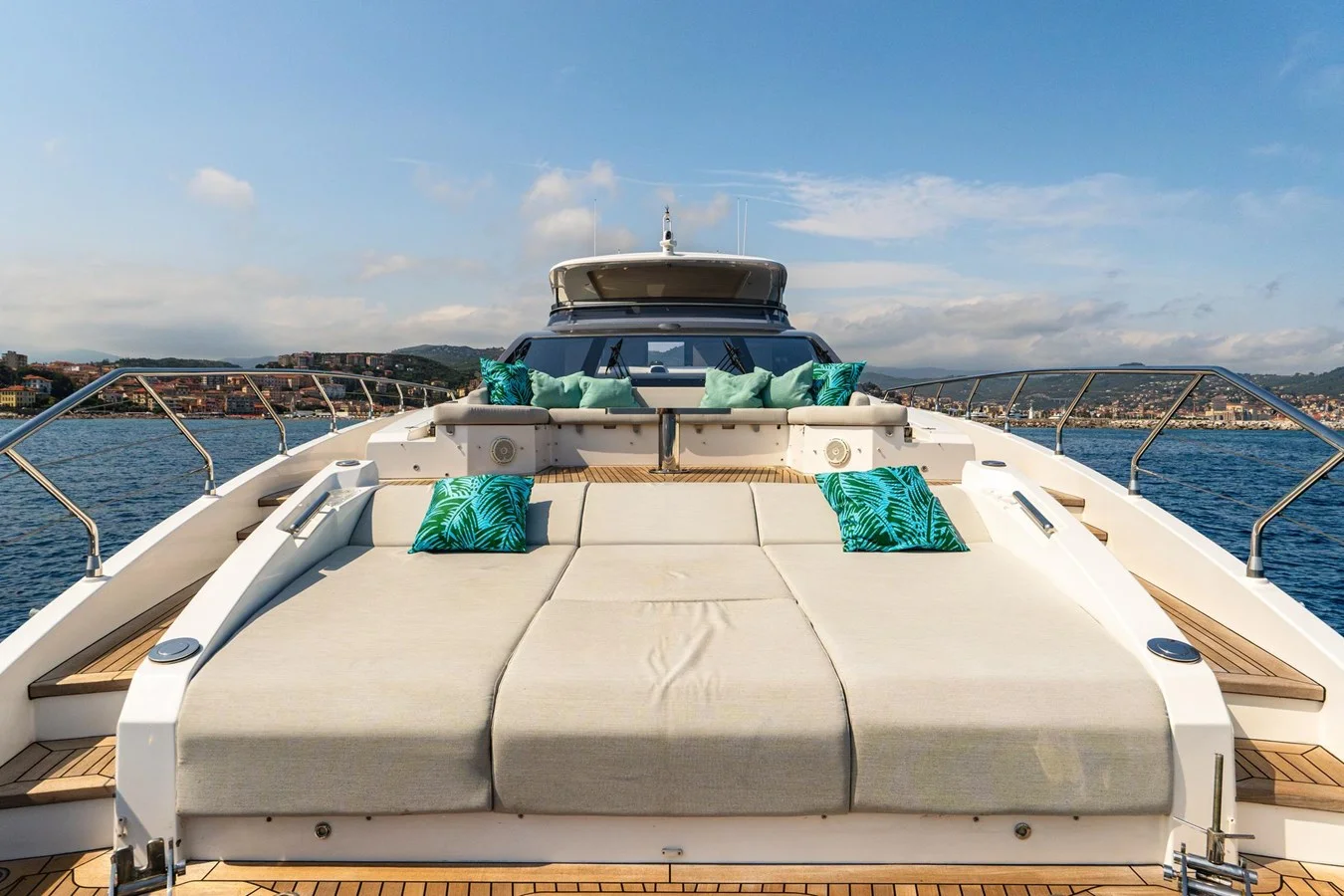

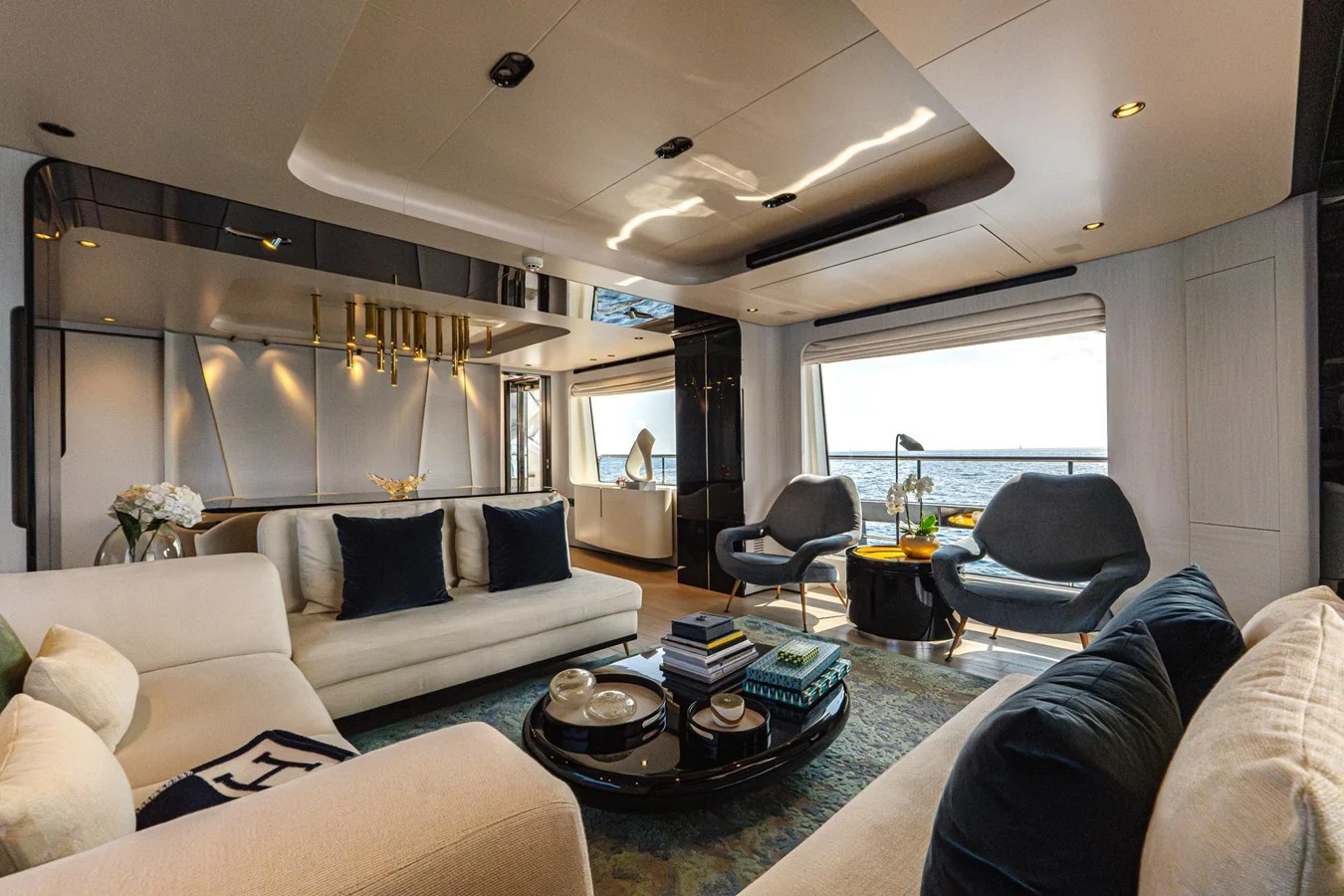

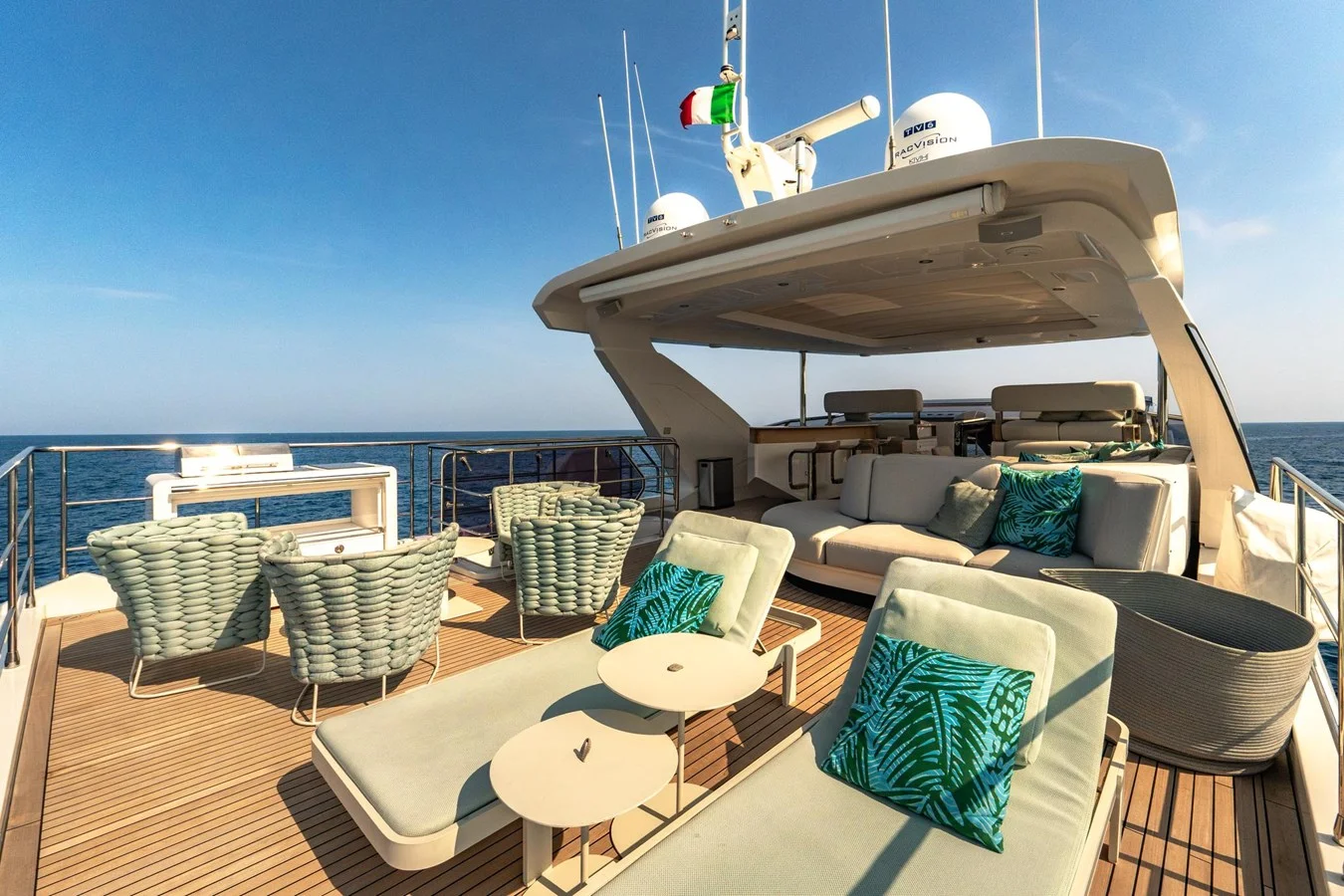

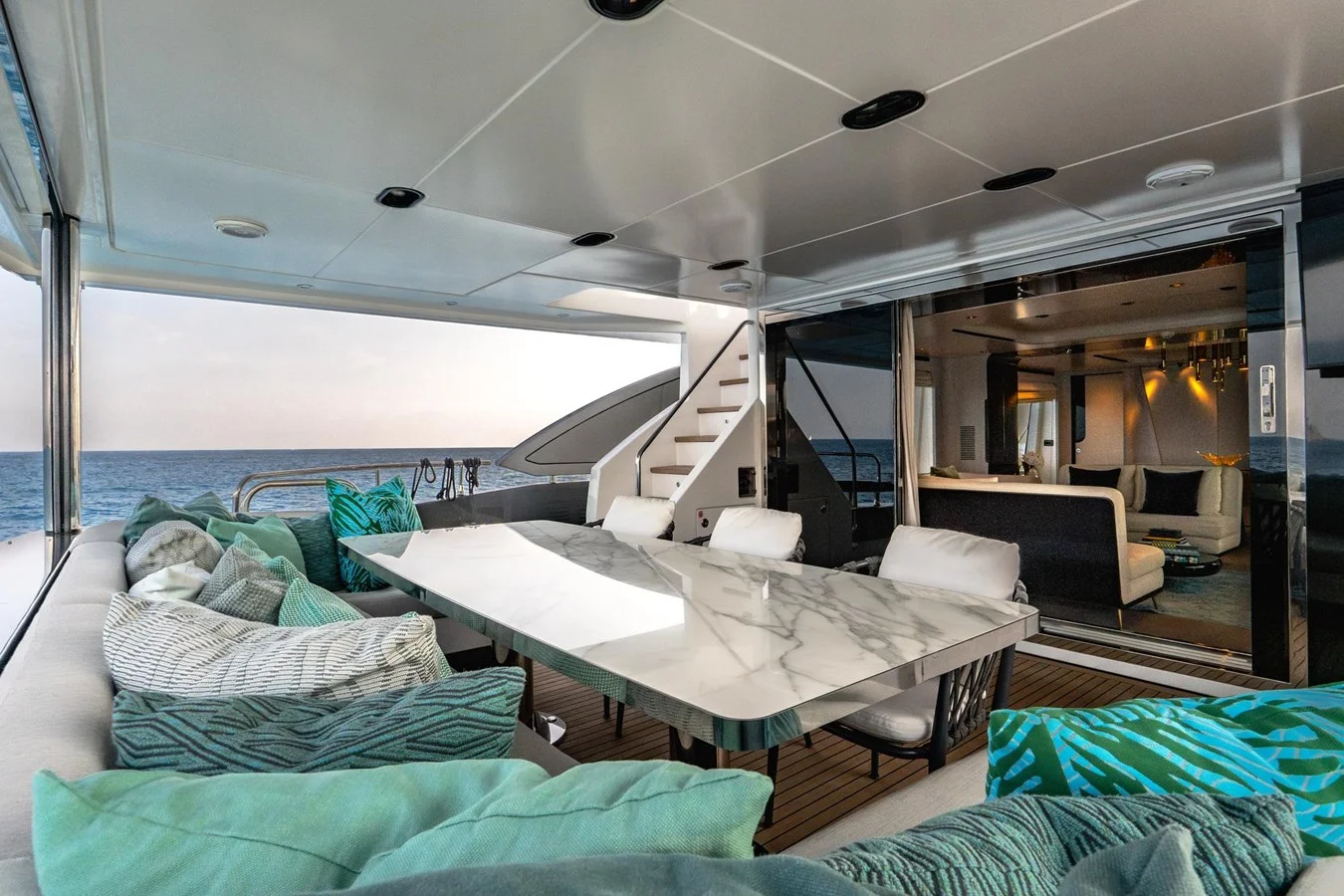

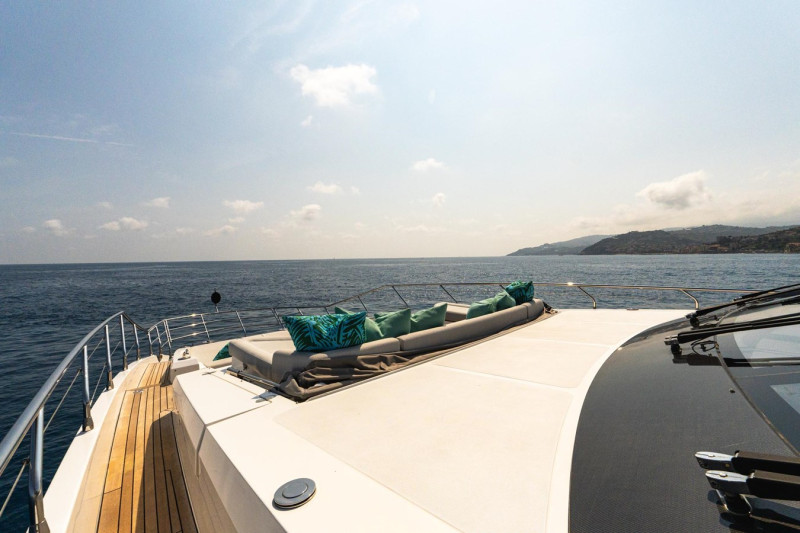

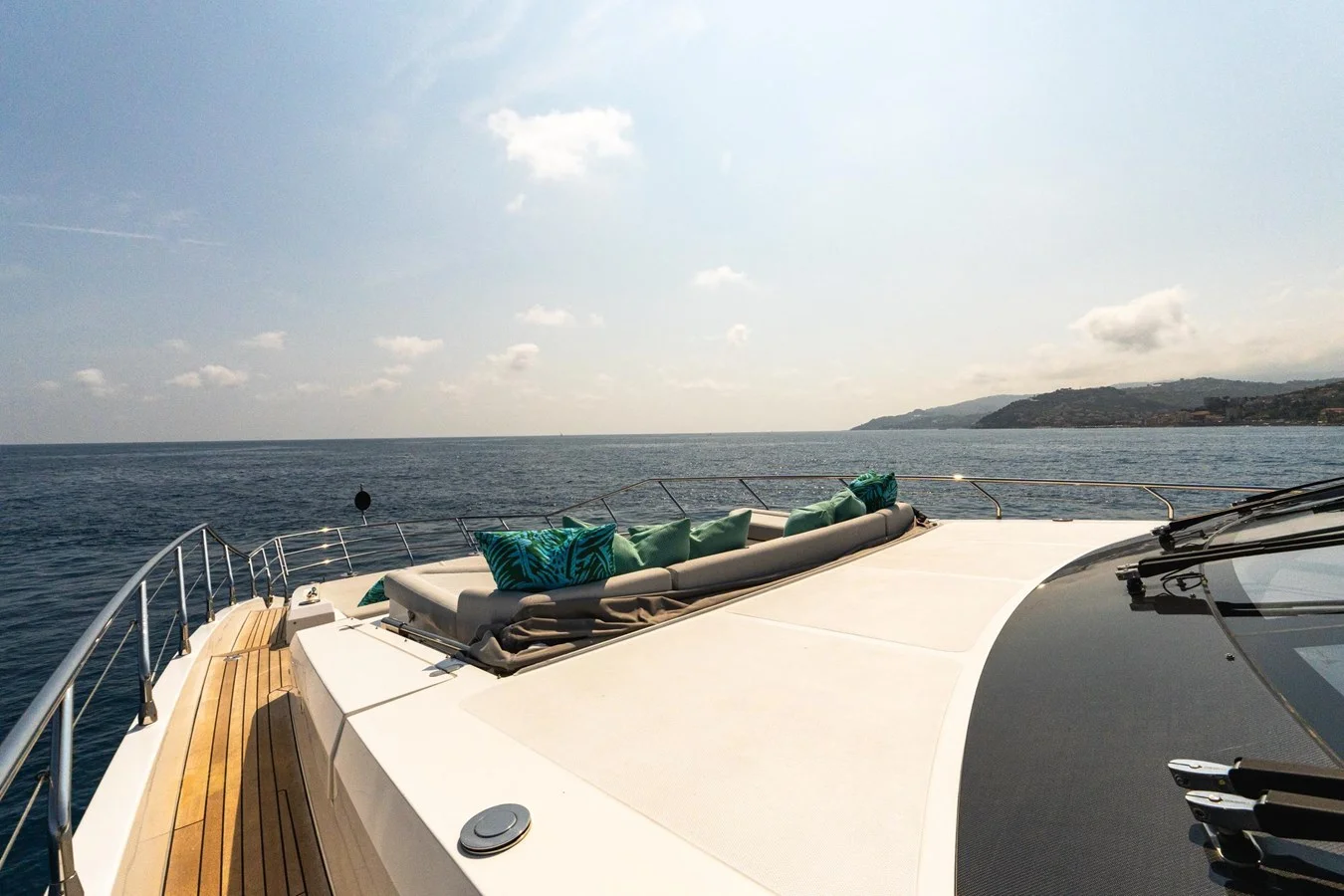

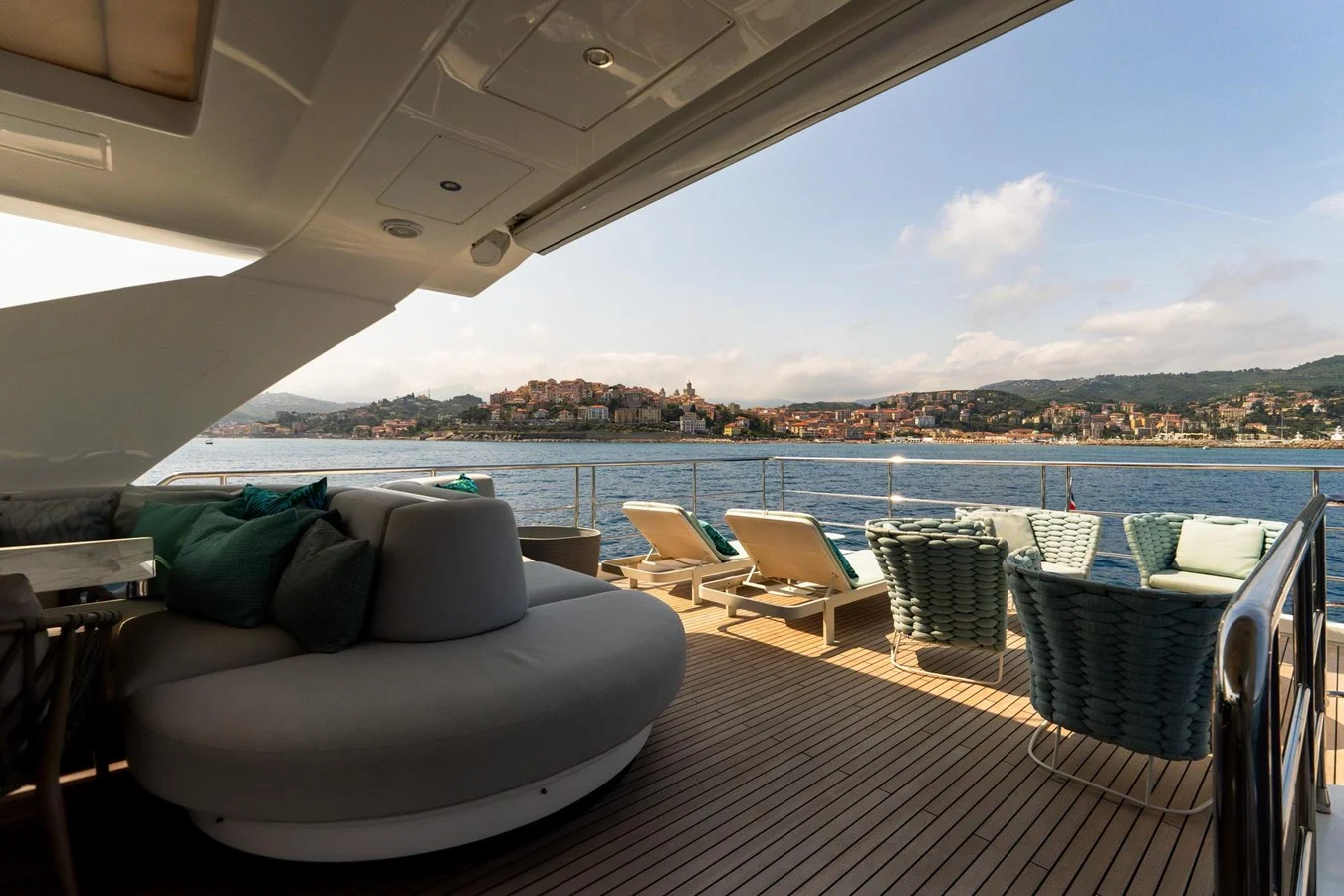

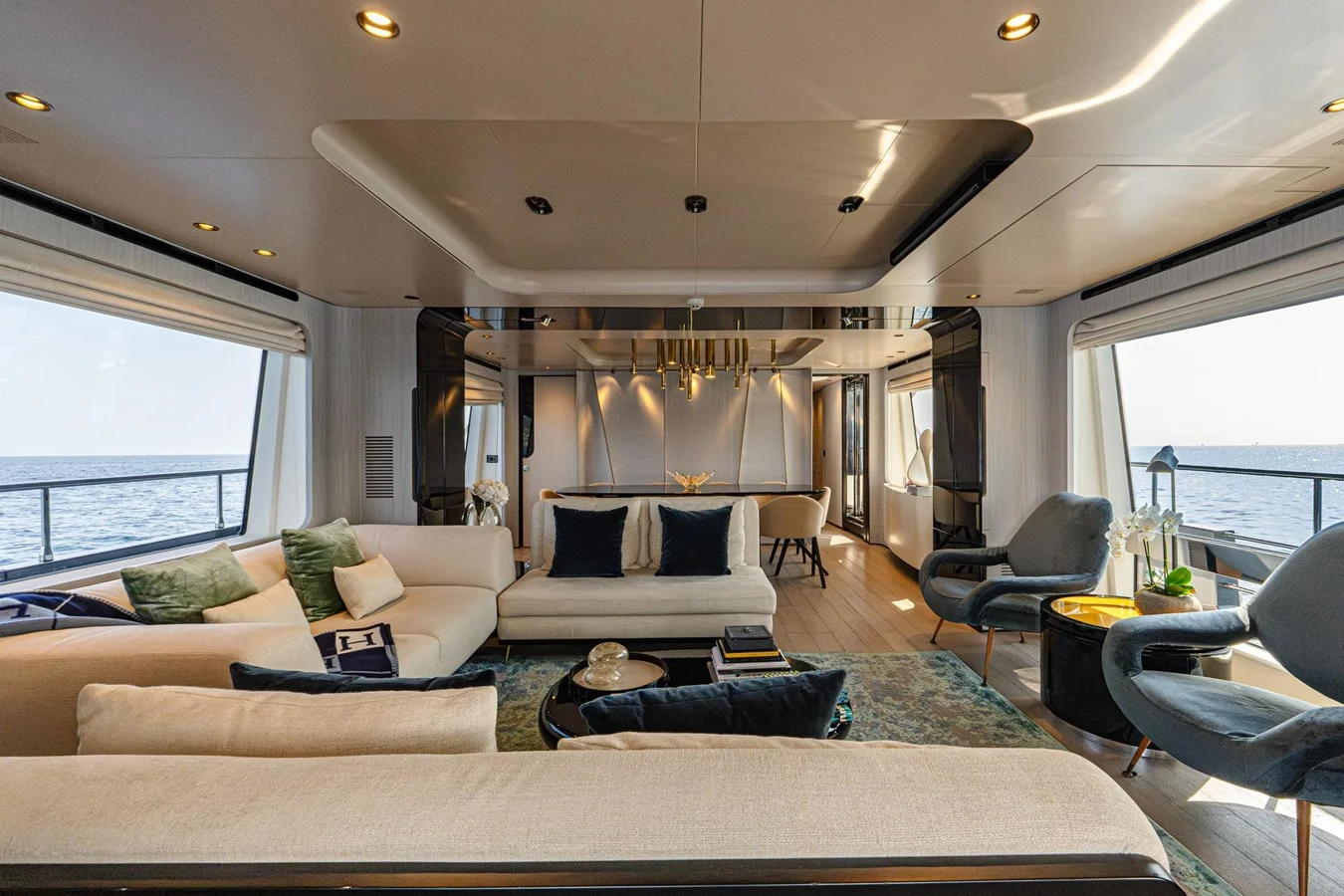

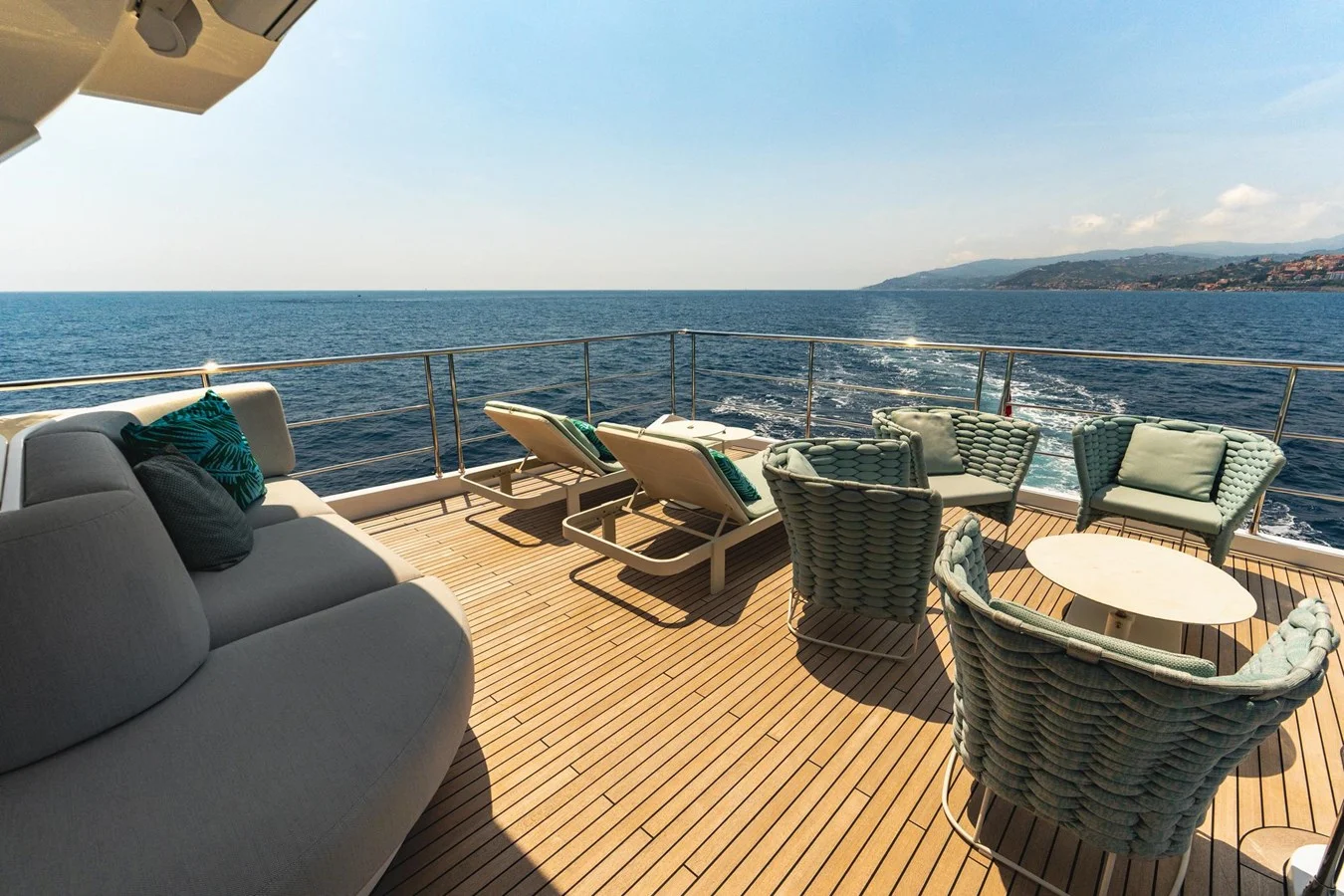

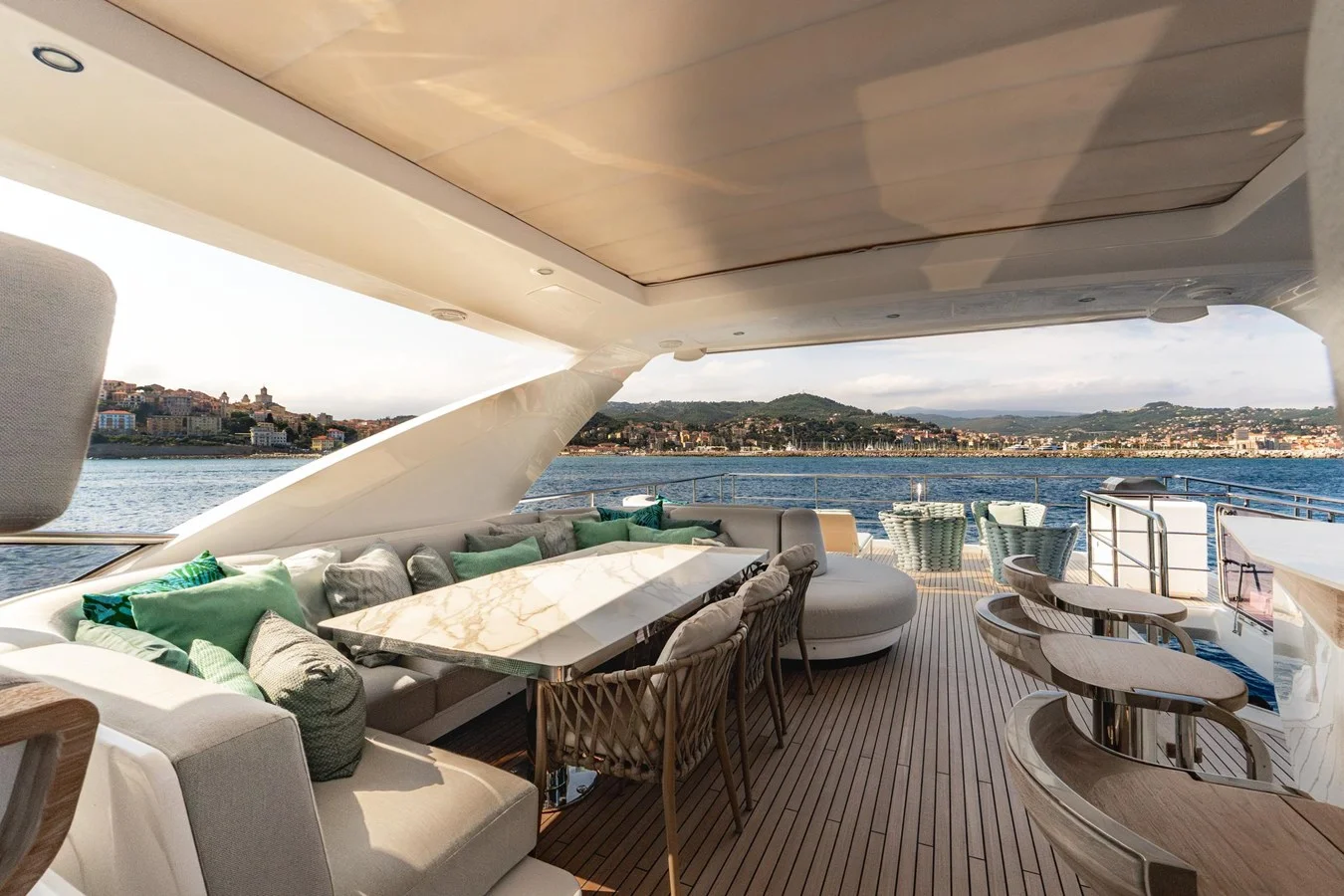

Large windows and clean, refined lines flood the yacht with natural light, while expansive outdoor areas elevate the onboard lifestyle. The flybridge offers panoramic views, generous lounging, and an alfresco dining area with a bar. The aft deck provides a welcoming setting for socialising, and the foredeck sun lounge offers ample seating and relaxation space.

Built in GRP with advanced systems and sound insulation for a quiet, comfortable ride, this Azimut Grande 27M is powered by twin MAN diesel engines (1,900hp each), cruising comfortably at 24 knots and reaching a top speed of 28 knots.

Key Features

Only privately used no charters at all and one owner since delivery
Very little use, only 1075 hours on main engines
Kept ashore during winter period
ANG power system frequency converter: allows the MY to plug in at any dock all over the world
Stabilizing Fins

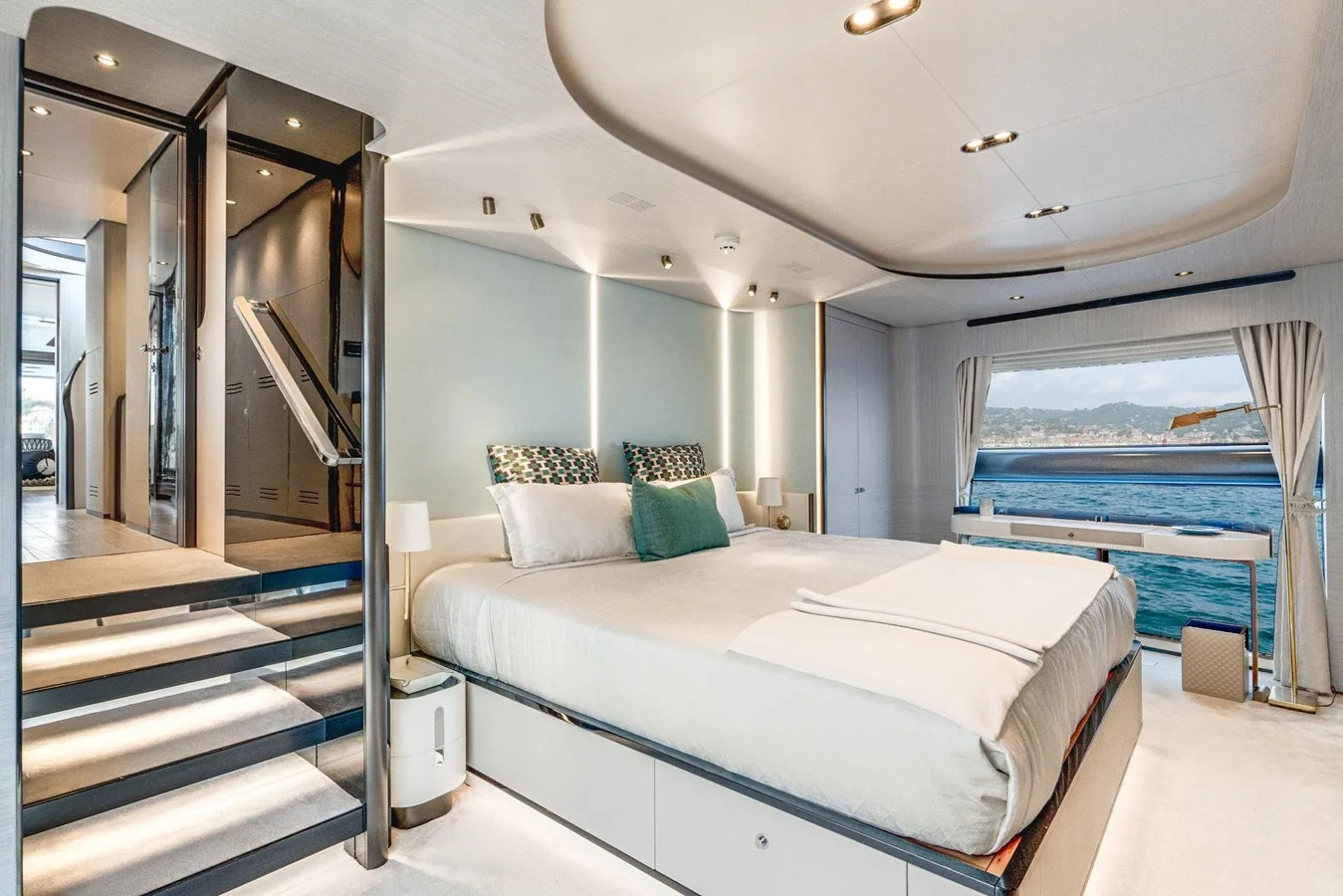

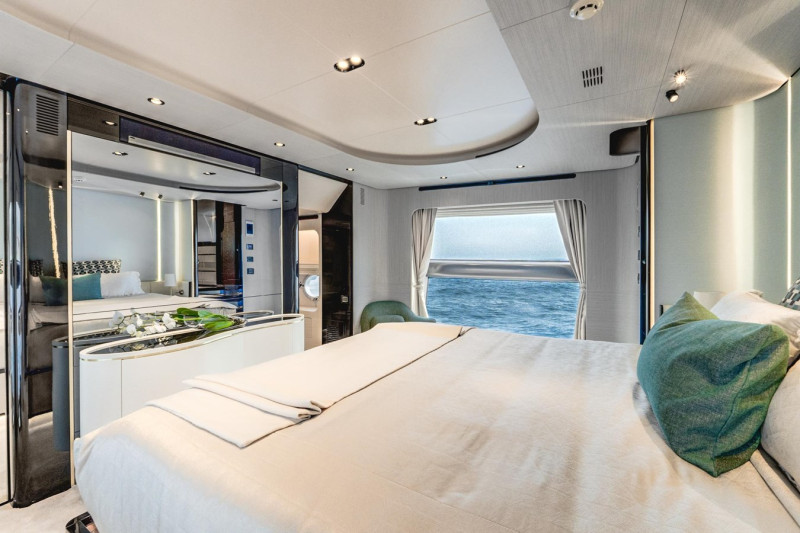

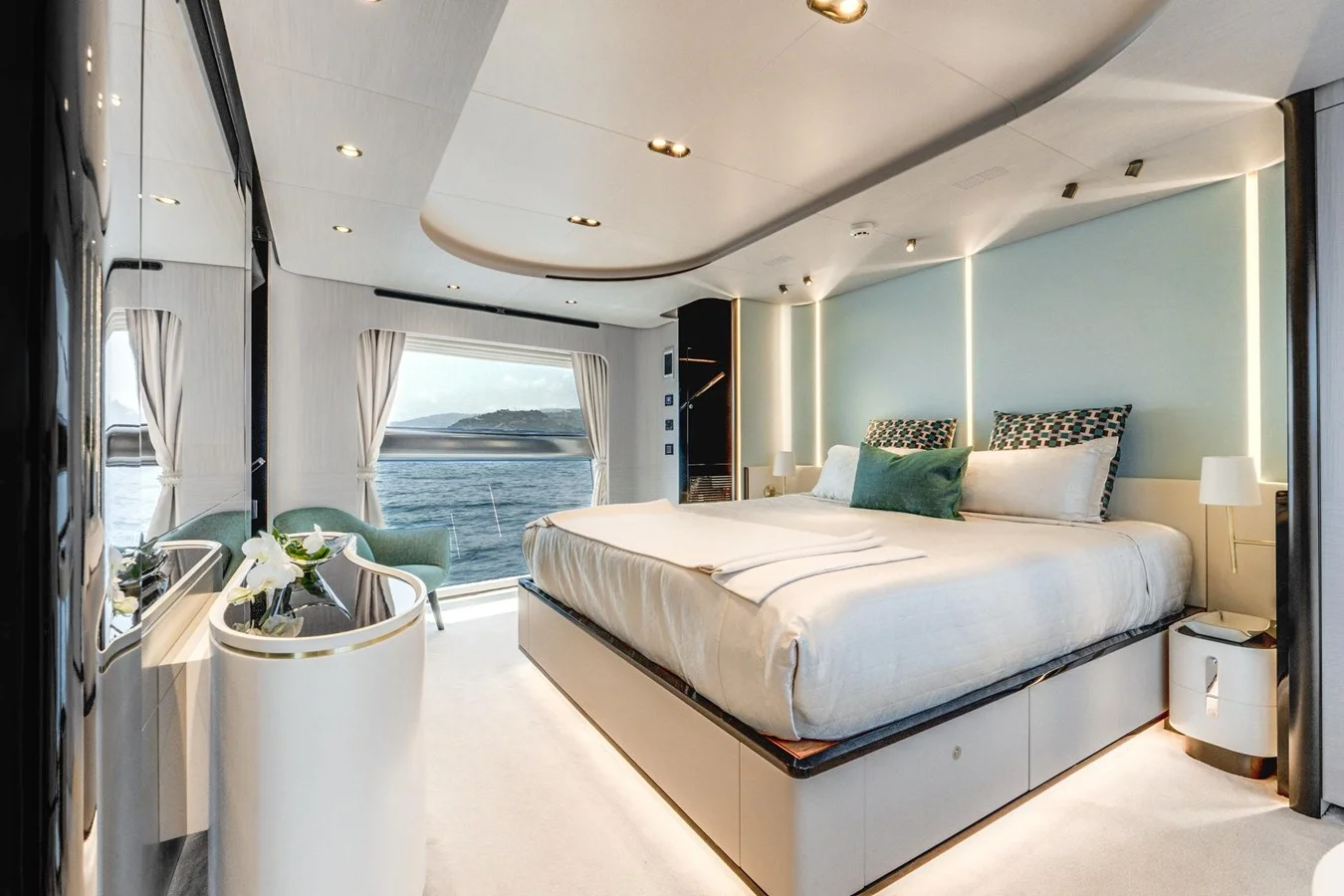

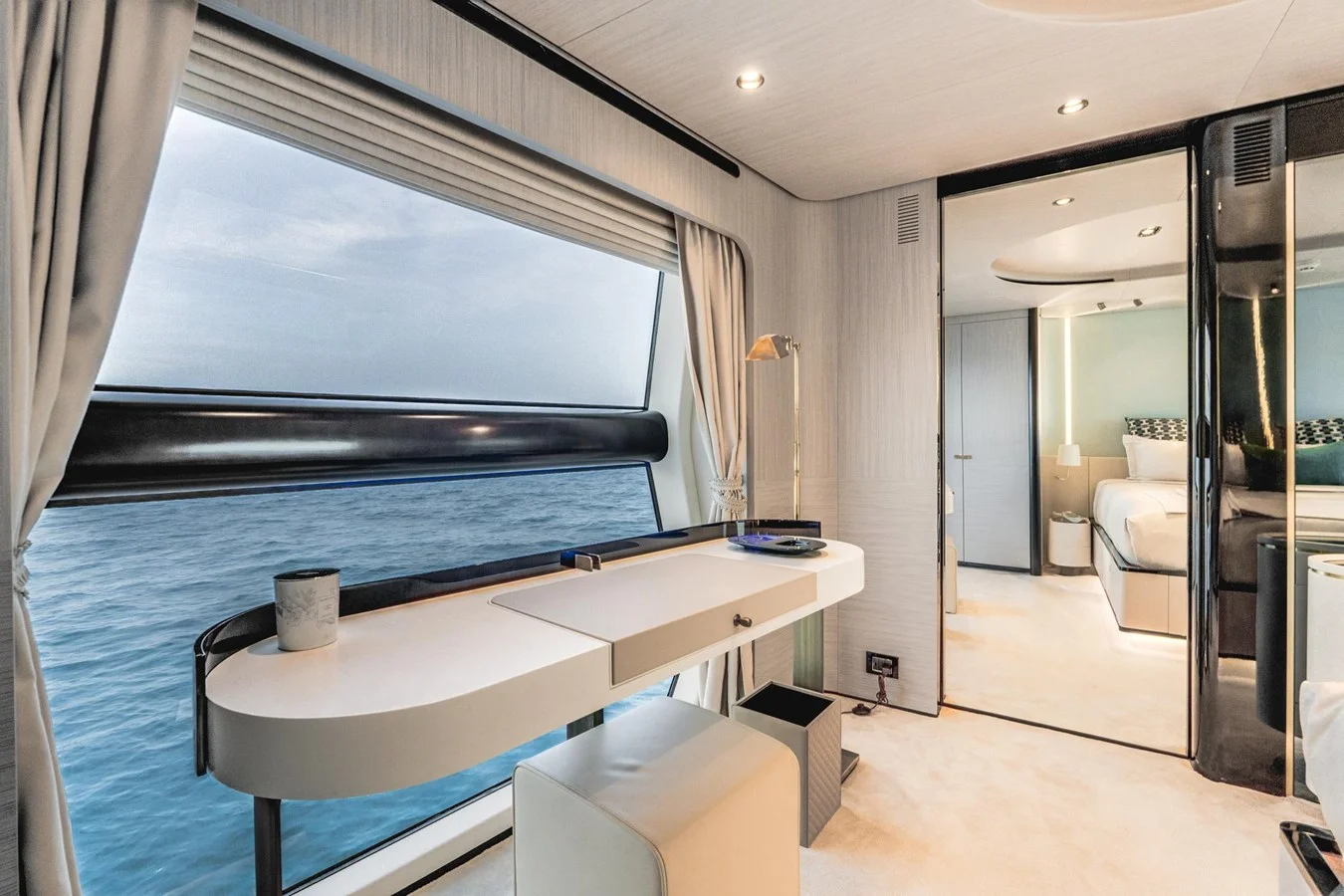

Staterooms (05) layout including a master stateroom on main deck
Free standing furnitures by Paola Lenti-Milano

Main Characteristics

TYPE: Motor Yacht
YEAR: 2019
FLAG: Cayman Island
LOA: 26.78m (87.1ft)
LH: 23.95m (78.7ft)
LWL: 22.62m (74.3ft)
BEAM: 6.59m (21.7ft)
DRAFT: 1.93m (6.4ft)
GROSS TONNAGE: 145
DISPLACEMENT: Full Load – 93 Ton / Dry Load – 75.9 Ton

Capacities

SPEED

Cruising: 24 Knots
Maximum: 28 Knots
Economical: 11 Knots

FUEL CONSUMPTION

@ Cruising Speed 580 litres/hr
@ Maximum Speed 700 litres/hr
@ Economical Speed 100 litres/hr

RANGE

@ Cruising Speed 360 nm
@ Maximum Speed 320 nm
@ Economical Speed 880 nm

FUEL CAPACITY: 9,500 litres / 2,509 US gallons

WATER CAPACITY: 2,000 litres / 528 US gallons

BLACK WATER CAPACITY: 850 litres / 224.5 US gallons

GREY WATER CAPACITY: 850 litres / 224.5 US gallons

Machinery

ENGINES: 2x MAN 1900HP
ENGINES MODEL: V12-1900 TIER III
REDUCTION GEAR: ZF – 3050V – 3:1
PROPULSION: 5-blades NiBrAl
TRANSMISSION: Shaft line mechanical seal MTM900
STEERING SYTEM: Stainless steel rudders
FUEL TYPE: Diesel
FUEL FILTRATION SYSTEM: Racor filters
BOW THRUSTER: CMC BTM30H hydraulic
STERN THRUSTER: CMC hydraulic
STABILIZERS: CMC
AIR CONDITIONING: 180,000 BTU
WATERMAKER: Idromar 130 litres/hr

Electrical

GENERATORS: 2x 29kW – 60Hz
ELECTRICITY: 110V – 60Hz / 24V / 12V
POWER CONVERTER: 2x ASEA
BATTERIES CHARGER:
2x Mastervolt 80 Ah (service batteries)
1x Mastervolt 30 Ah (engine batteries)
1x Mastervolt 10 Ah (generator batteries)

BATTERIES

Service Batteries: 10x 90 Ah – 12V DC
Engines Starter: 6x 90 Ah – 12V DC
Generator Batteries: 2x 90 Ah – 12V DC

Electronics

VHF: 2x Simrad RS90
INTERPHONE: Yes
ANTENNA SAT: KVH TV6
WI-FI: LTE router with 4 bonding radios
AUTOPILOT: Simrad IS40 with Simrad OP10 keyboard
GPS: Simrad

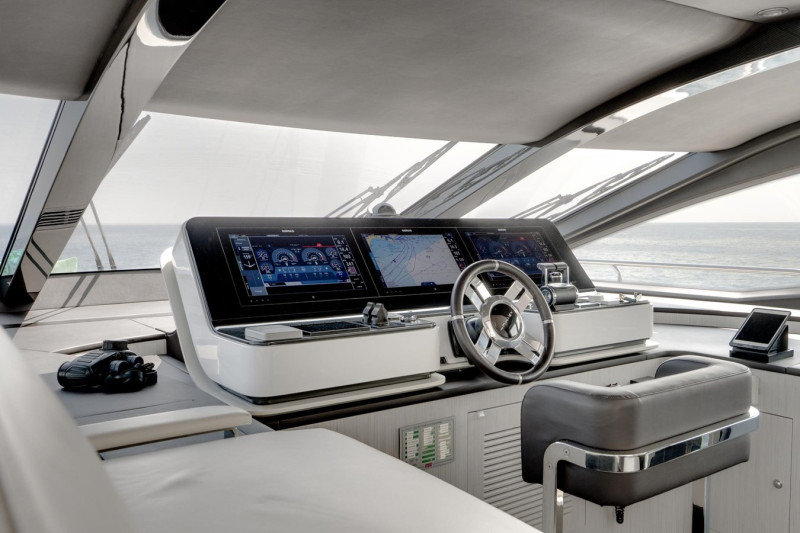

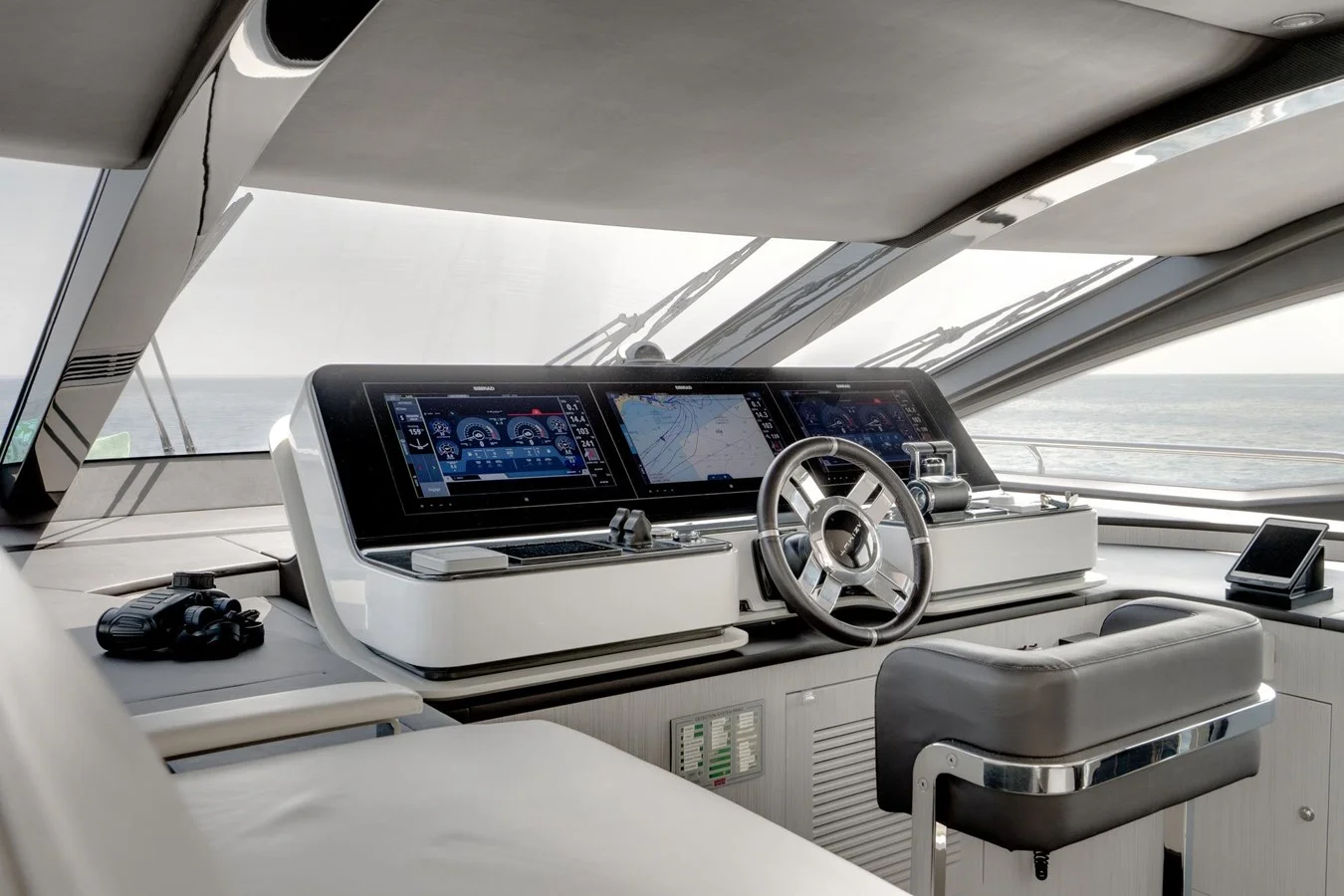

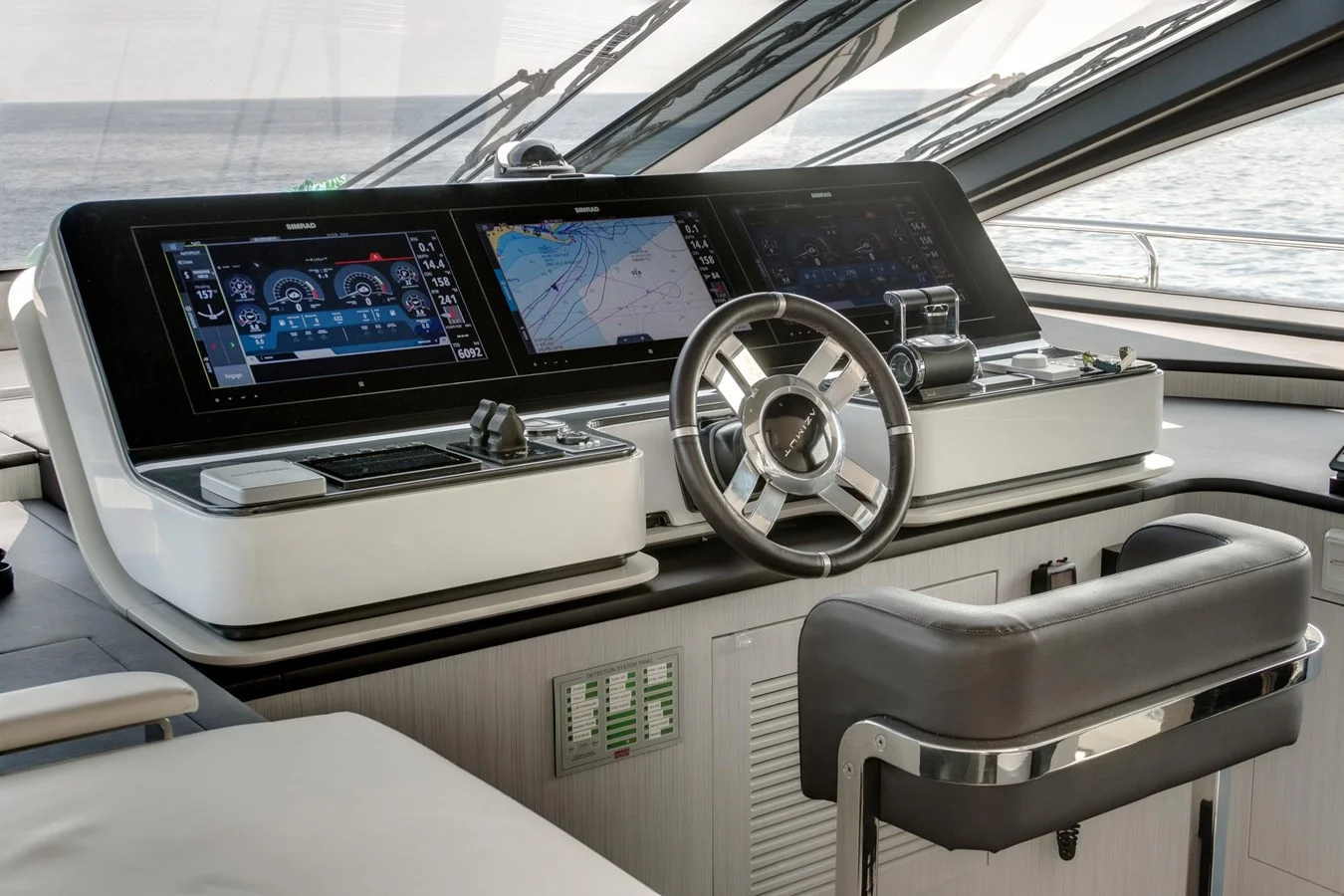

CHART PLOTTER: 4x Simrad NSS-16 Evo 2 multifunctional displays
ECHOSOUNDER: Simrad DST800
RADAR: Simrad broadband 4G 36nm
LOG: Simrad DST800
OTHERS:
FLIR camera
CCTV system
Simrad GOFREE WiFi wireless module

Deck

ANCHOR WINDLASS: 2x 4000W / 110V – 60Hz 3-phases
ANCHOR SYSTEM: 2x 79Kg anchors with 2x 12mm -100m (each) chains
CAPSTANS: 2x 3600W / 110V 60Hz 3-phases
PASSERELLE: Max capacity 150Kg 24V DC electro-hydraulic

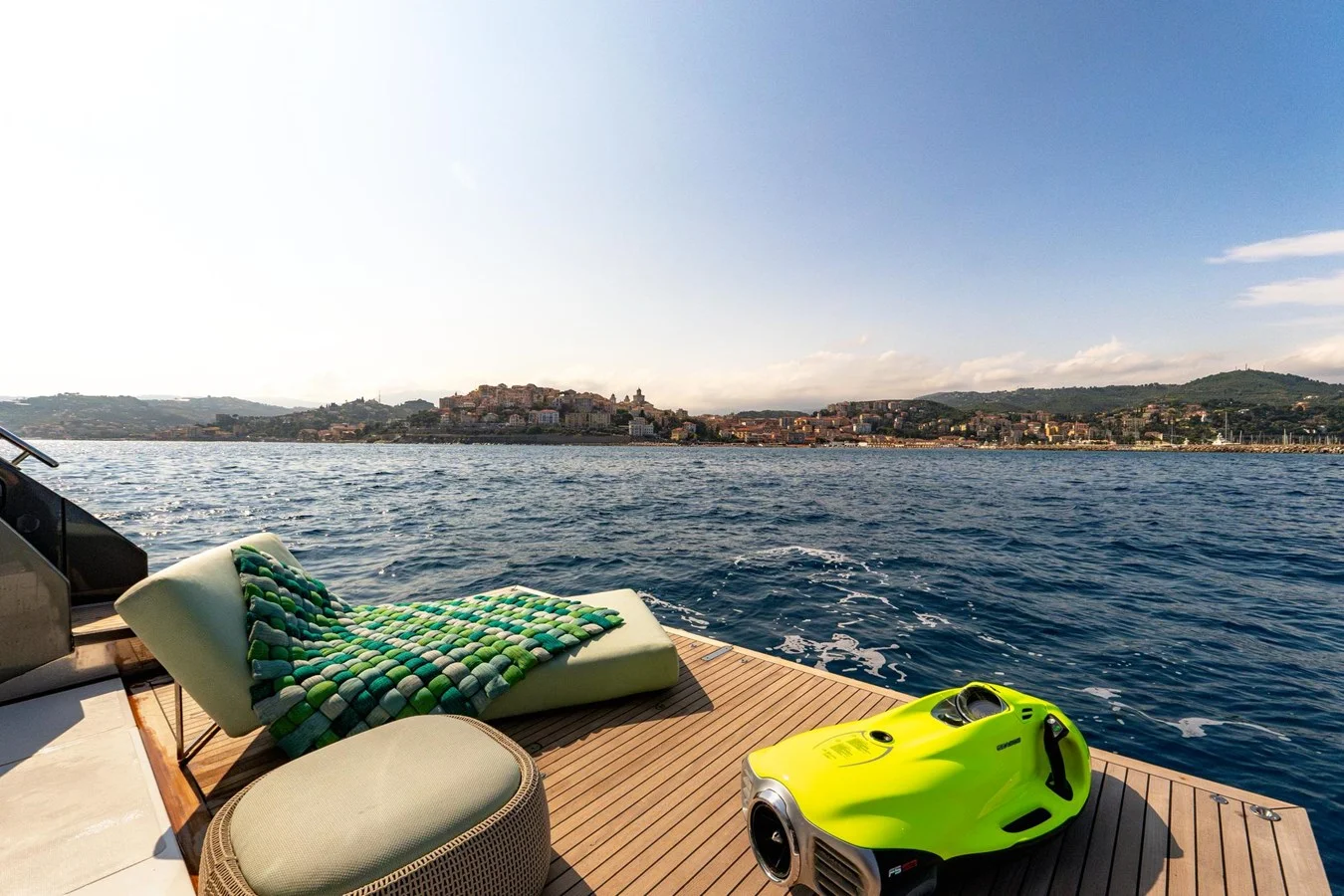

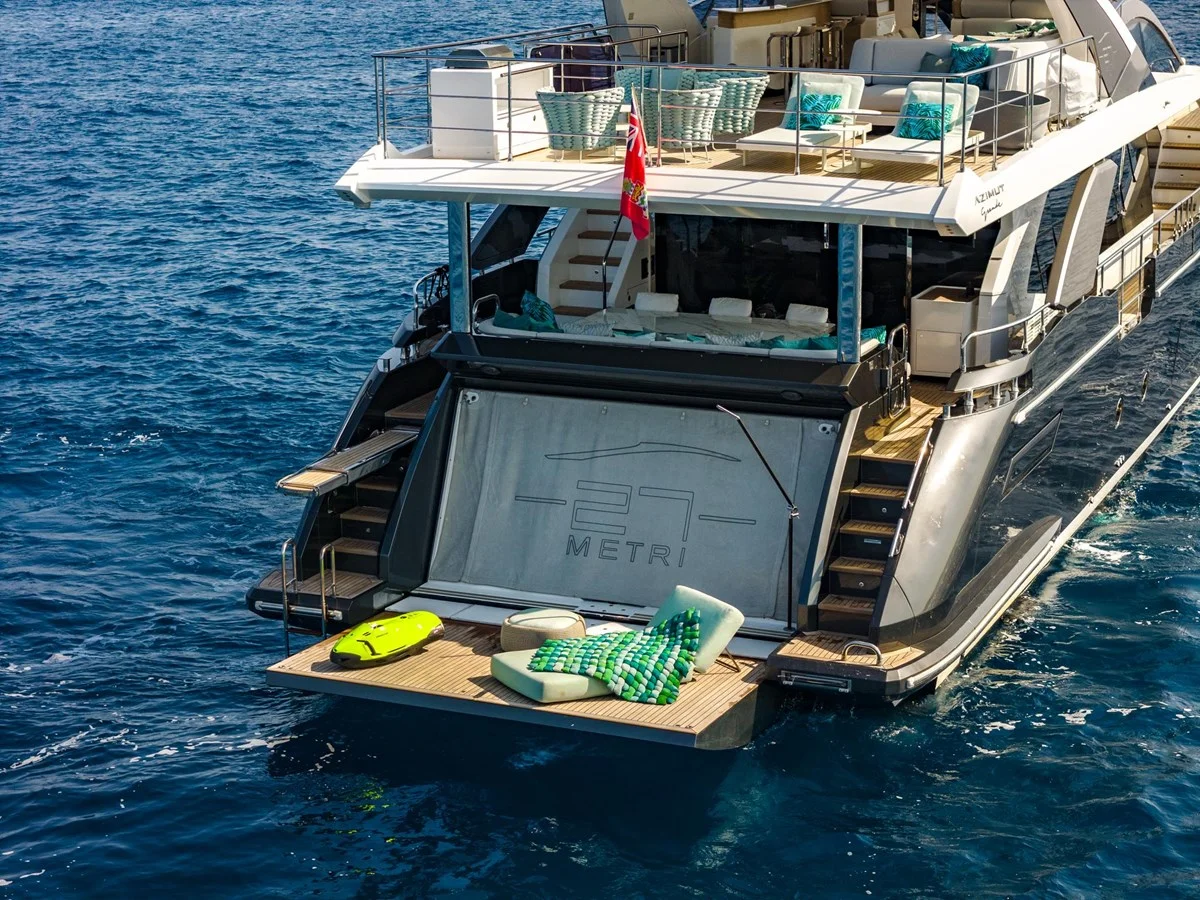

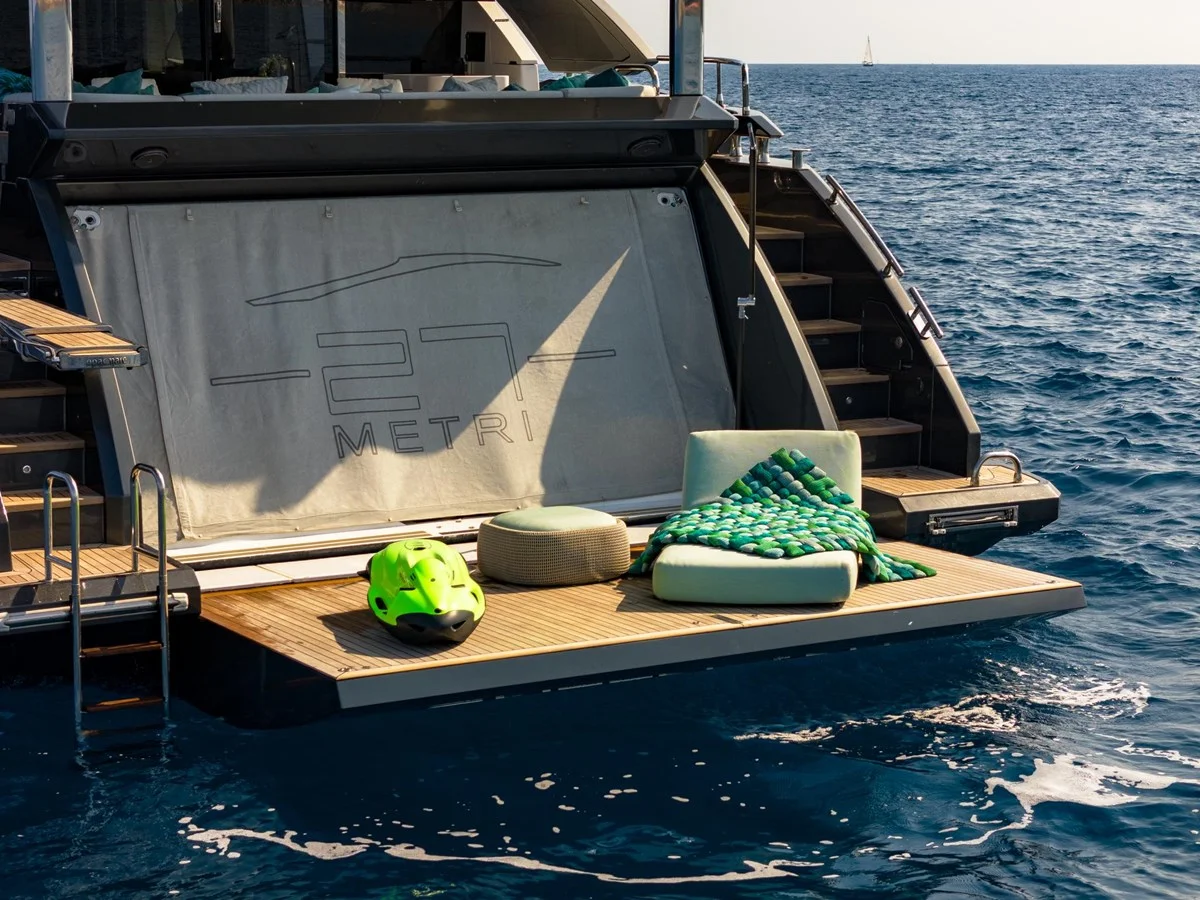

SWIMMING PLATFORM: Rated capacity 1000Kg – dimensions: 3811x2555mm

Tender & Toys

TENDER: Williams DJ445
TOYS: Seabob F5, SUP, Wakeboard, Donut, Snorkelling equipment, Pool with net

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. Hours listed may vary from actual hours due to recent use. Purchaser is encouraged to verify hours prior to purchase. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
