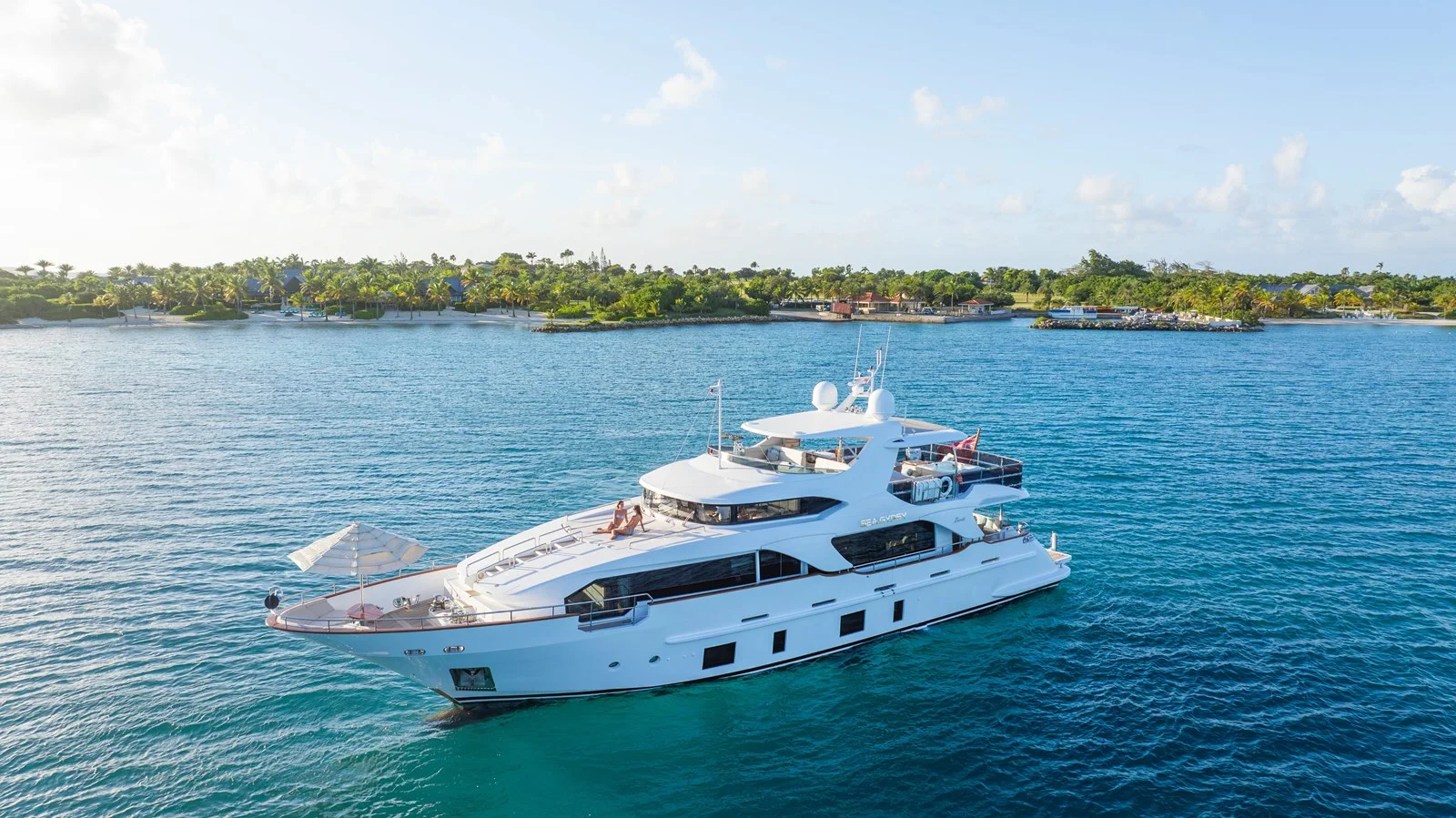

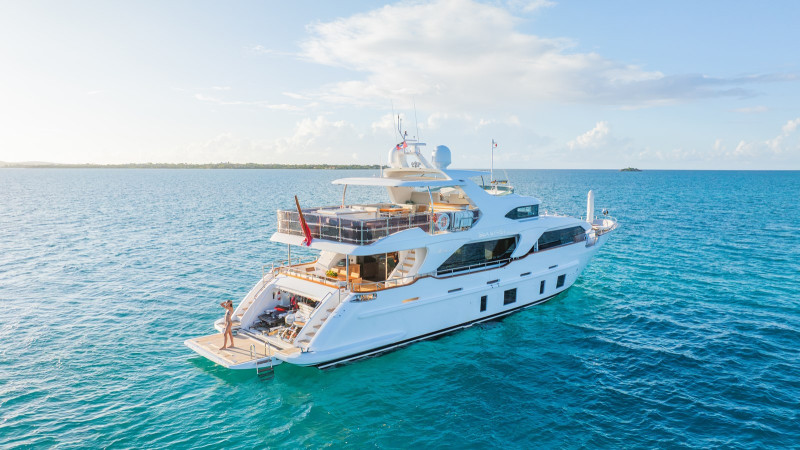

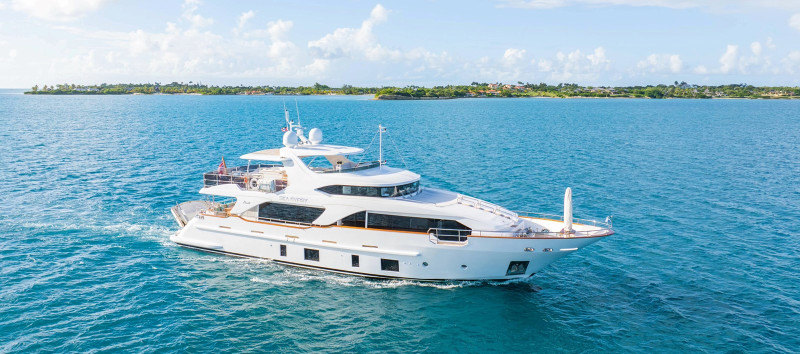

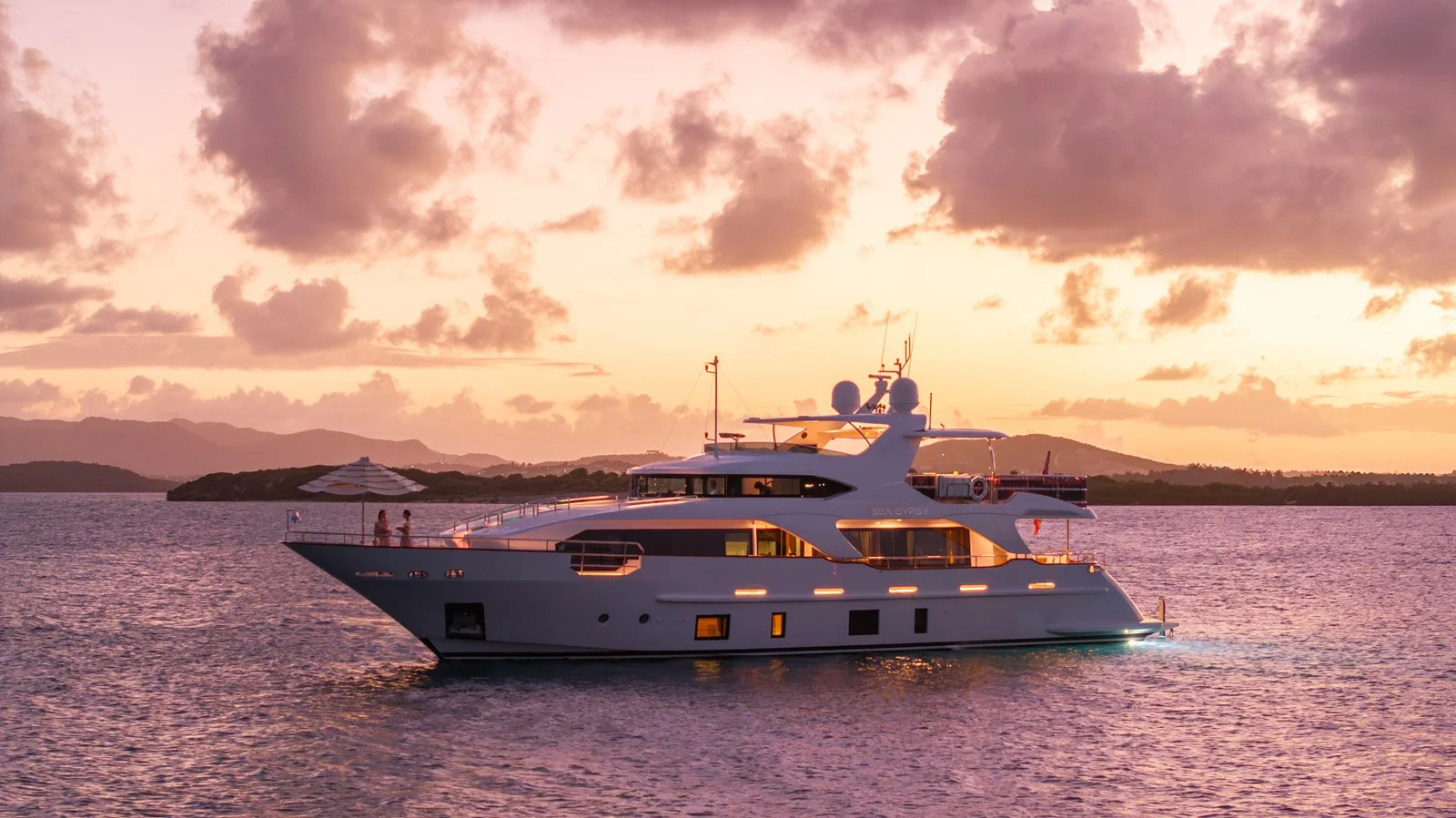

Delfino 93 2011 BENETTI YACHTS

Description

Builder: Azimut Benetti Spa - Benetti Division

Naval Architect: Azimut Benetti Spa - Benetti Division

Concept and Exterior Designer: Stefano Righini

Interior Designer for Owner and Guest spaces: Carlo Galeazzi

Interior Designer for Crew spaces: Benetti

Specifications

Length: 28.50m (93.’6”)

Beam: 7.03m (23’ 1”)

Draft: 1.90m (6’ 3”)

Year built: 2011

Builder: Benetti

Interior Designer: Carlo Galeazzi

Number of Cabins: 4

Total Guests (Sleeping): 8

Total Guests (Cruising): 12

Crew Accommodation: 3 crew in 2 cabins

Performance & Main Machinery

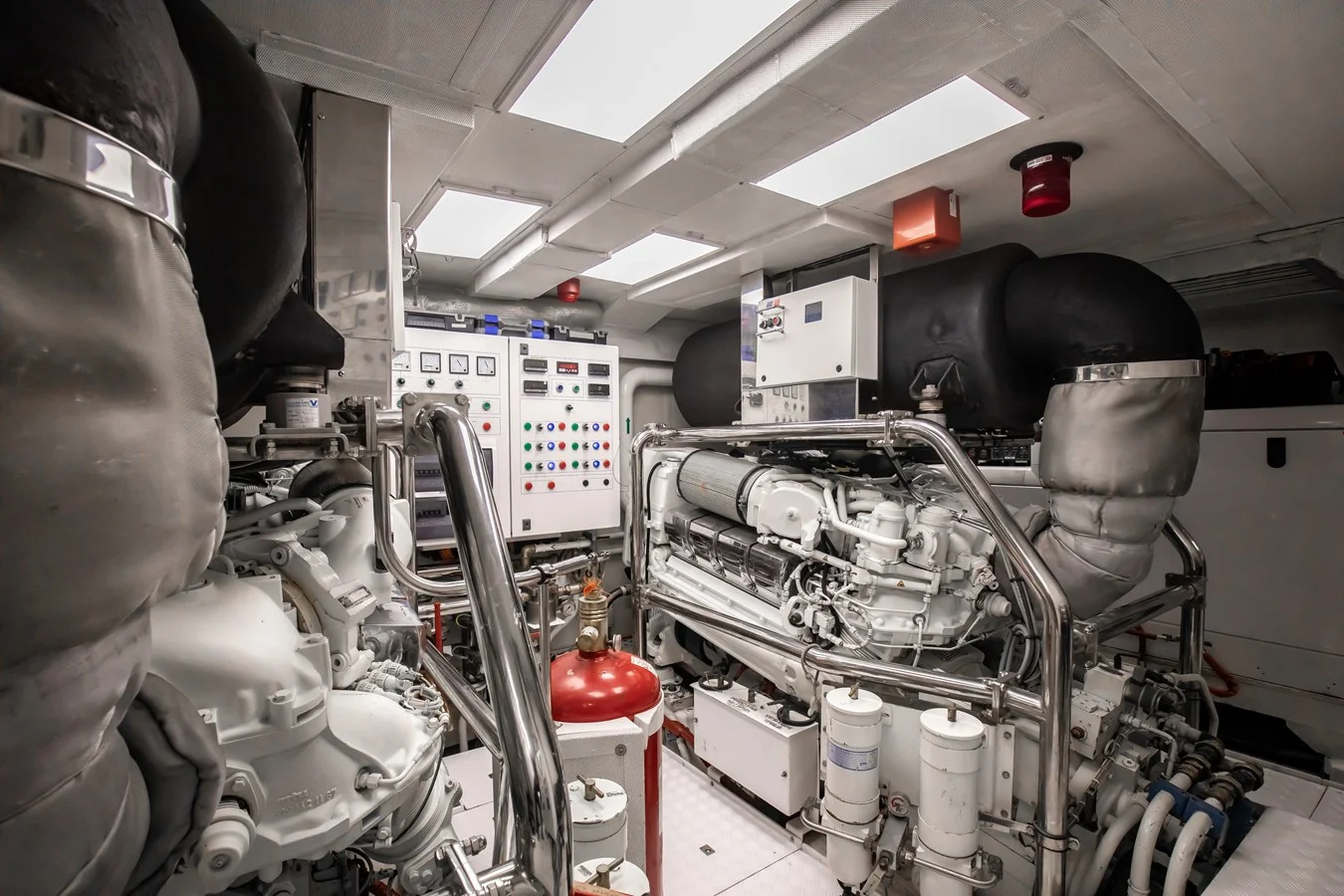

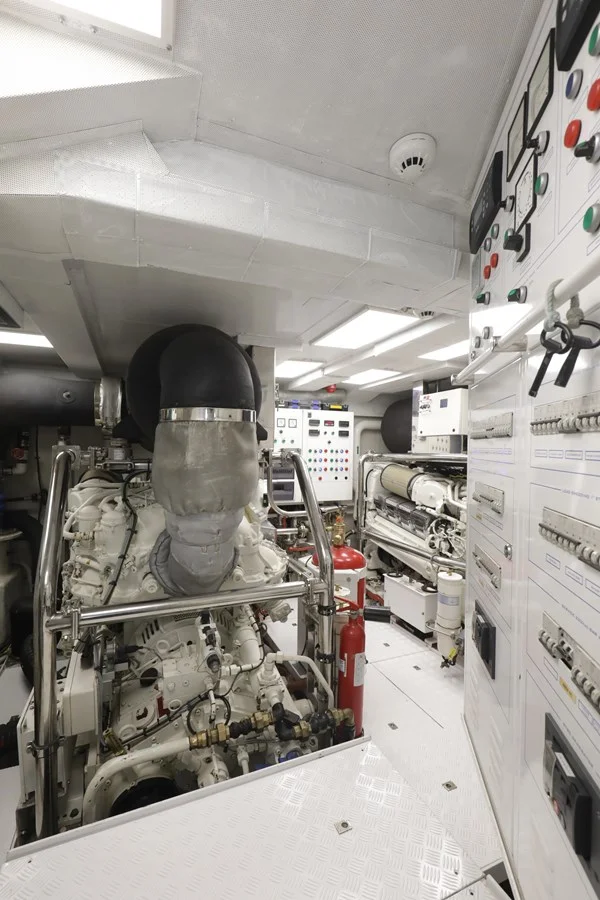

Main Engines: 2 x MTU 8V2000 M72 720 kW @2250 rpm

Gear box: 2 x Reintjes mod. WAF 344

Generators: 2 x Kohler 40 kW - 230 VAC / 50Hz

Propellers: Benetti Design

Water Maker: Idromar mod. MC3J 180 l per hour (47,55 US gallons)

Bow Thruster: Hydraulic motor 30 kW – ( 40 Hp )

Stabilizers: Navigation Stab and Zero Speed at anchor

Max speed at half load displacement: 14.0 Knots

Cruising speed at 85% of maximum power at half load: 13.0 Knots

Range at economic speed of 10 Knots with one diesel generator running: 1,500 Nautical Miles

Classification & Certificates

CE mark ( module F ) Certified by Registro Italiano Navale (R.I.Na.).

As option:

- R.I.Na., Rules for Classification of pleasure yachts C HULL • MACH Y

- MCA Compliance Certificate issued by R.I.Na.

Hull & Superstructure Construction

Hull and deck are entirely built in GRP (Glass Reinforced Plastic), single skin type and sandwich

type, depending to the zone.

Superstructure is built in GRP (Glass Reinforced Plastic) with a cored sandwich structure.

Above the keel double bottom tanks will be constructed as an integral part of the hull

structure such as:

Water tank

Fuel tanks

Sanitary tank

Air Conditioning System

The Heinen & Hopman system is designed on the following data:

Summer conditions:

Outside air      35° C   95° F   R.H. 90%

Inside air         22° C   72°F    R.H. 55%

Maximum sea water temperature       32° C   90° F

Winter conditions:

Outside air      0°C      32° F

Inside air         22° C   72°F

Maximum sea water temperature       10° C   90° F

Outfitting General Chararcteristics

Windlasses                                          Lofrans (3 * 230 V)

Capstans                                              Foot operated Lofrans type 230V/3phase/50Hz

Anchors                                              High holding power type, 98kg each in galvanised steel

HHP (high holding power)

Chains                                                 2 x galvanised steel of 12,5 mm diameter with stud link

DIN 766 for U2 grade of a length of 110 m each

Gangway                                             Hydraulic retractable telescopic, 3 stages.

Tender and water toys storage            Located on the aft garage a Tender of 4.5 mt.

Electrical System

The electrical equipment, wiring, fixtures, etc. and its installation shall be in accordance with

the CE rules.

The electrical system shall be designed and installed in accordance with the CE requirements

and it will consist of a 230 VAC / 3 phase / 50 Hz system and a 24 VDC system.

As option a 60 Hz system can be provided.

Navigation & Communication

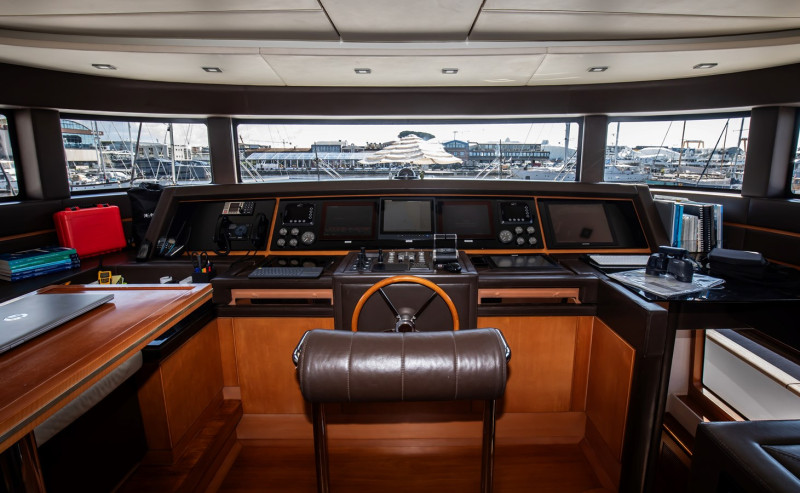

Wheelhouse

Radar                                                  Simrad Nobeltec

Gyro Compass                                    Yes

Rudder angle indicator                       Yes

Magnetic compass                              Riviera, White Star BW 3 130 mm diam.

Log /wind system                               Wind Multi NMEA system

Autopilot                                             Navicontrol Mod AP3003

Rudder Tiller                                      BCS

Take over system                                Yes

GPS                                                     Yes

Chart system                                       PC with Nobeltec Admiral 10 Max-Pro software

Arpa function                                      Yes

Clock, barometer, thermometer          Barigo 120

VHF                                                    Sailor 4801 DSC (D Class)

GSM / GPRS phone                           Telular SX 5E

PABX                                                 RX-TDA30

Entertainment System

The following equipment will be installed:

• N.1 Antenna Naval Nargentus for Aerial TV and AM/FM Radio Reception

• “BEST” Integrated Entertainment System

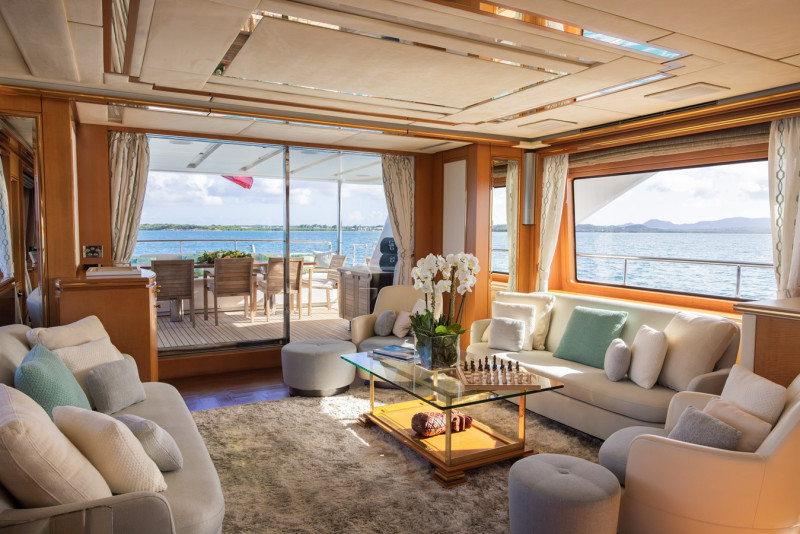

Main saloon                            Denon Sintoamplifier mod. 2809

Client BEST HD

LCD TV 42”

In-ceiling speakers

Integrated Remote Control Philips Pronto

Ipod docking station Denon

Dining area                             CPA 60 stereo amplifier

N.2 speakers with independent volume control

External areas on MD             N.4 marine speakers

Sun Deck                                Car stereo SONY amplified waterproof

N.4 marine speakers

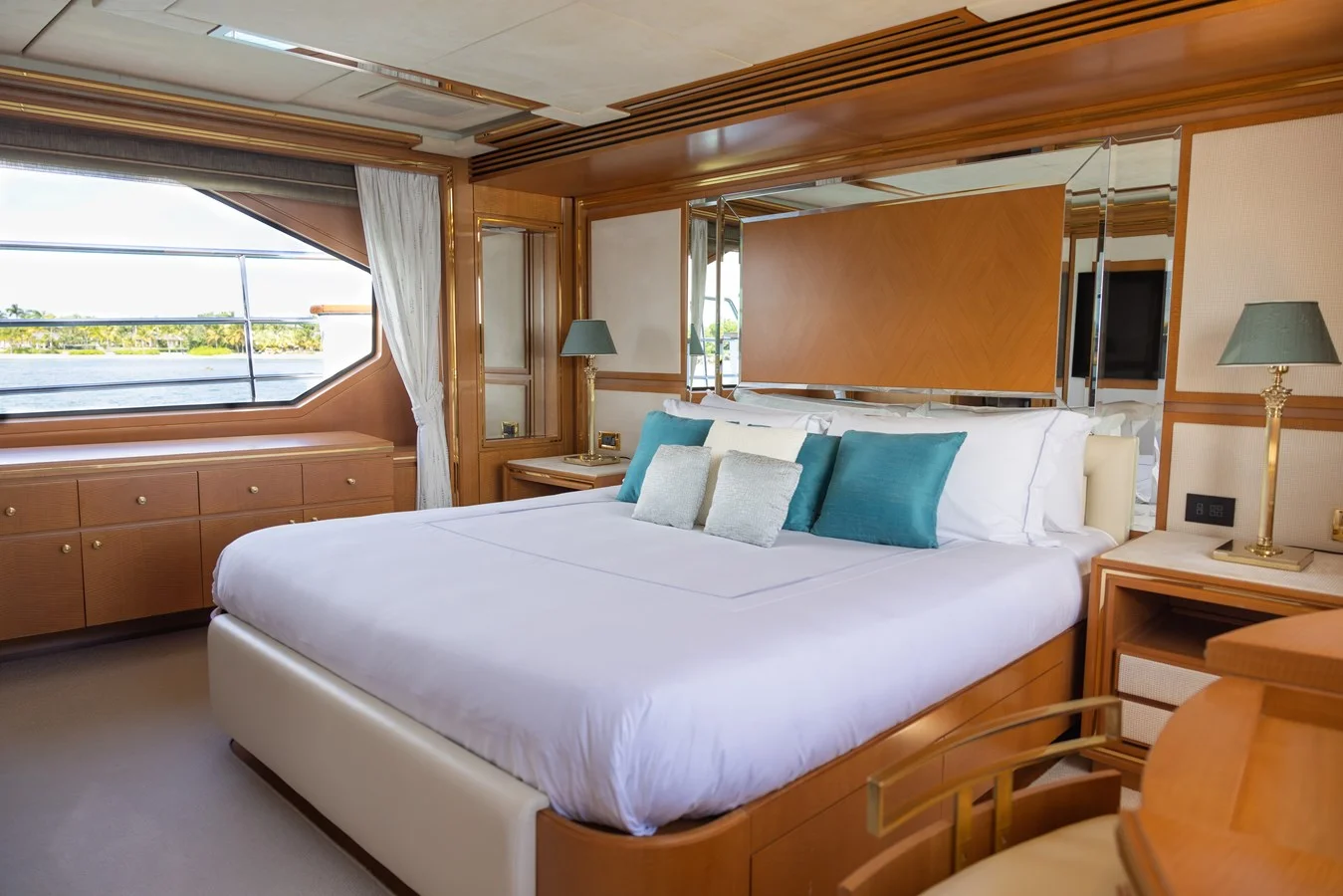

Owner’s Suite                                     Denon sintoamplifier mod. 2809

Client BEST HD

LCD TV 42”

In ceiling speakers

Integrated remote control Philips Pronto

Ipod docking station Denon

VIP Cabin                               Teac System DR-H300 with DVD player and iPod input

LCD TV 19”

In-ceiling speakers

Integrated Remote Control Philips Pronto

Guest Cabins                           Teac System DR-H300 with DVD player and iPod input

LCD TV 19”

                                                In-ceiling speakers

Integrated Remote Control Philips Pronto

Entertainment System

Captain Cabin                                     Teac System DR-H300 with DVD player and iPod input

In-ceiling speakers

Crew Cabin                             Teac System DR-H300 with DVD player and iPod input

In-ceiling speakers

Galley / Crew Mess                LCD TV 19”

Teac System DR-H300 with DVD player and iPod input

In-ceiling speakers

Wheelhouse                            Teac System DR-H300 with DVD player and iPod input

In-ceiling speakers

Domestic Appliances

Laundry                                  Washing Machine

Main Saloon                           Drying Machine

Galley                                     Cooking top 75 cm

Exaust hood

Oven 90 cm

Microwave

Dishwasher

Garbage macerator

Fridge

Freezer

External Sun Deck Bar           Minifridge

                                                Ice Maker
