2002 163' 9" PROTEKSAN-TURQUOISE

GeneralLength Overall (L.O.A.):

• 163.72 feet
• (49.90 meters)

Beam (molded):

• 30.51 feet
• (9.30 meters)

Draft (loaded):

• 9.61 feet
• (2.93 meters)

Tonnage: 480 gross

CapacitiesFuel Capacity:

• 22,375 US Gallons
• (84,700 liters)

Water Capacity:

• 6,119 US Gallons
• (23,162 liters)

Black Water:

• 599 US Gallons
• (2,266 liters)

Grey Water:

• 3,817 US Gallons
• (14,450 liters)

Watermakers: (2) Octo Marine Deepblue T8-8m3/day

Fuel ConsumptionFuel Consumption for 2 ME:  180 l/hr at cruising speed (12 knots) Fuel Consumption for 2 ME: 320 l/hr at top speed (15 knots)

Main EnginesEngine Type: (2) Caterpillar 3508 DI-TA diesels @ 1,100 Hp eachGearboxes for Main Engines: Reintjes WAF 541Drive: (2) Teignbridge 5 blade propellers

Generators & ElectricityOutput: 220V 50hz / 300V 50hz 3phaseGenerators: Caterpillar 3306BTGenerator Fuel Consumption: 20 l/hrShore Power: 120 / 380V 1&3phase 50/60hzConverter: Atlas 80KwBatteries: 24V

Air ConditioningType: Condaria WM-RE 120002

Other MachineryWatermakers: (2) Octo Marine Deepblue T8-8m3/day Trim Tabs/Stabilizers: Quantum Zero SpeedBow Thruster: CRAMM V2 20HSteering System: Ulstein JR 2.130 (Total Rebuild 6/2024)Fuel Separator & Filtration: Alfa Laval MAB 103BSewage System: Hamann Type 2Fresh Water System: C-PVCBilge Water Filtration: Heli Sep HS-500 OCD Bilge Water Separator (6/2021)

Communication SystemsSATcom: StarlinkTelephone System: PanasonicSSB: MF/HF DSC Radio setVHF: (2) Sailor 6222 VHF DSCCellular Phone System: Kerio System with Sim Cards & Google PhonesIntercom: Panasonic

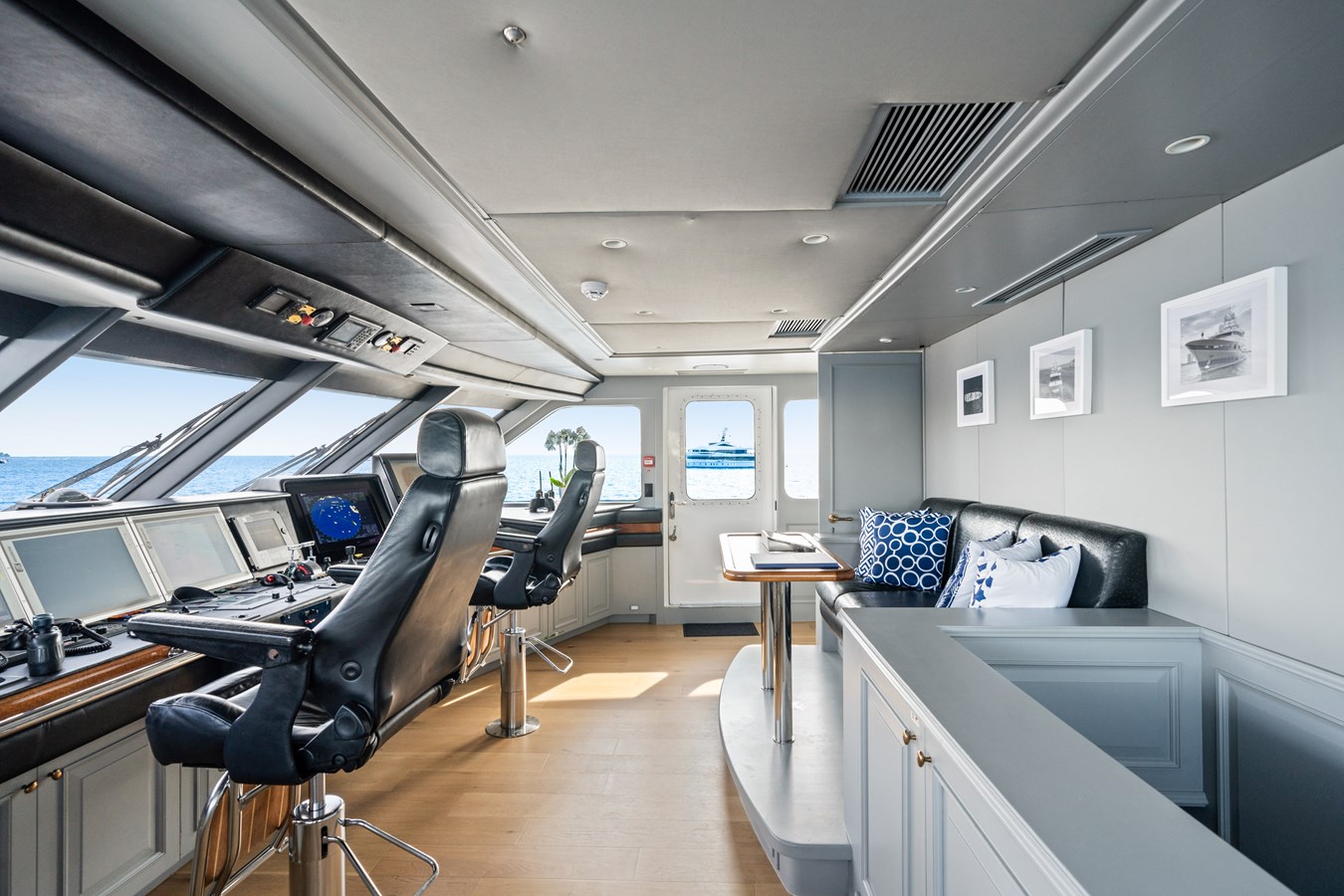

Navigation SystemsRadar:

• (1) FURUNO FAR22x8BB with (1) Furuno 8' Open Array Antenna, X-Band (1)
• Furuno XN20CF/6.5 6.5' Open Array Antenna, X-Band (6/2023)

Gyrocompass: Anschutz STD22 (Sphere replaced 4/2024)Magnetic Compass: Cassens & Plath Delta (4/2024)Auto Pilot: Anschutz Pilotstar DEcho Sounder: ELAC LAZ 5100GPS: Simrad A170 + Furuno GP170Weather FAX: B & G Hydra 2000Laser Plotter: TransasWind/Speed Log: Consilium SAL R1 Navtex:

• Sailor TT-3606E / Navtex Receiver / Printer
• NX700P

AIS: SimradChart Display: Transas Navi Sailor 4000 MFDBNWAS: Foruno BR500PA Pilothouse Alerter System

Entertainment SystemsVideo & Audio Equipment

• AV system with HD screens throughout the yacht updated with new releases (2023)
• Full surround sound cinema with pop up screen in the main saloon
• Plasma or liquid crystal flat screen TV's throughout the yacht - makes and sizes below:
  • Sky Lounge - flat screen LED Samsung 55"
  • Master cabin - flat screen Pioneer TV 41"
  • All other cabins - flat screen Sony TV 20"
  • Sky TV (Mediterranean)
• Audio on demand system available throughout the yacht (inside & outside)
• Sound server and iPAD docking stations in both saloons and all cabins

Main Galley EquipmentCooking Equipment:

• (2) Convotherm combi oven
• 4 Ring MKN Induction
• (1) Microwave

Refrigeration/Freezer:

• (2) Afinox refrigerator
• (2) Electrolux refrigerator
• (2) freezers
• (3) ice makers

Dishwasher: Hobart

Crew Galley/Mess EquipmentCooking Equipment: MicrowaveRefrigeration/Freezer: Liebherr Refrigerator/FreezerOther: Miele Dishwasher

Laundry EquipmentMain Laundry Equipment

• (2) Miele washers
• (3)  Miele dryers

Tenders:

• BSC 66 (6.6m) tender with 200HP Yamaha gas outboard engine, seats 12
• 4.2m Rescue Boat tender with 2-stroke 15HP Tohatsu gas OB engine

Dive Gear:

• Air compressor
• 3 Regulators, 3 BCD’s
• 4 oxygen tanks
• 1 Nitro Tank
• 15 Sets Snorkel Gear

Other: Ghost tracking system for tender

Anchor Windlass System: (2) Muir VRC 15000 (Rebuilt (6/2024)Aft Warping Capstans: (2) Muir VC 13000 (Serviced (6/2024)Anchors: (2) 495 kg anchorsAnchor Chain: (2) New (6/2024)Boat Crane and Davits:

• Rescue Crane – Cramm SWL 3100kg
• Lazarette Crane – Cramm SWL 500kg

Passerelle: Retractable hydraulic  Cramm OceanSwimming Platform: 612 x 148cm with hot and cold showerOther:

• Retractable sun awning on bridge deck
• Parasols on the sundeck

Security EquipmentCCTV System: Fully OperationalCameras: (5) CCTV CamerasMonitors: Located in Bridge and Crew Mess

Fire Fighting EquipmentFire Control System: Ultra FogFire Extinguishers: Portable Units Serviced AnnuallyAlarms: Consilium

Safety EquipmentLife Rafts: (4) 25 Person SOLAS ALife Jackets: SOLAS Inflatable 38 x Adult, 6 x ChildEPIRBS: Current as of 6/2024Flares: Current as of 6/2024Medical Equipment: Current as of 6/2024Rescue Tender: DSB 420 IRB Solas Rescue Boat

MOSAIQUE accommodates up to 12 guests in 6 staterooms, including a full beam master stateroom and a VIP stateroom on the main deck, as well as four additional staterooms on the lower deck.

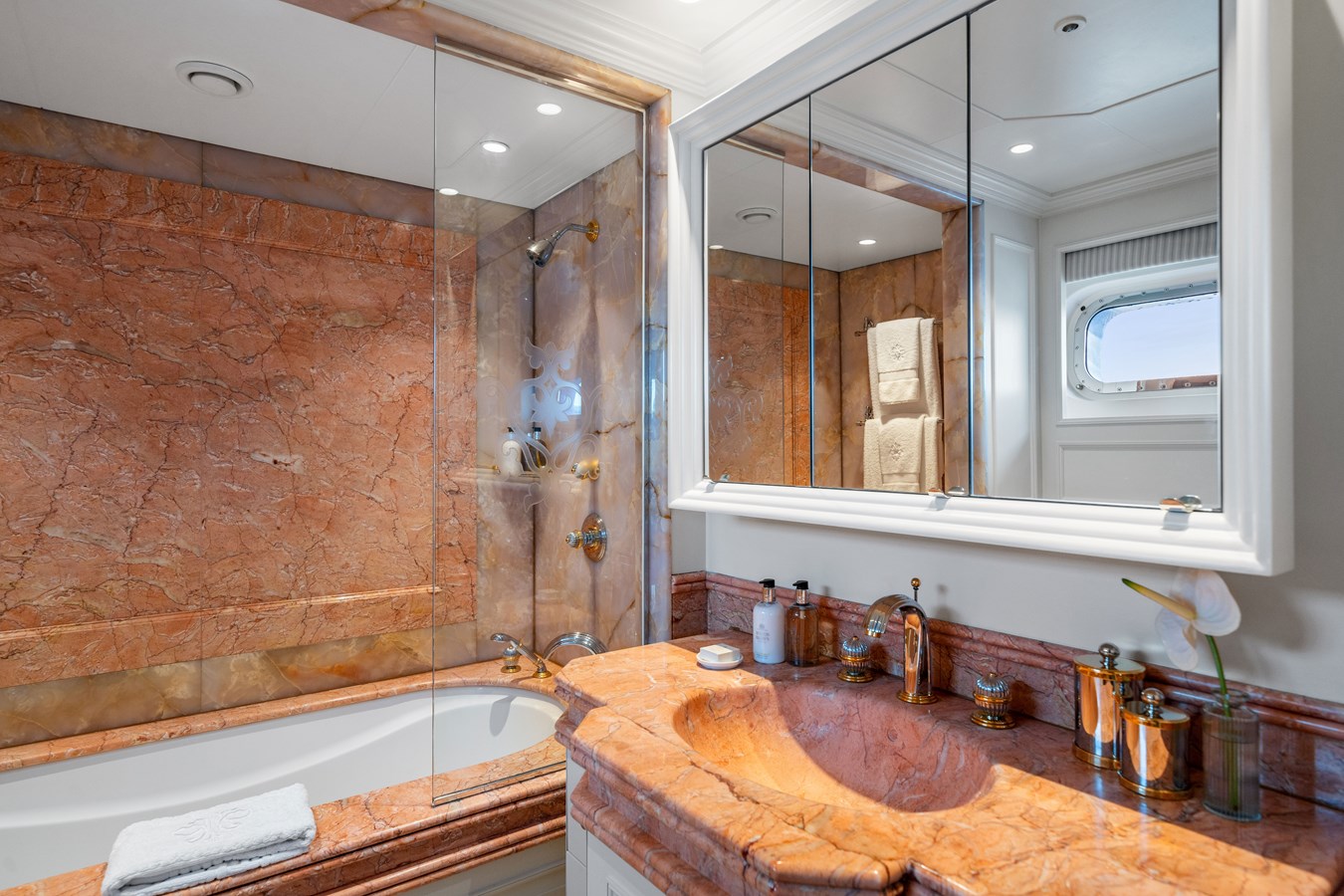

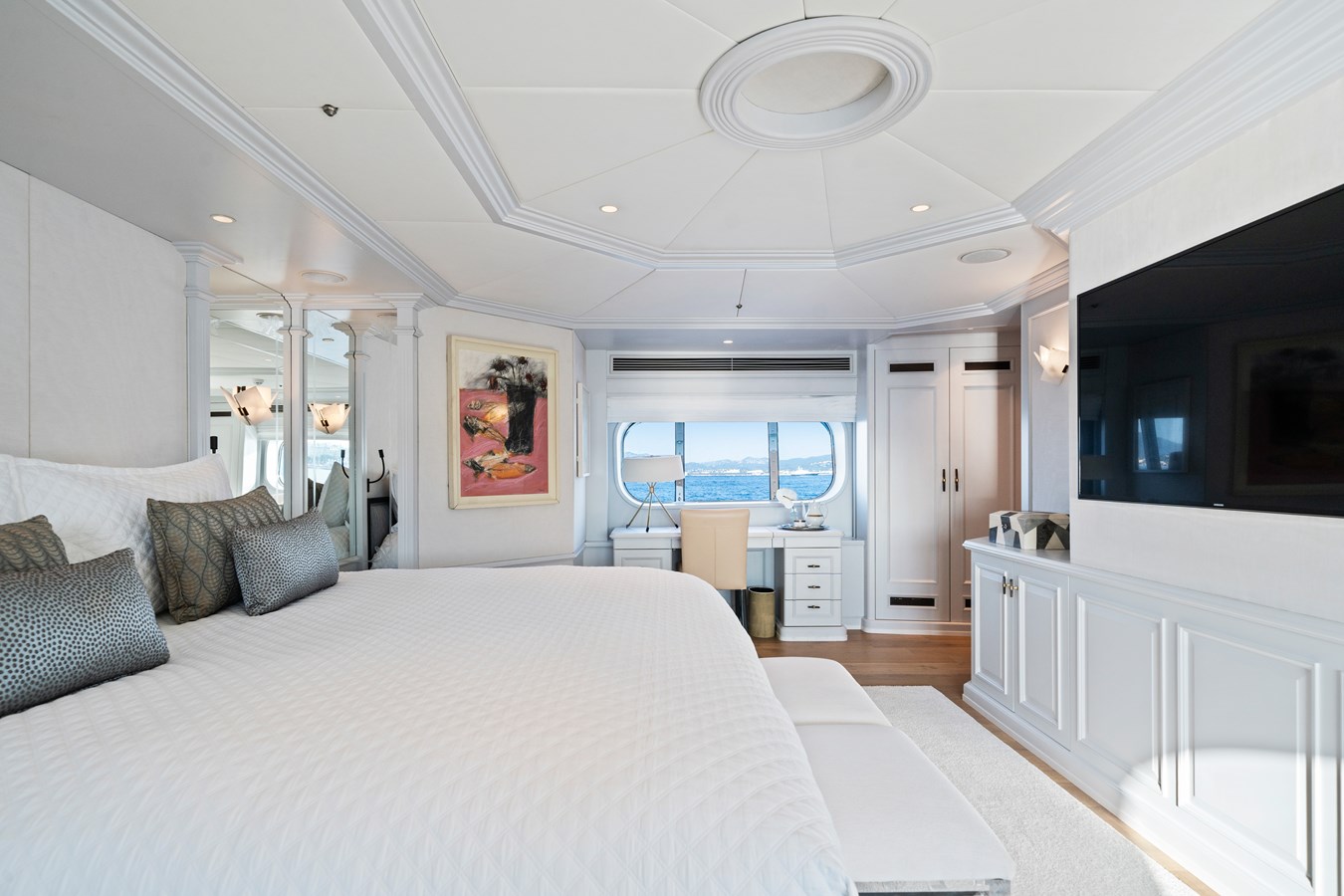

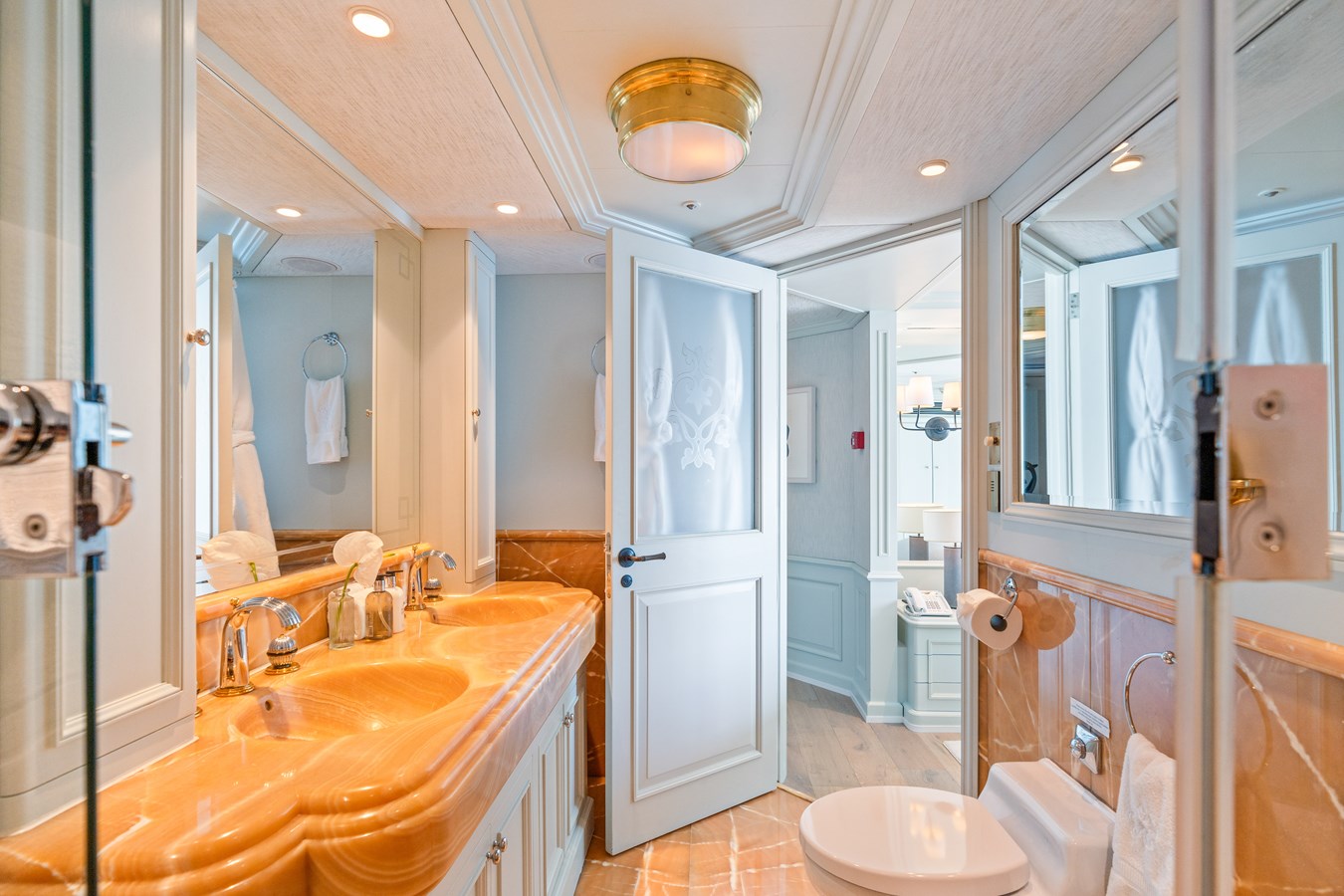

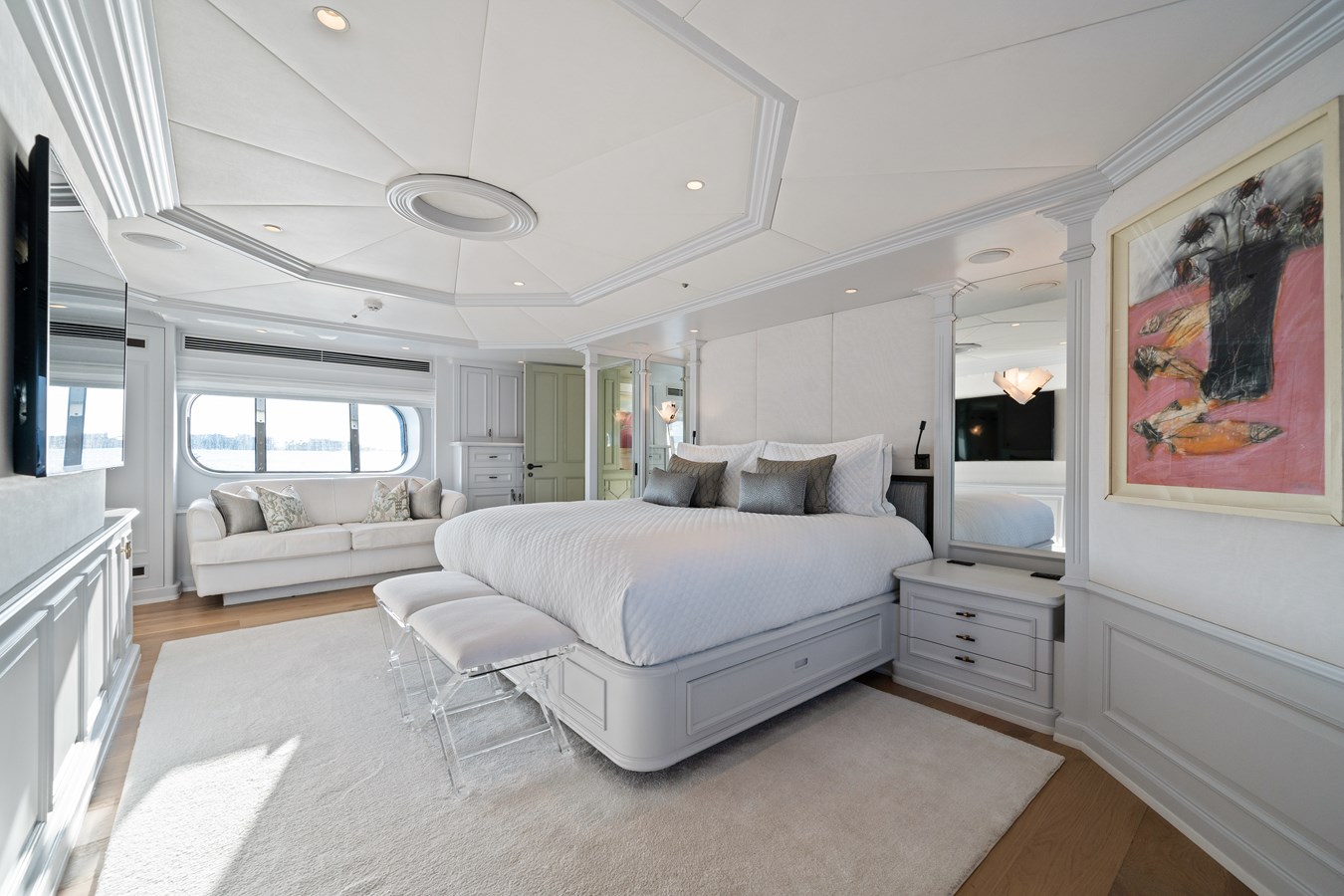

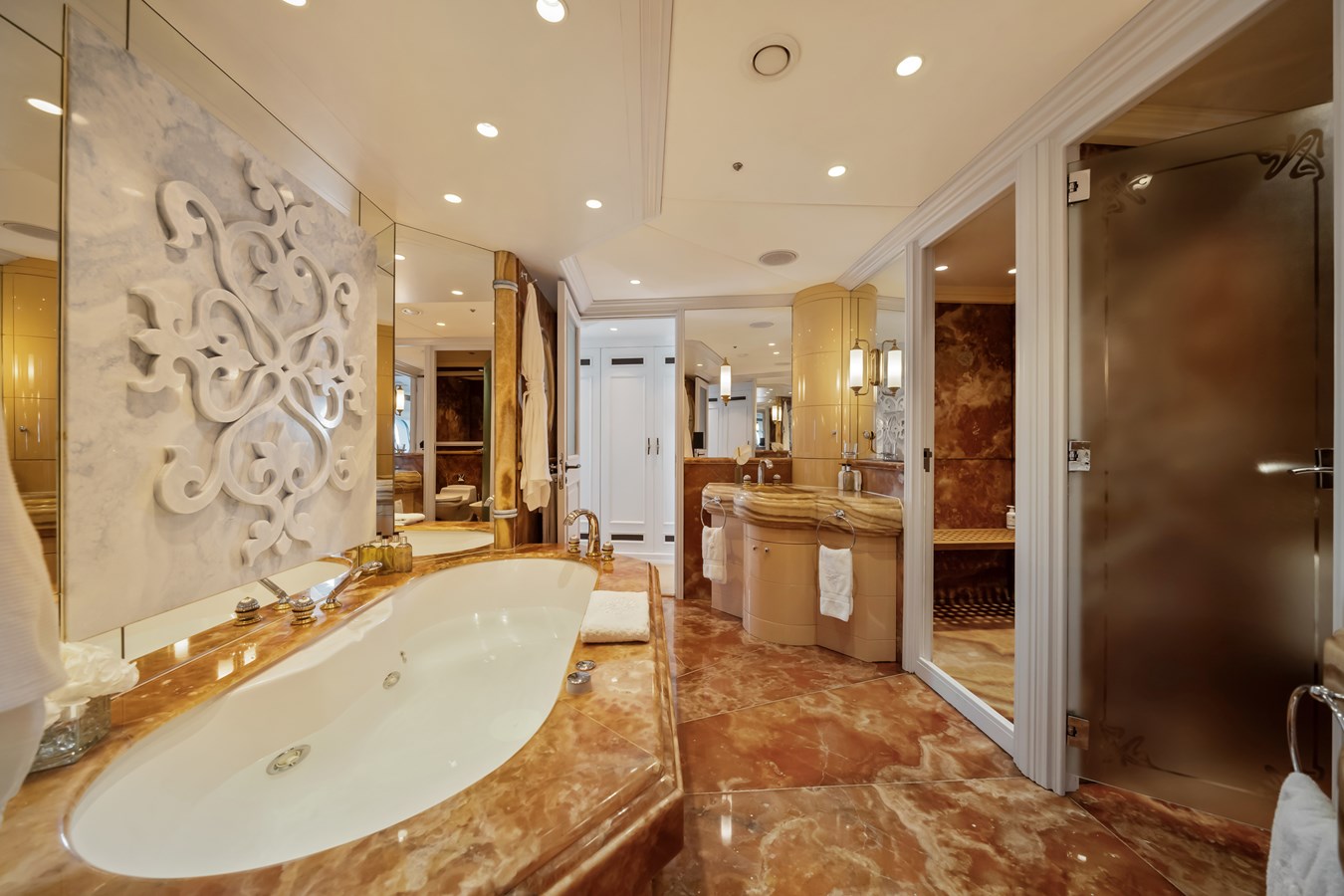

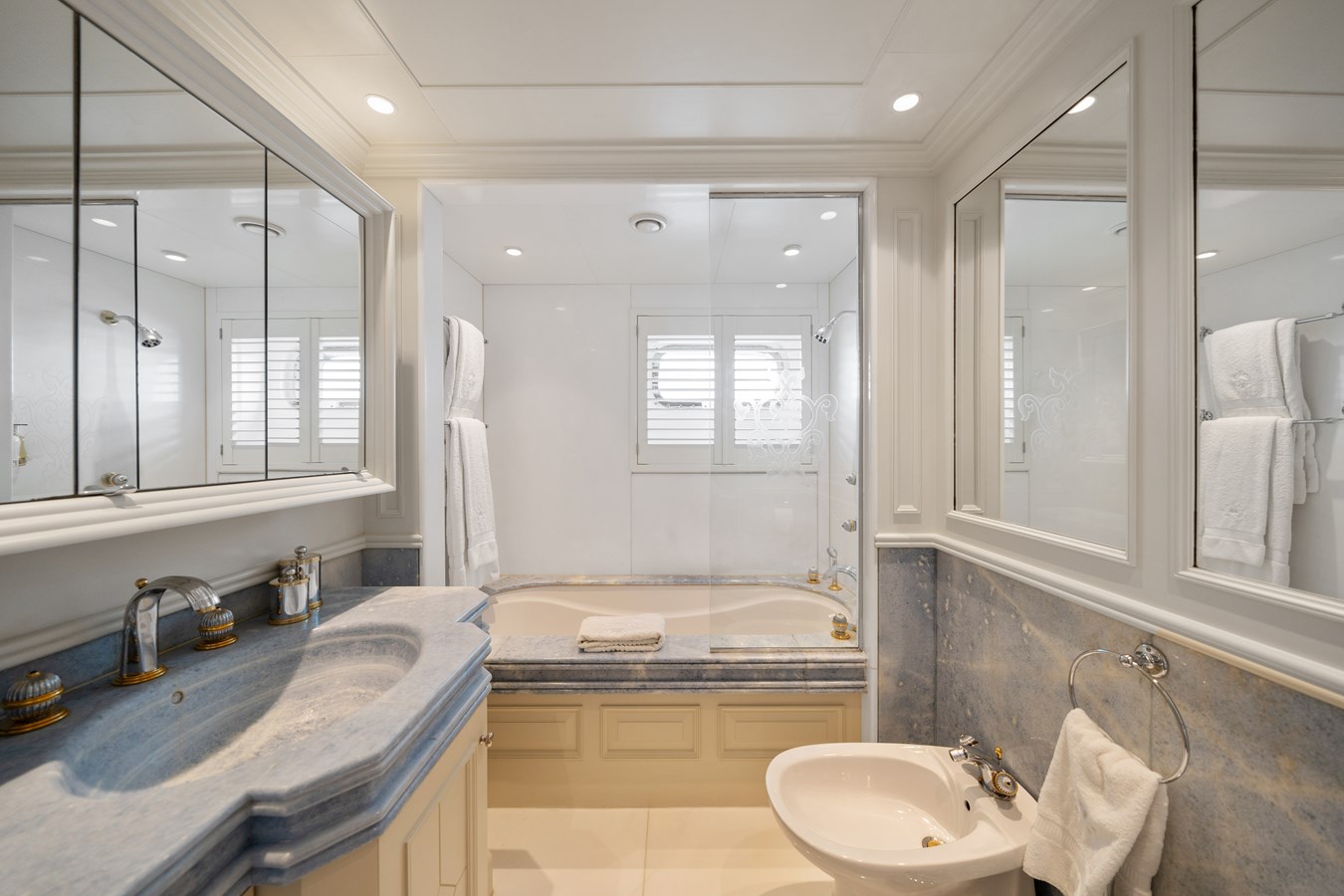

The full beam master stateroom on the main deck features a king-sized bed, a separate seating area, and a luxurious bathroom with a whirlpool tub, steam shower, and double vanity, all elegantly decorated in onyx and marble.

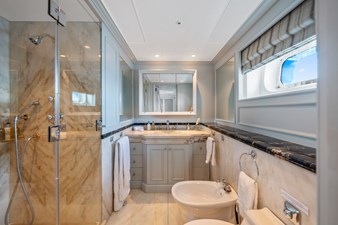

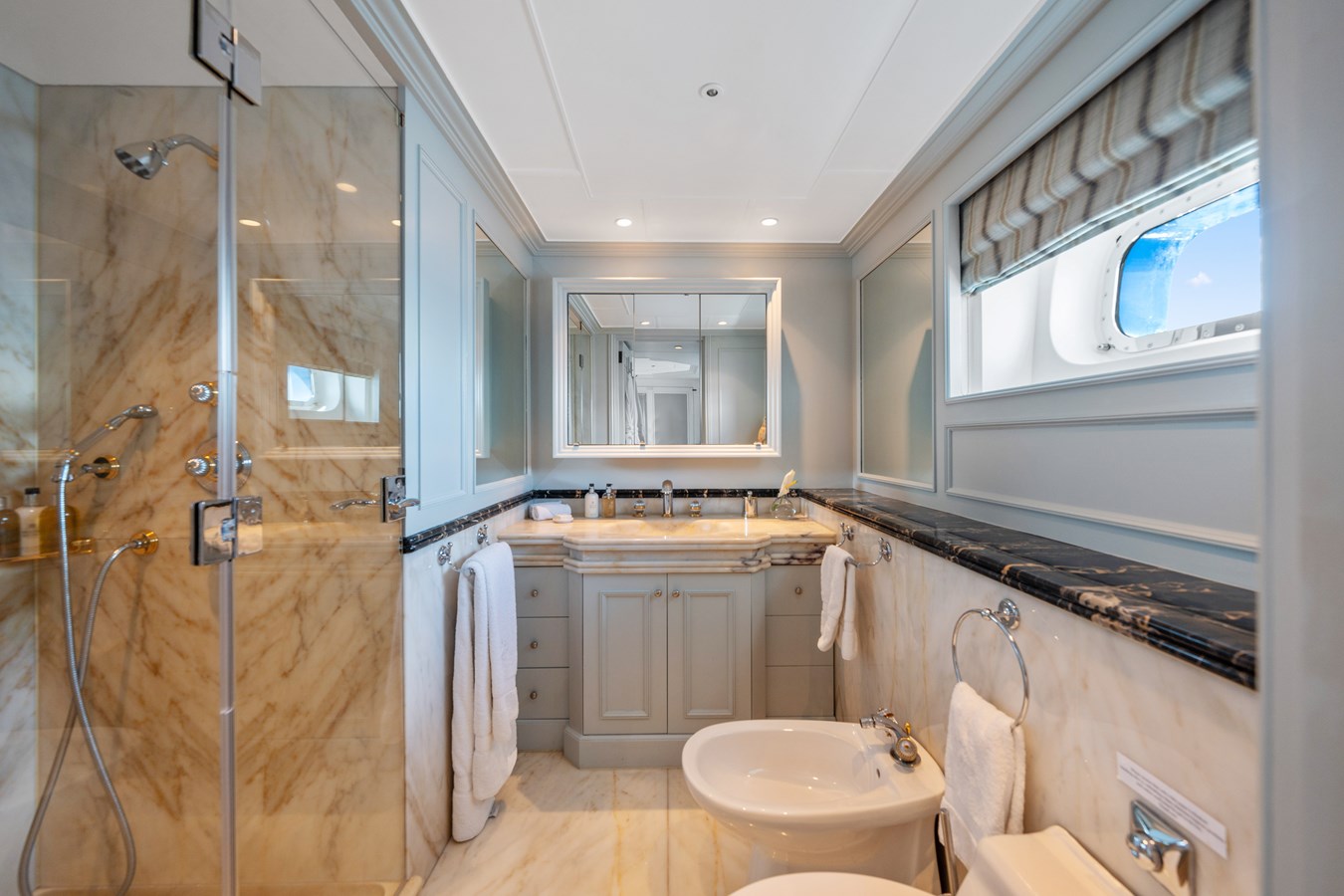

The VIP stateroom on the main deck includes a large double bed and an ensuite bathroom with a double vanity.

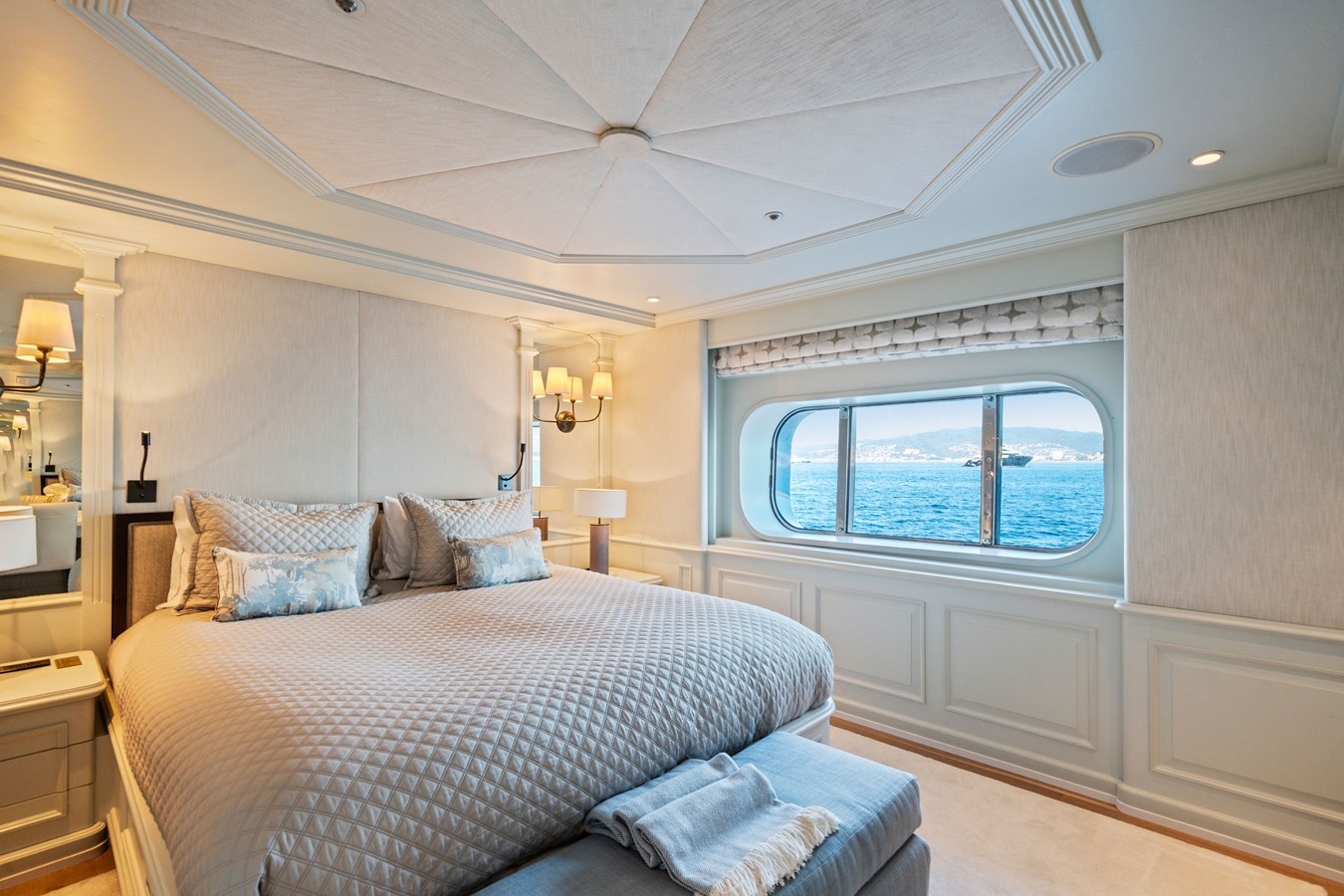

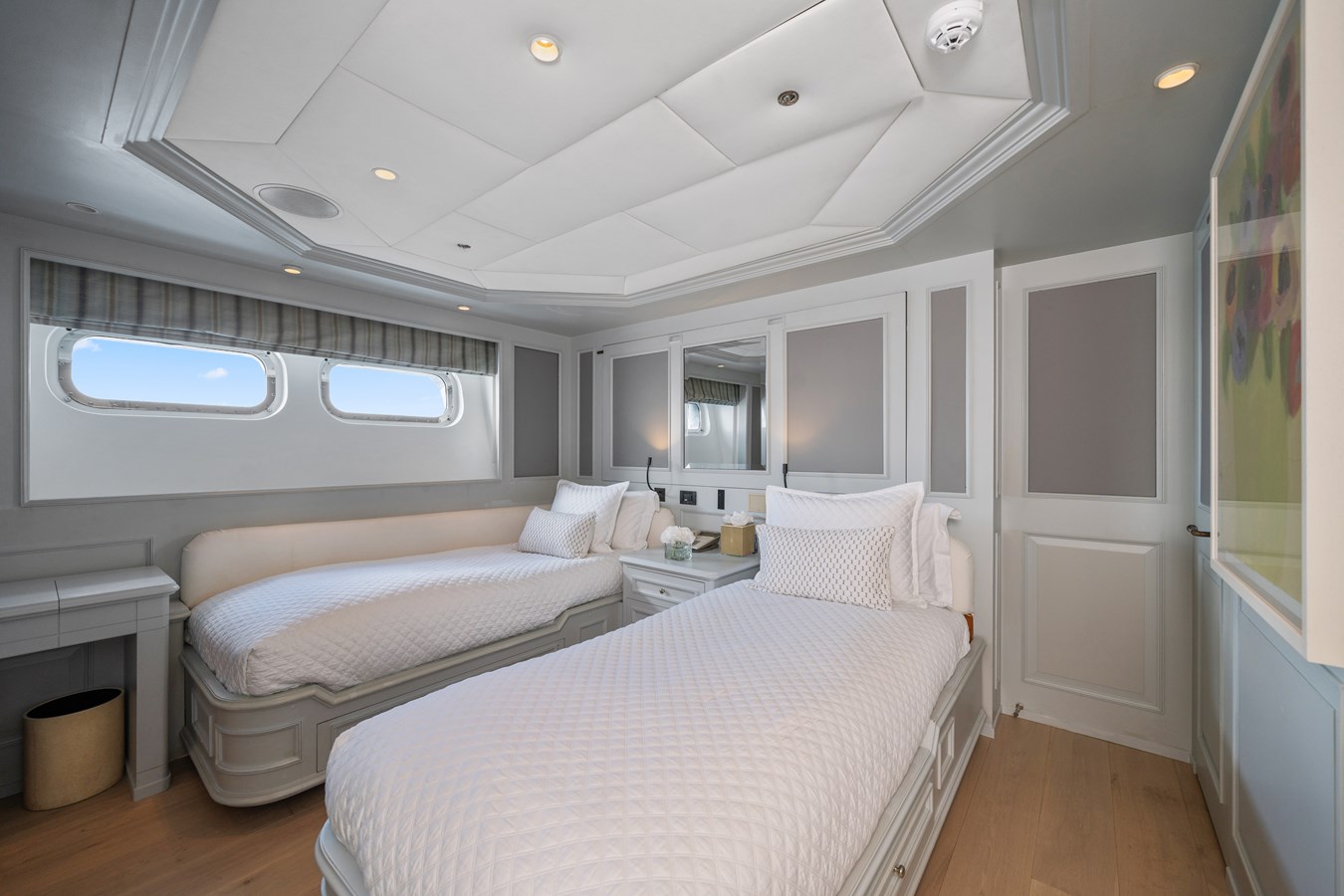

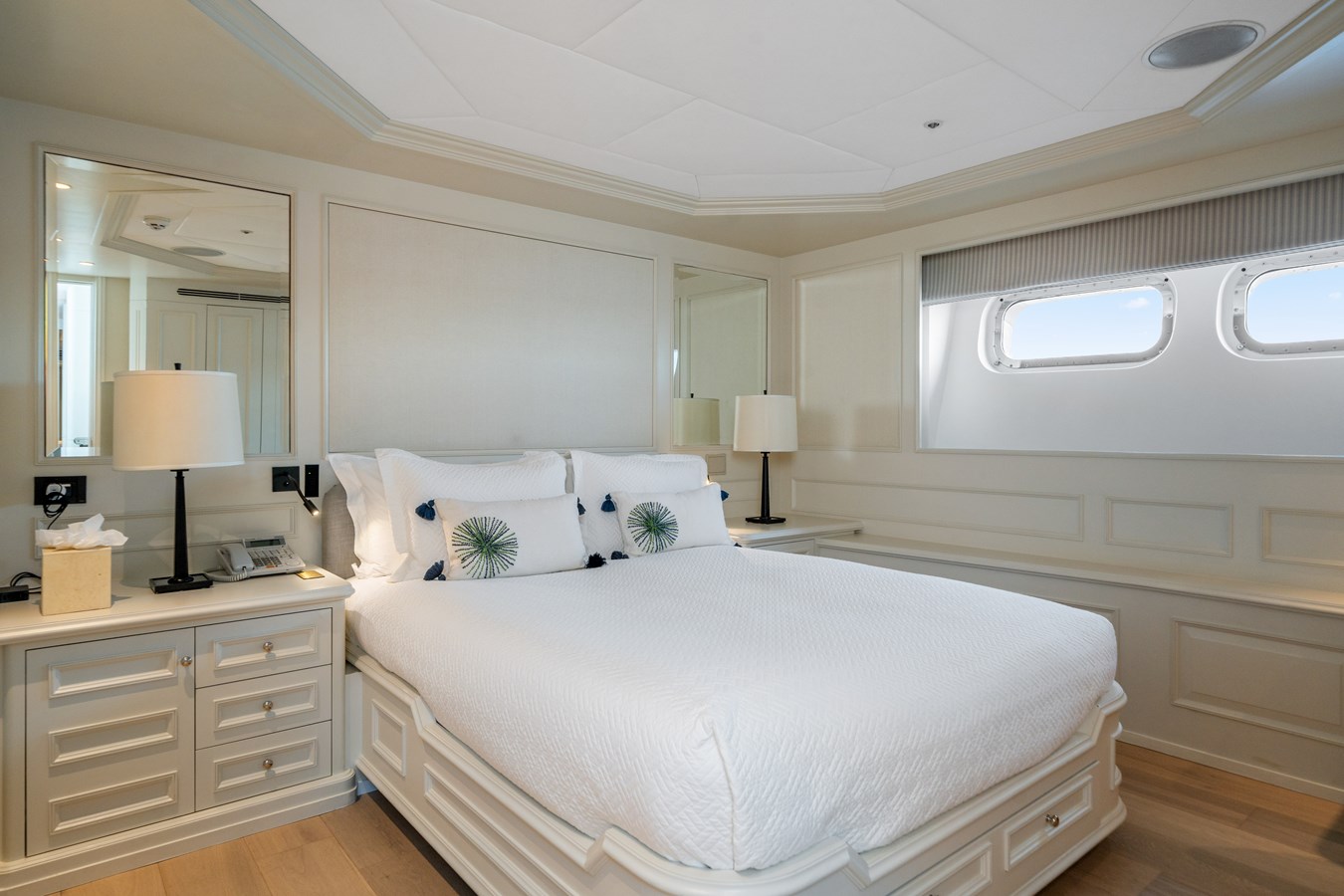

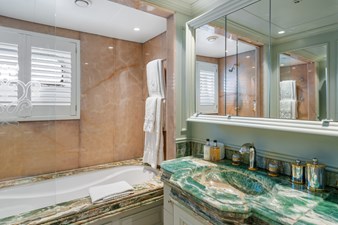

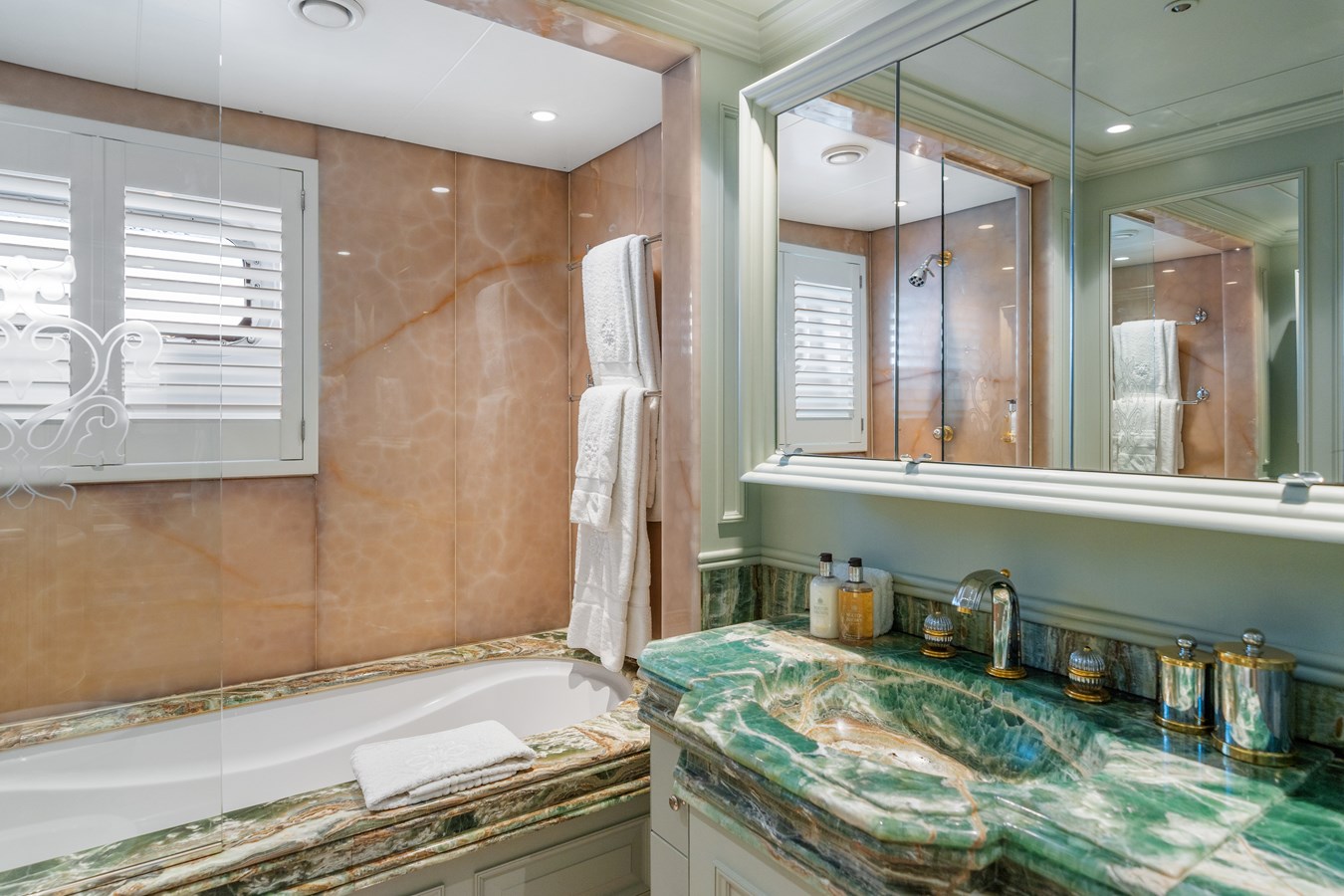

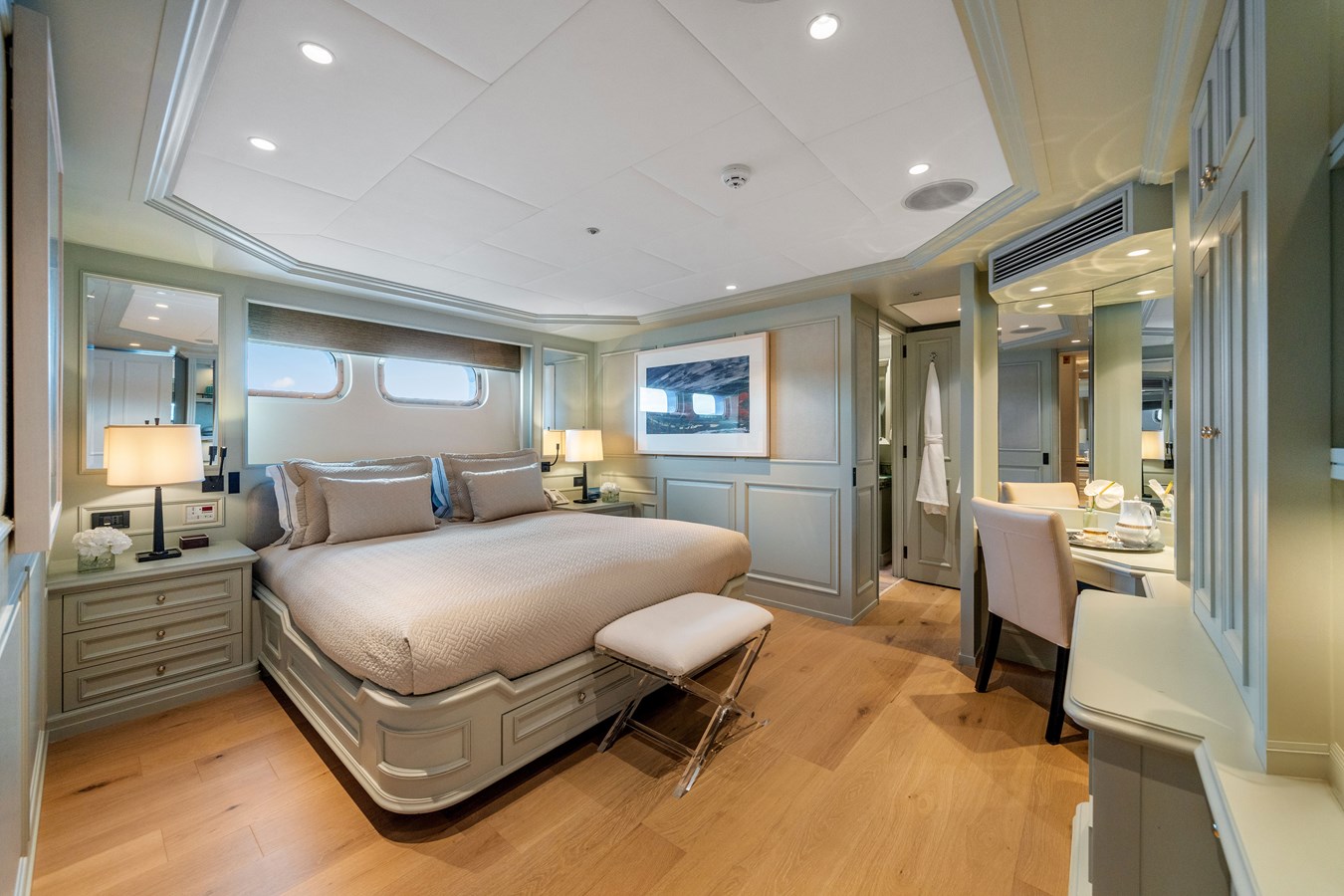

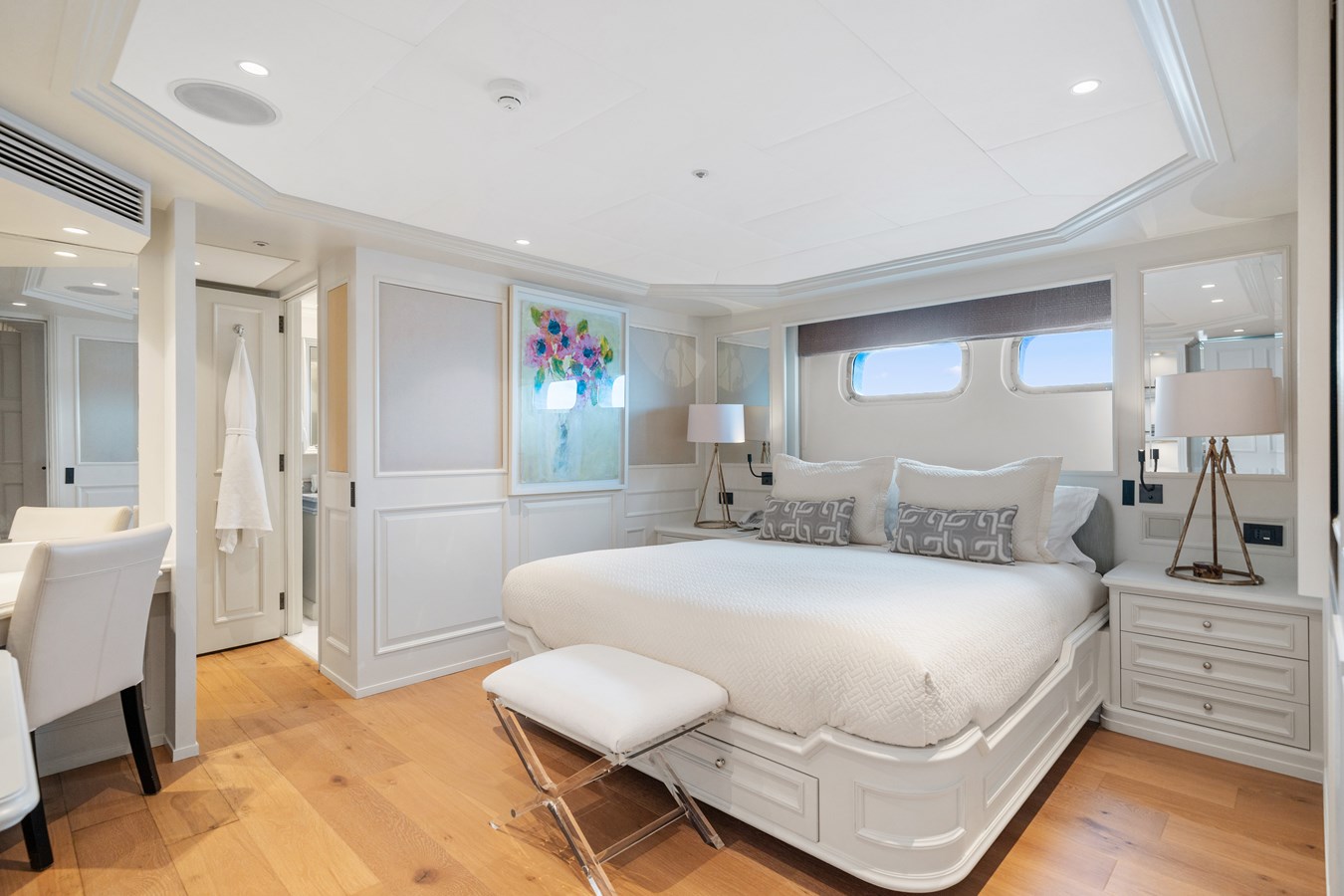

On the lower deck, there are three double staterooms, each with an ensuite bathroom, and one twin stateroom with an ensuite bathroom.

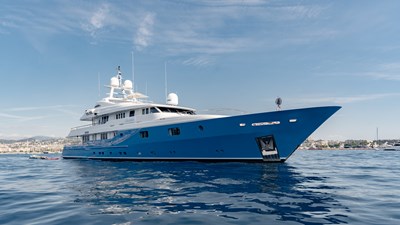

Designed by the esteemed Dubois Naval Architects, MOSAIQUE is a sophisticated and stylish luxury yacht that manages to maintain a sense of intimacy despite her expansive decks and luxurious suites. Her thoughtful and creative design ensures that every space feels personal and inviting.

Her lovely interior is light, bright and airy and in the “Hamptons Beach House” style.

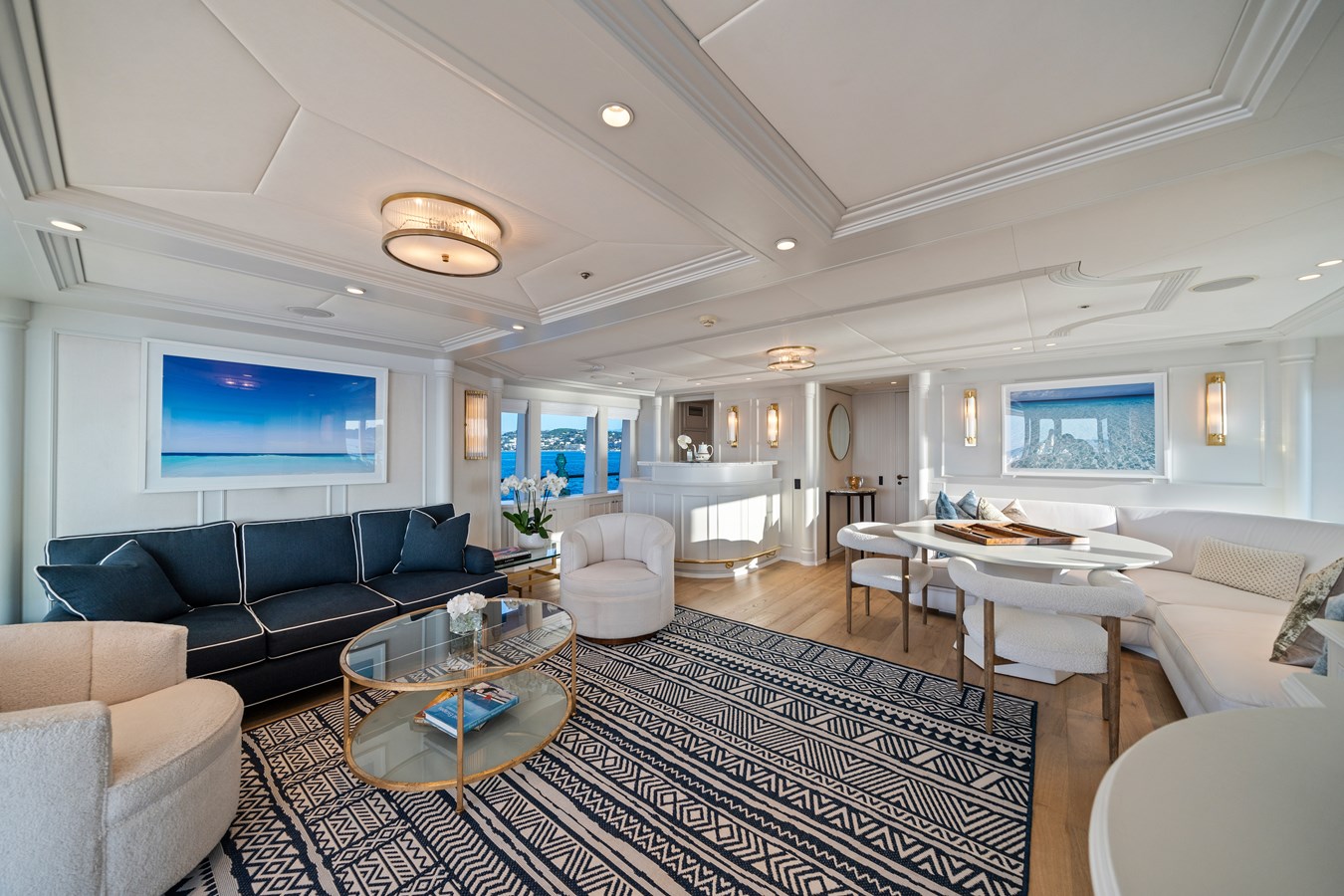

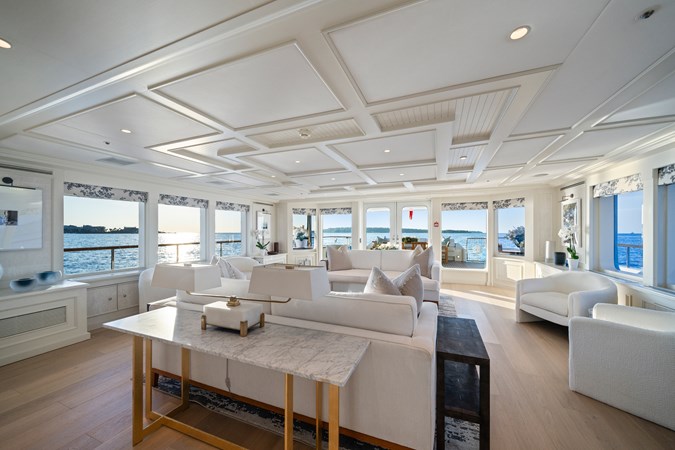

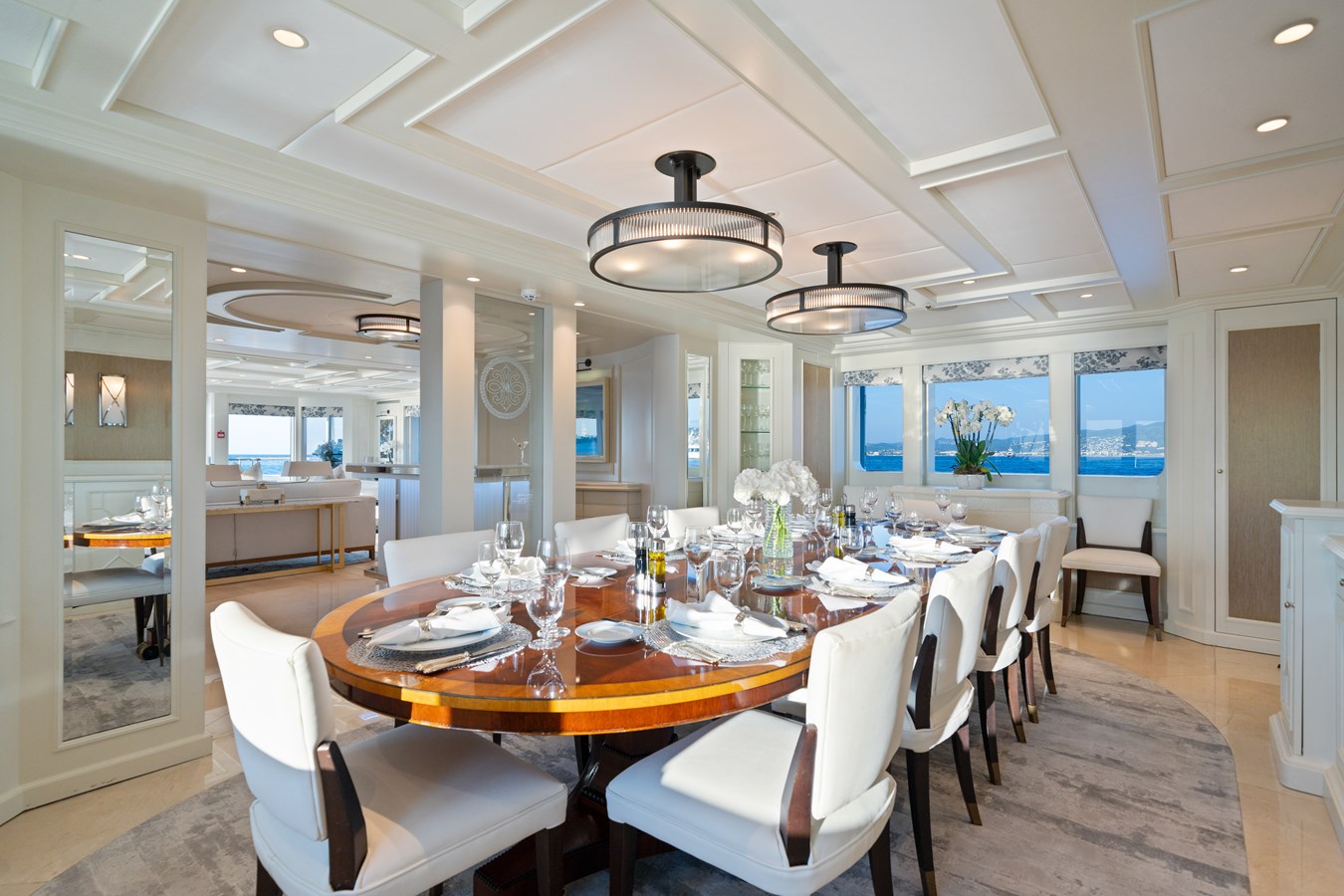

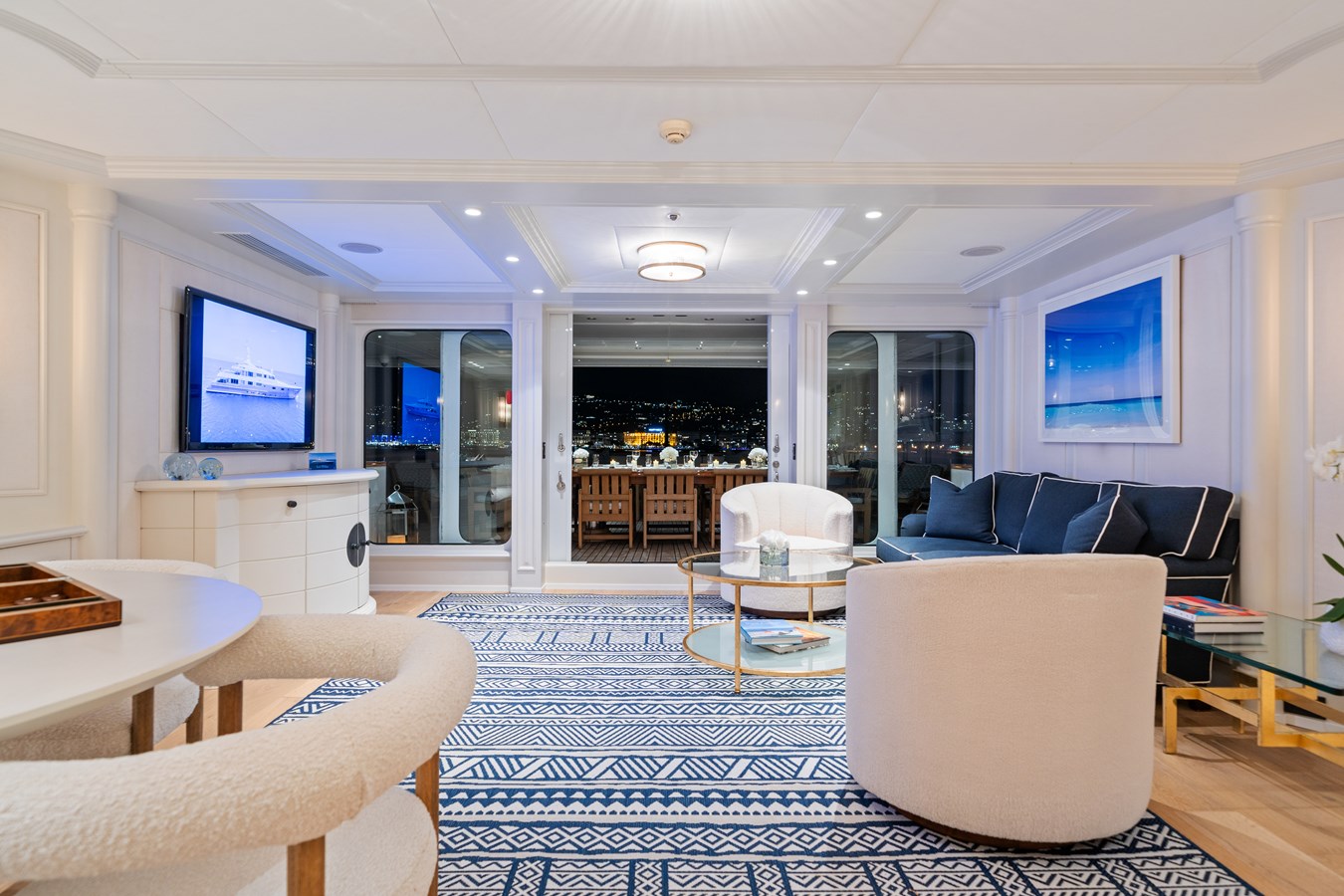

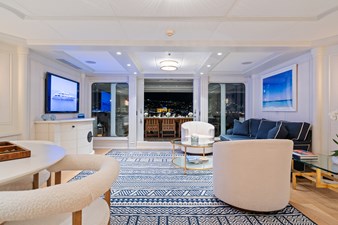

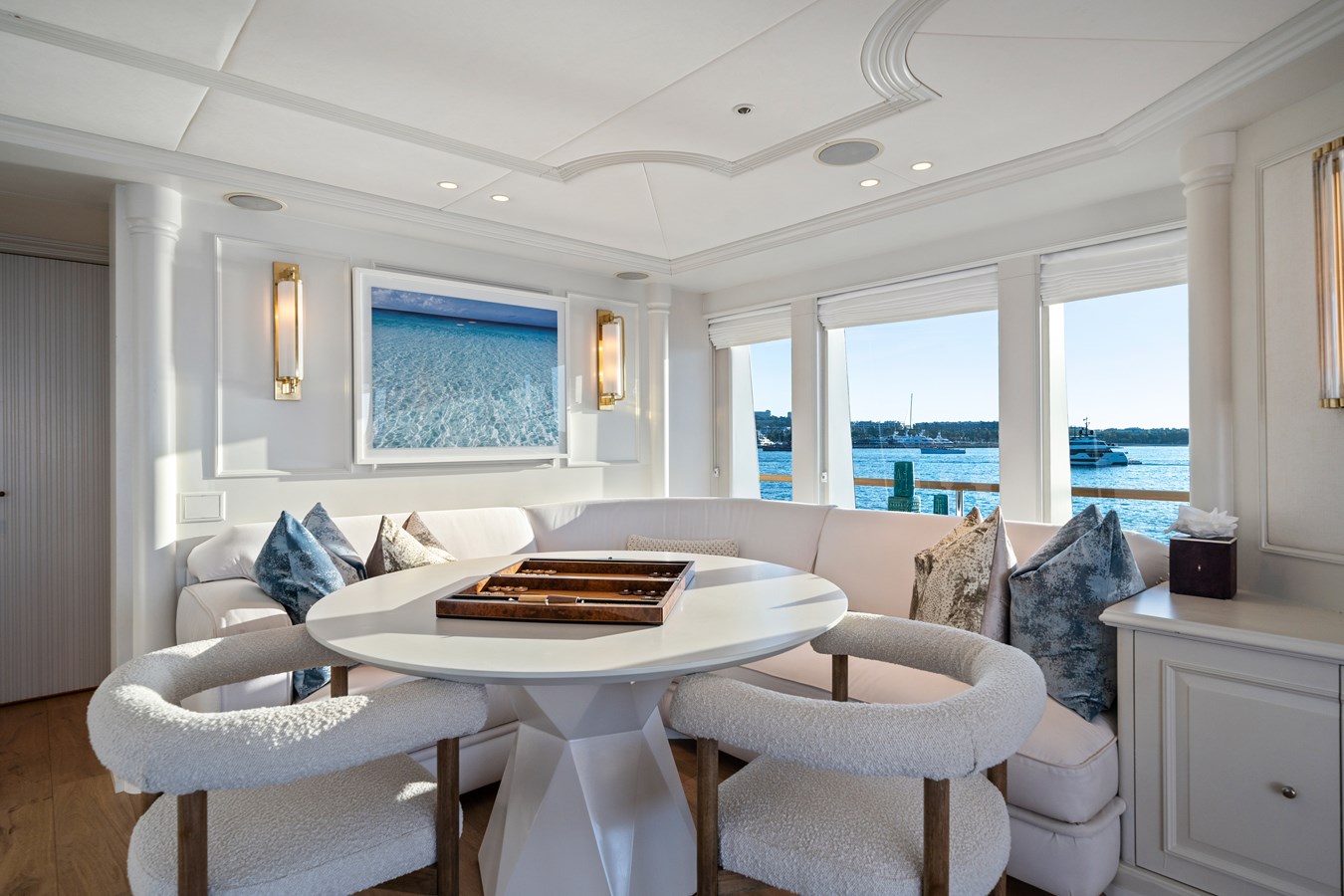

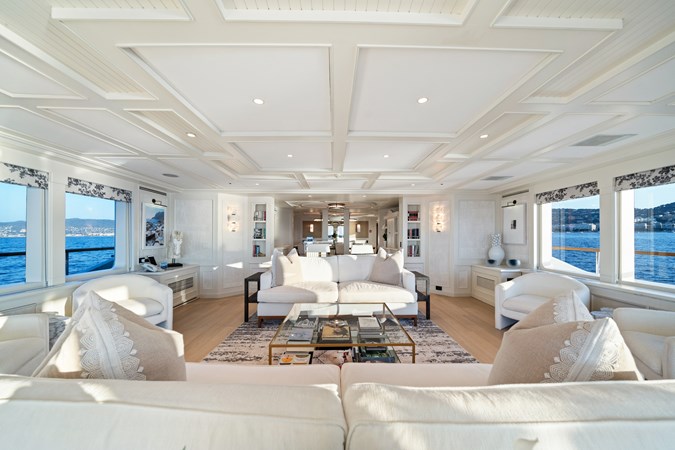

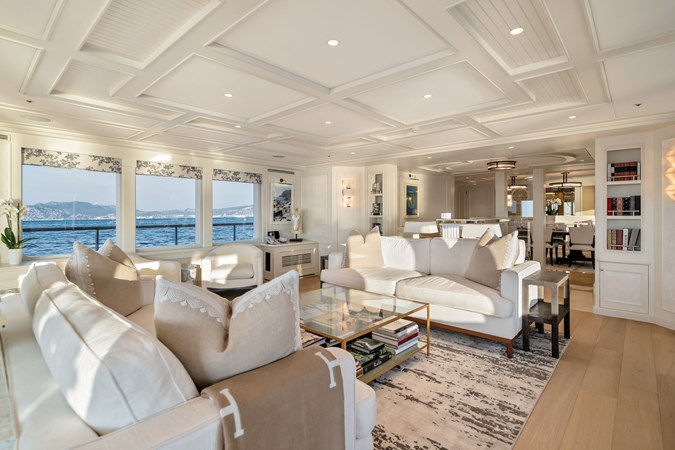

The yacht’s main deck is ideal for relaxation, featuring a spacious salon that opens onto an elegant foyer leading to a formal dining room for 12 guests. These areas are adorned with a refined palette of modern and classic tones, neutral carpets, and soft furnishings. For an alternative retreat, the upper deck saloon offers a charming, equally serene space.

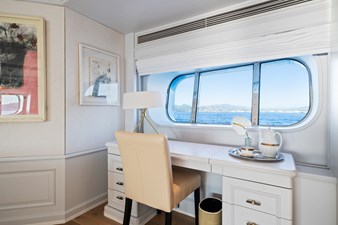

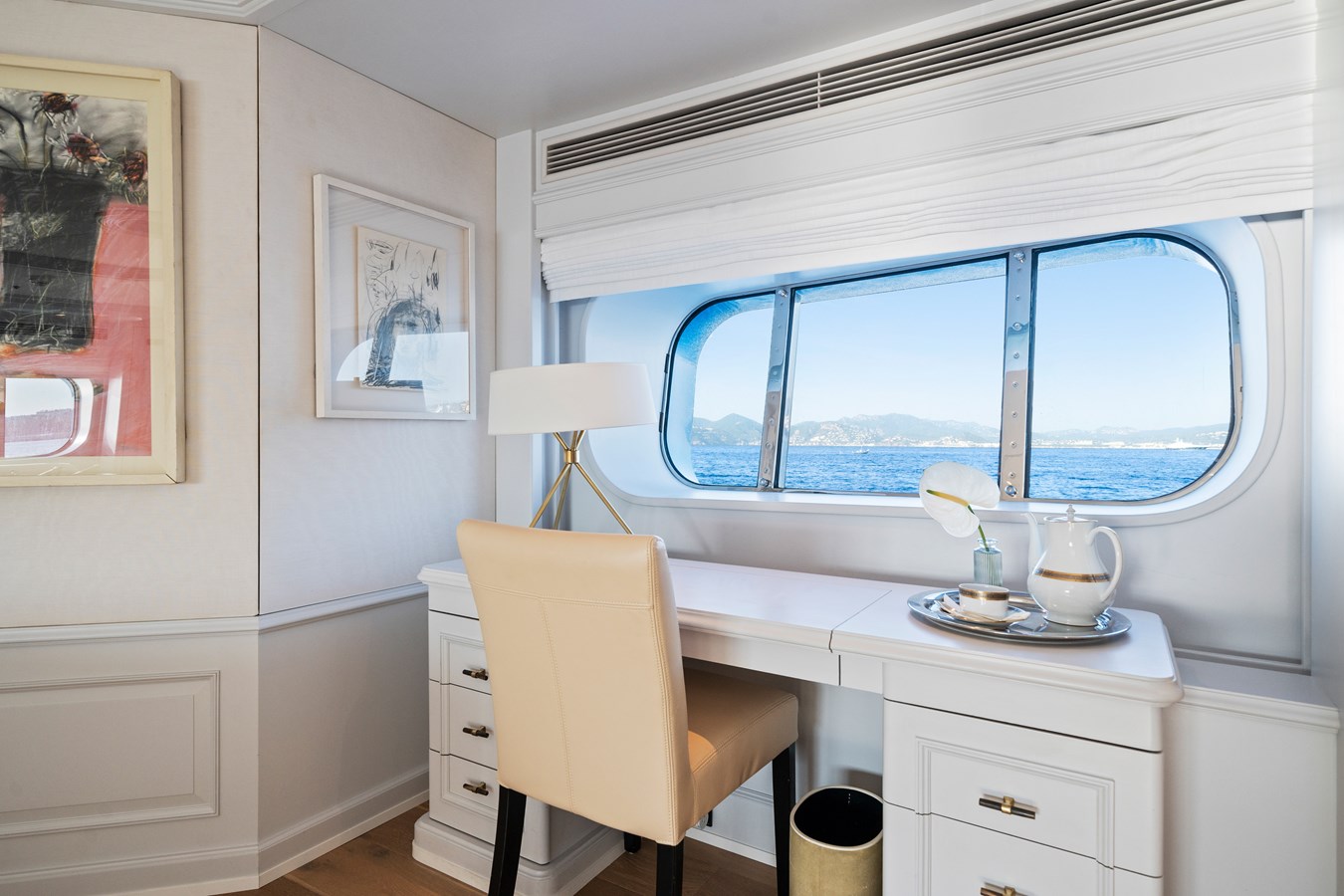

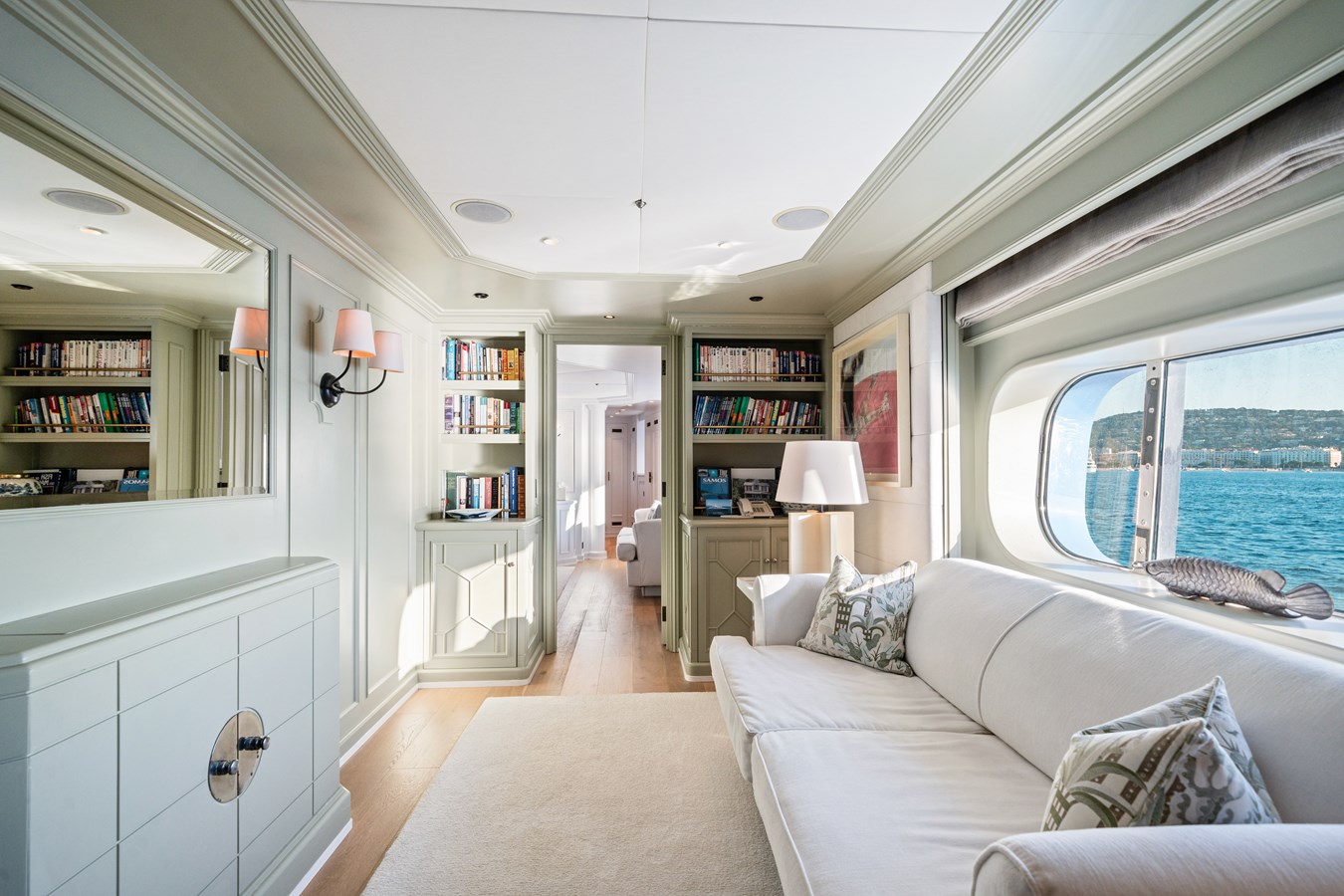

On the main deck, the magnificent full beam master stateroom sets a high standard for the five additional staterooms. The master stateroom includes a private owner’s lounge/office and an opulent bathroom finished in onyx and marble. Each stateroom is equipped with a fully integrated audio-visual system, providing guests with a wealth of entertainment options.

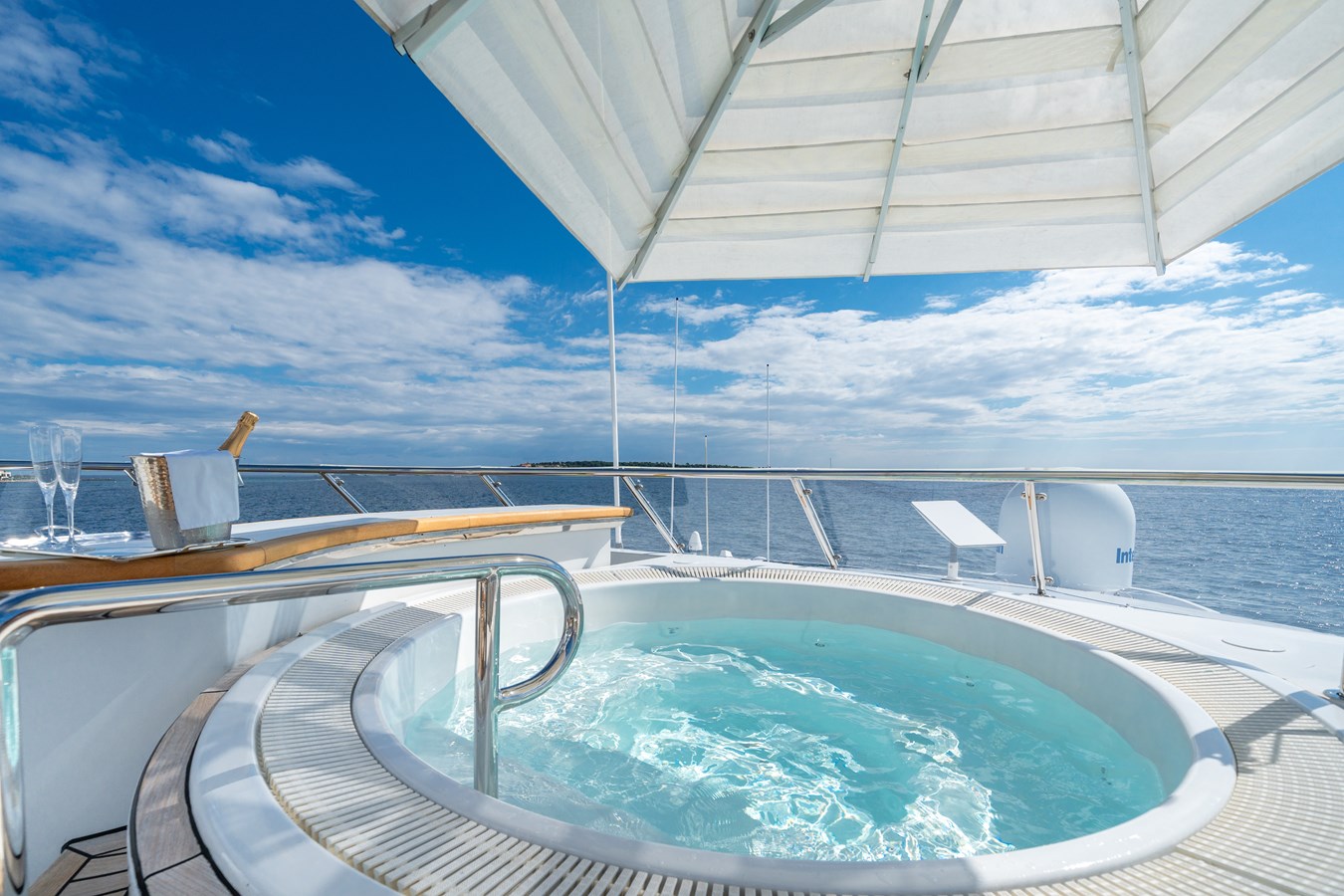

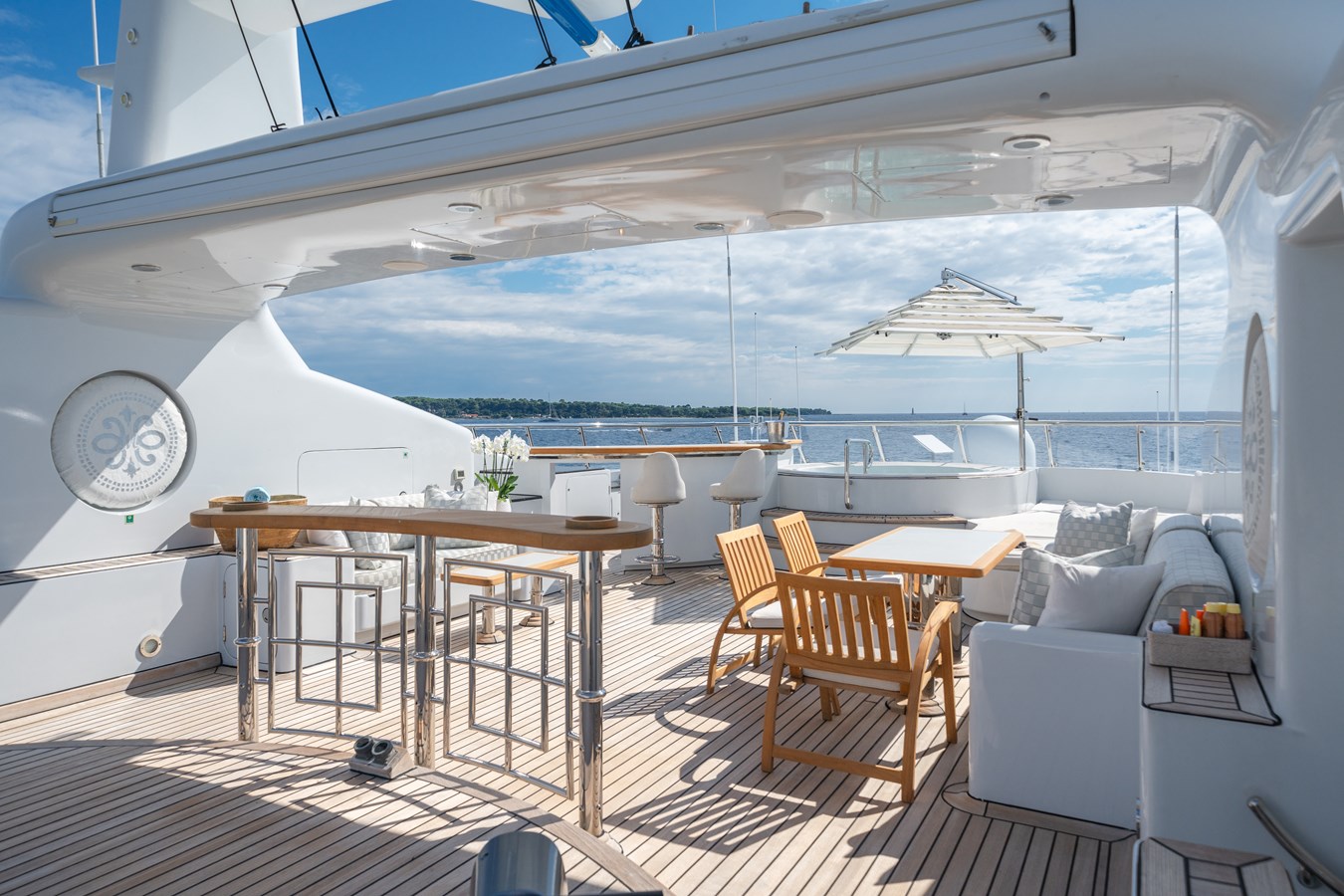

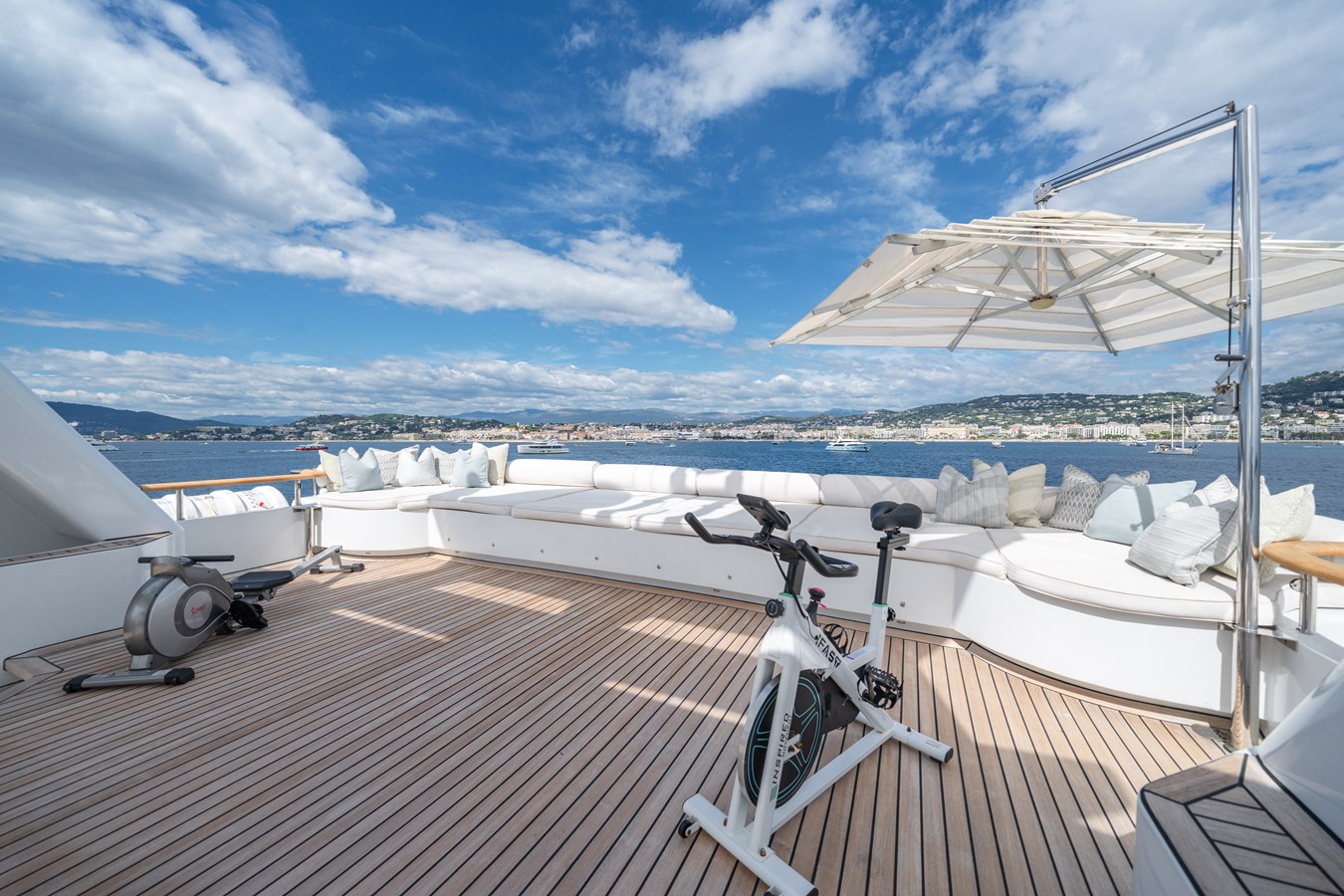

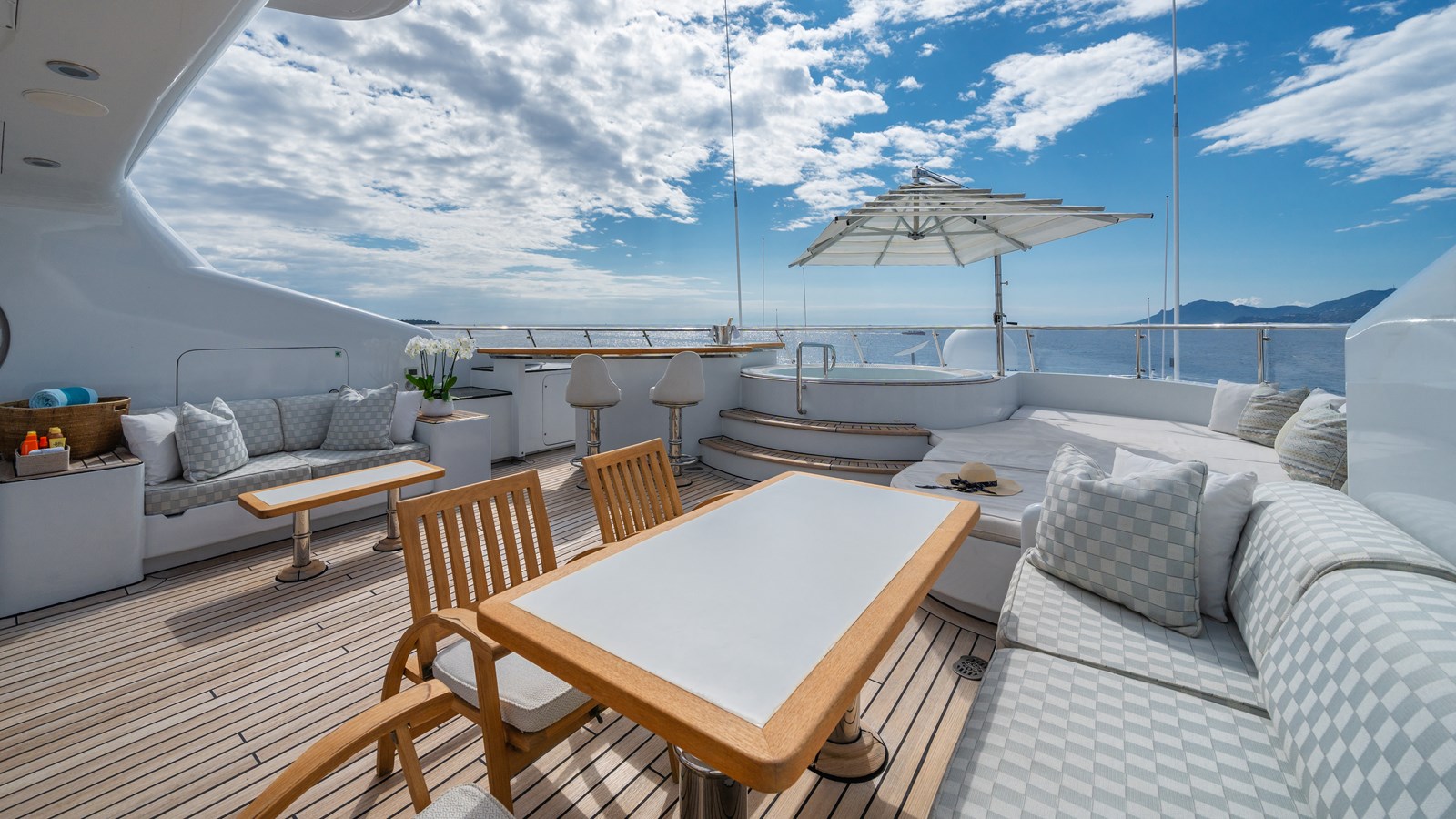

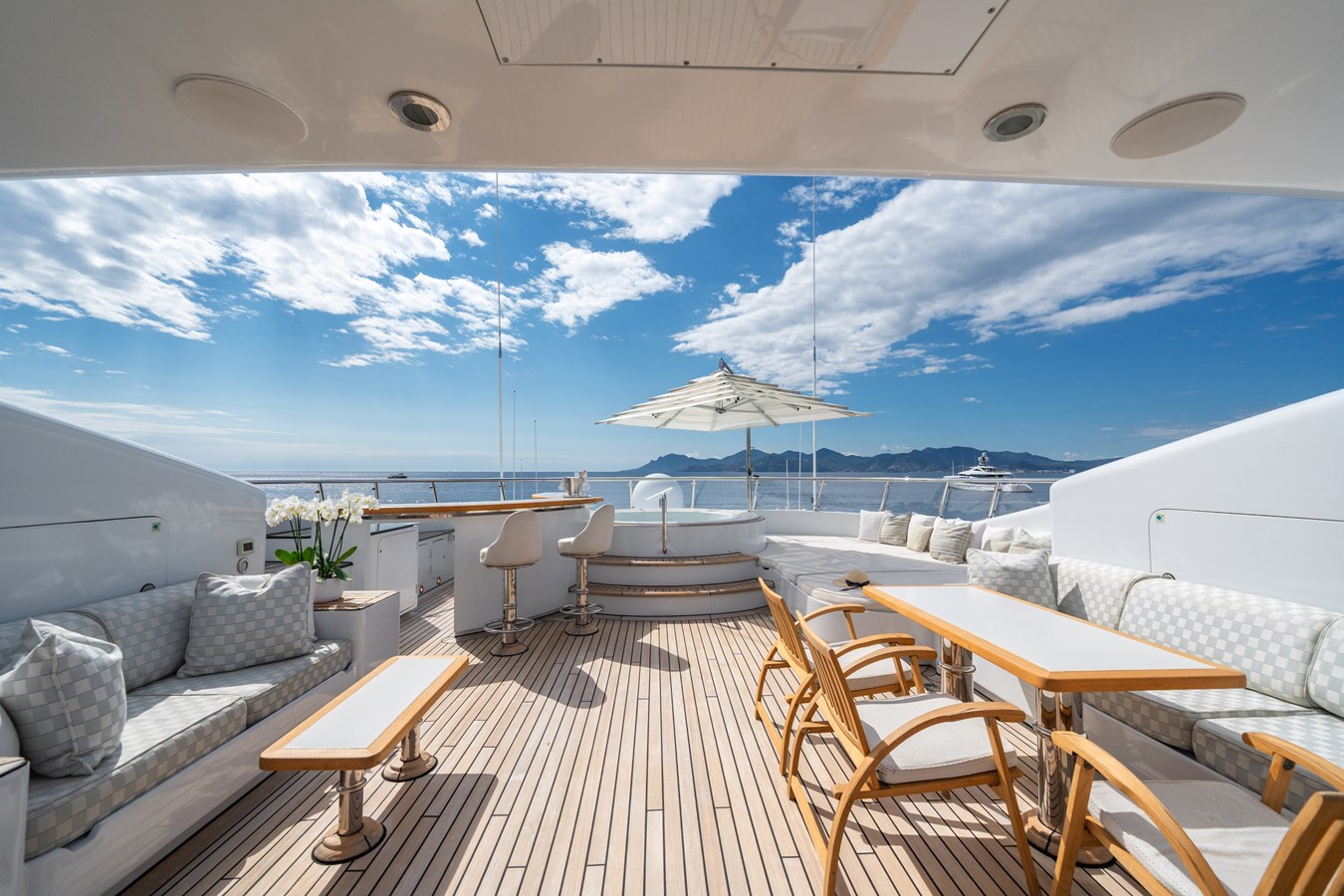

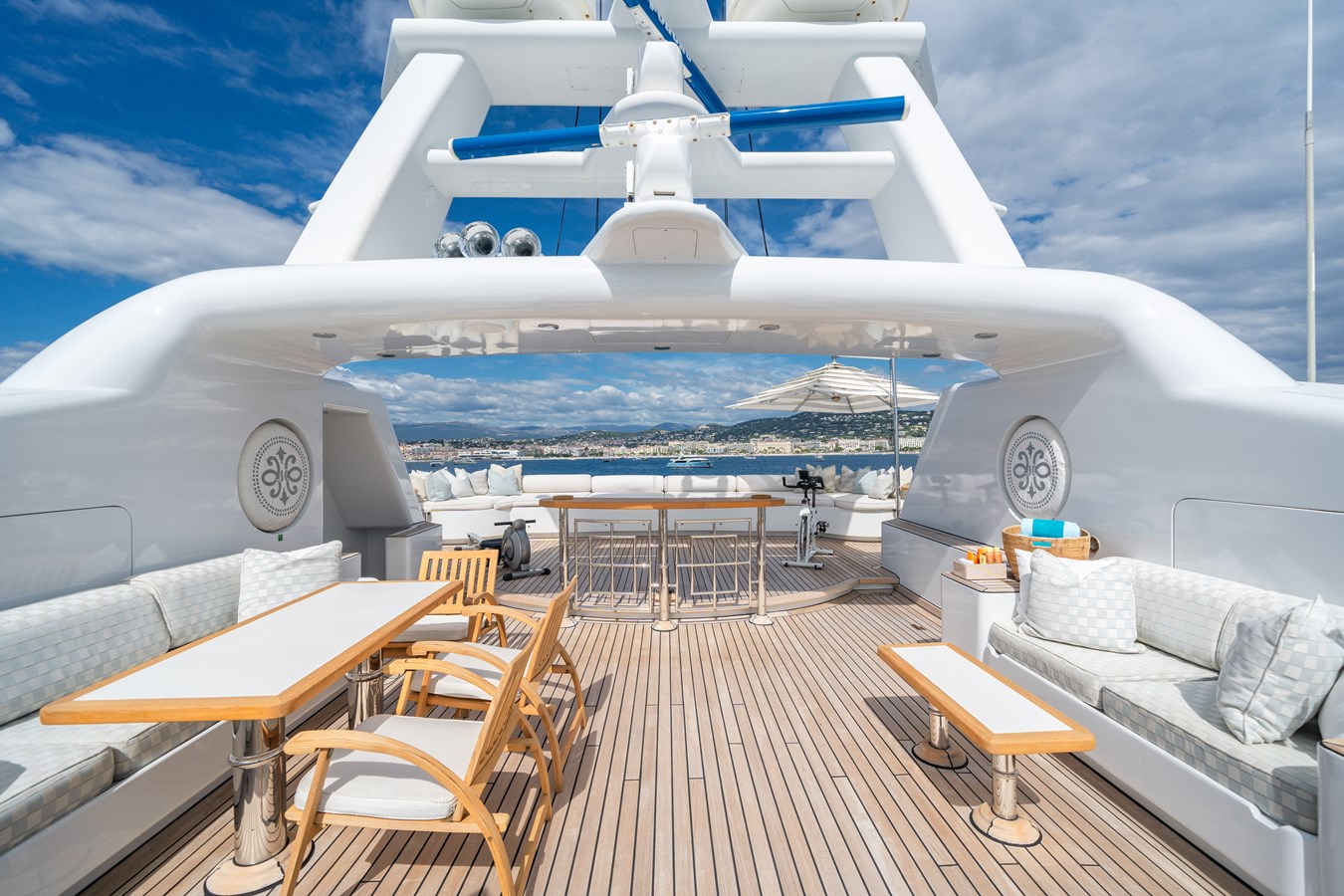

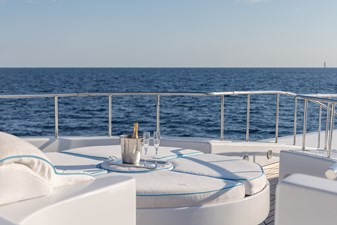

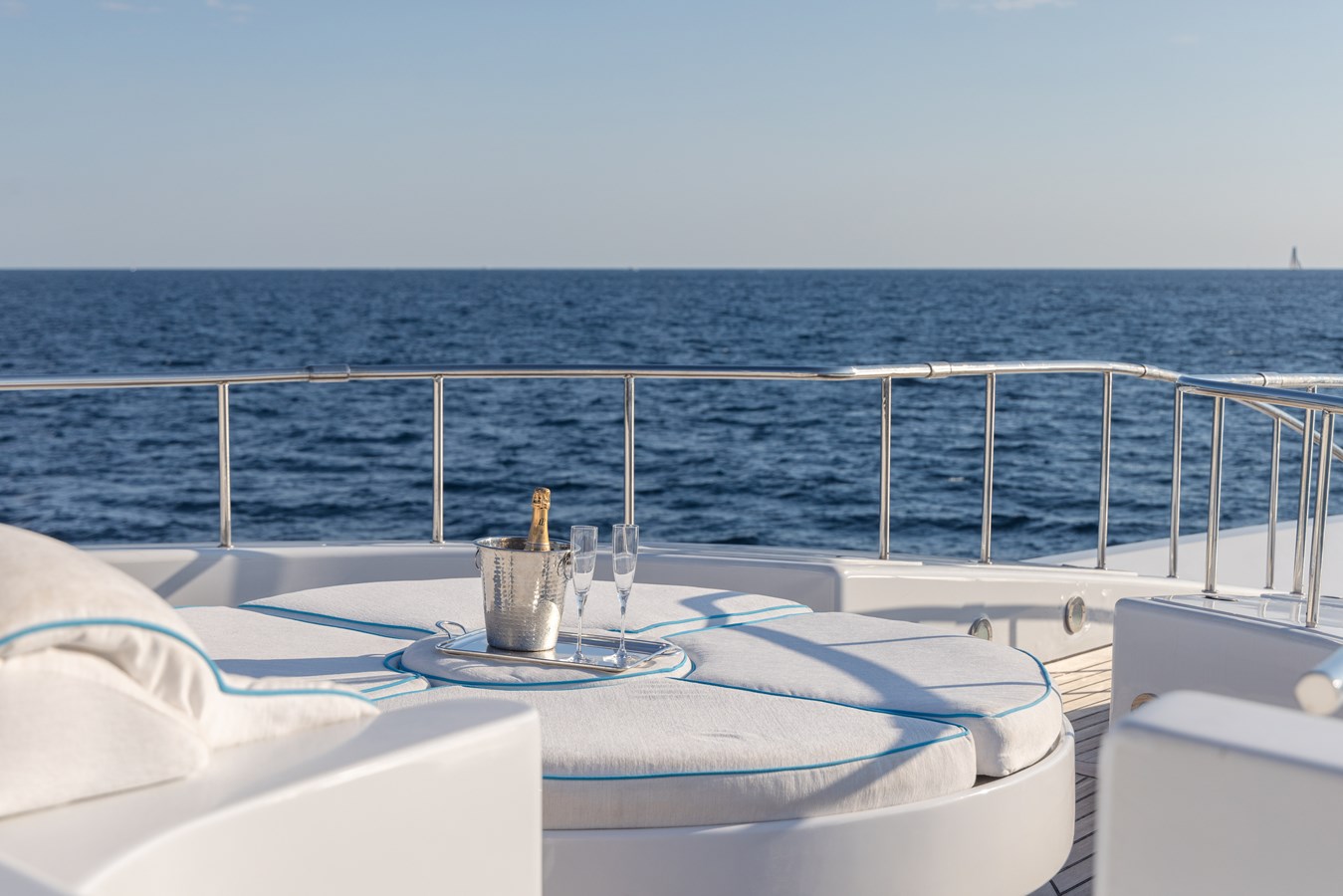

A standout feature of MOSAIQUE is her sundeck, where a whirlpool is surrounded by sun pads and loungers. This area also features a bar and two tables for informal alfresco dining, offering the perfect setting to enjoy fine cuisine and service in complete privacy. Guests can also take advantage of the gym equipment, which includes a treadmill, recumbent bike, training bench, and weights, all sheltered by a Bimini shade for added comfort.

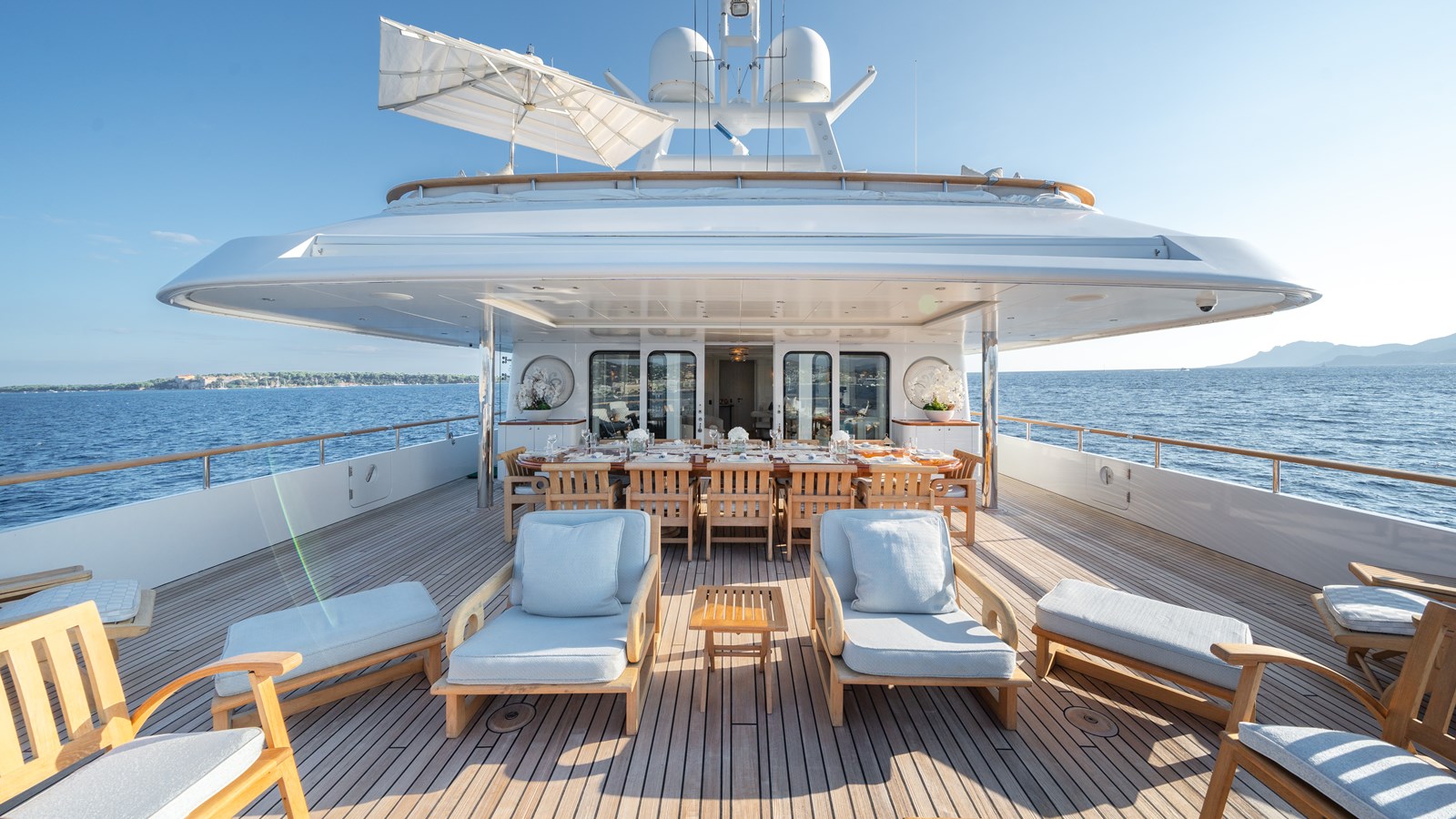

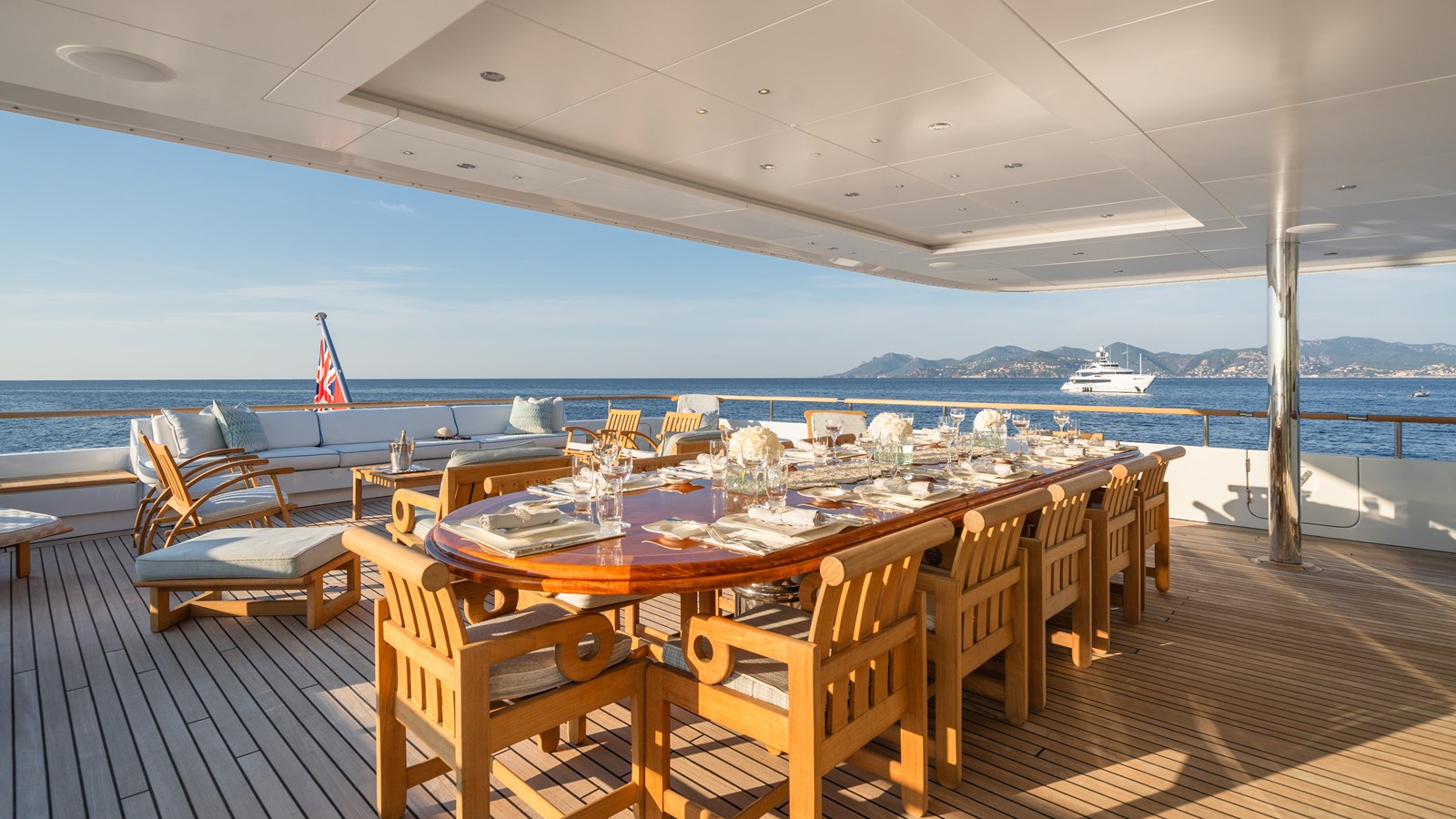

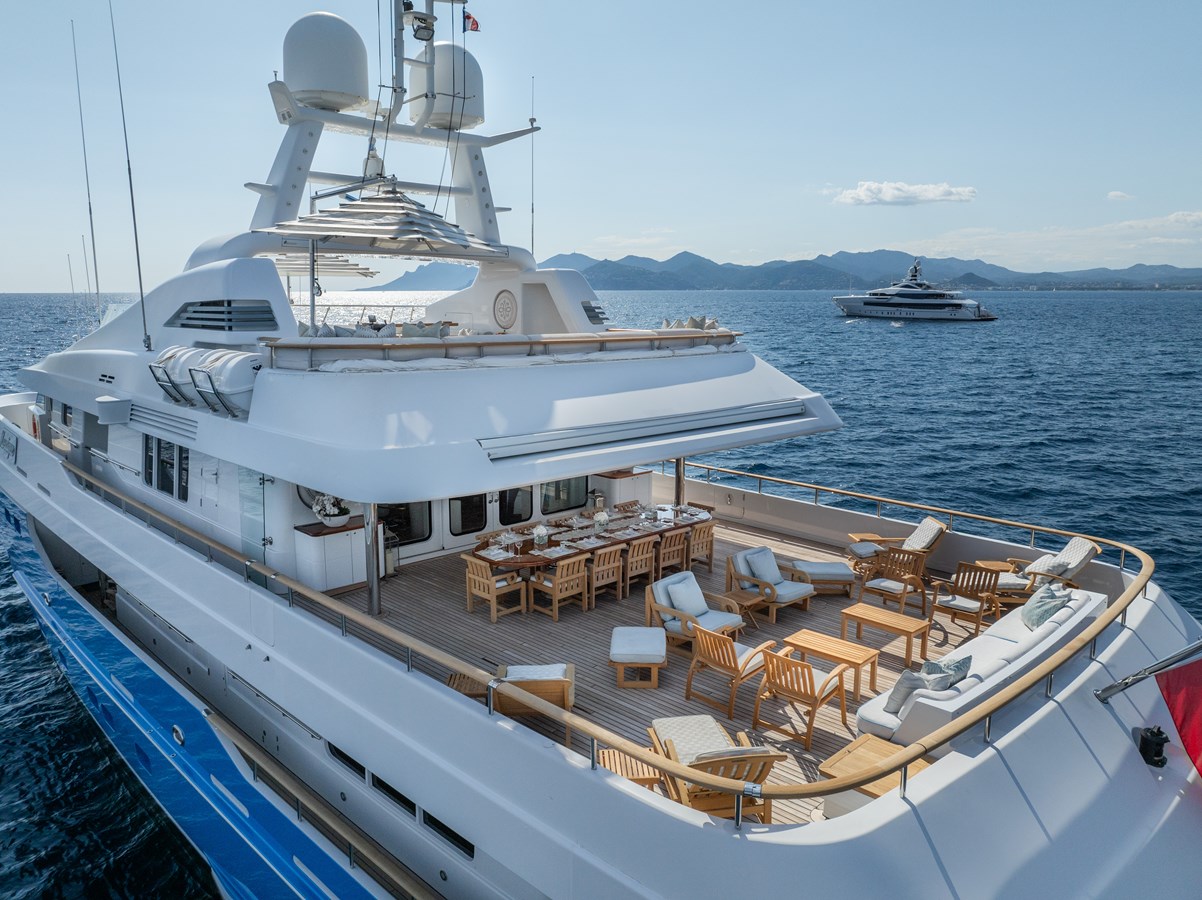

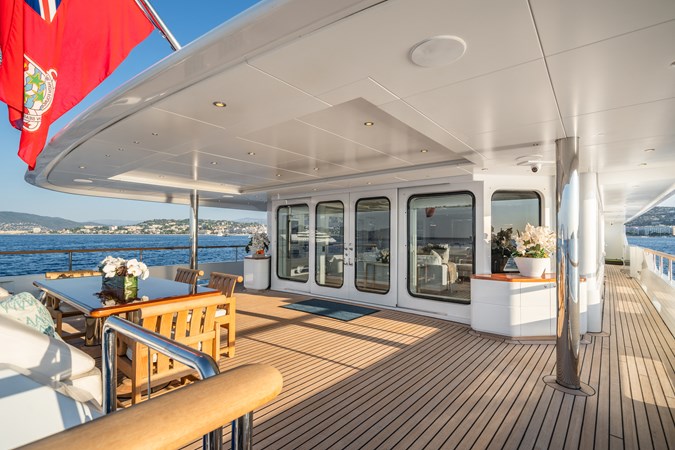

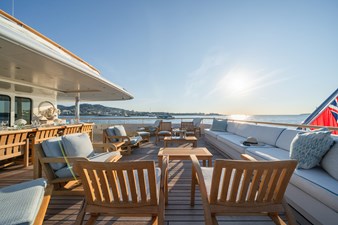

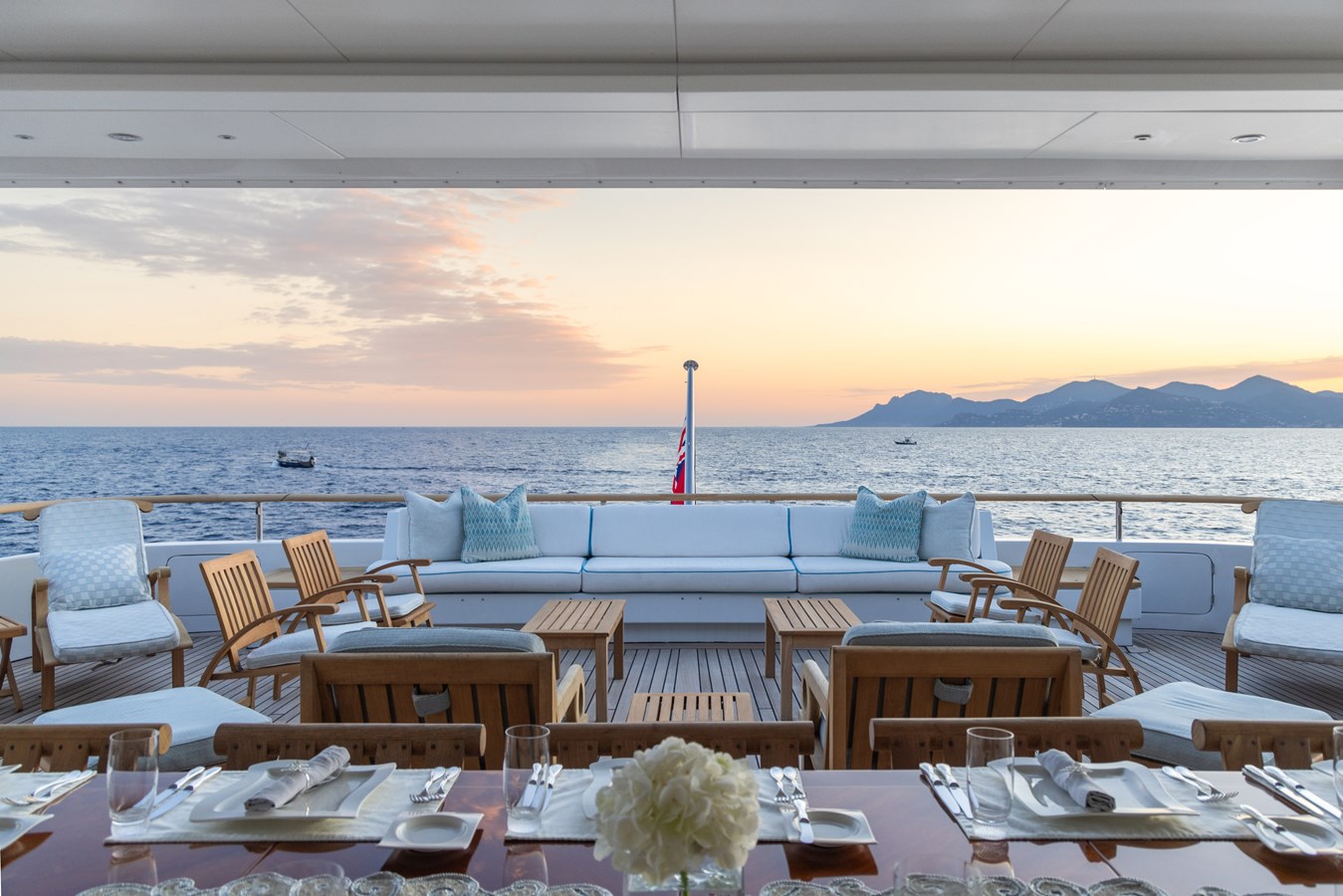

For alfresco dining, the bridge deck offers seating for up to 16 guests around a stunning oval teak table. The table’s removable leaves allow for a more intimate dining experience when desired.

MOSAIQUE is equipped with zero speed stabilizers for a smooth and comfortable experience both underway and at anchor. She has two tenders at the ready for trips ashore or water sports, as well as an impressive array of water toys.

KEY FEATURES:

• Timeless design by Dubois Naval Architects
• Light, Bright, Airy interior décor refreshed in 2023 provides accommodations for 12 guests in 6 staterooms including a main deck full beam master stateroom

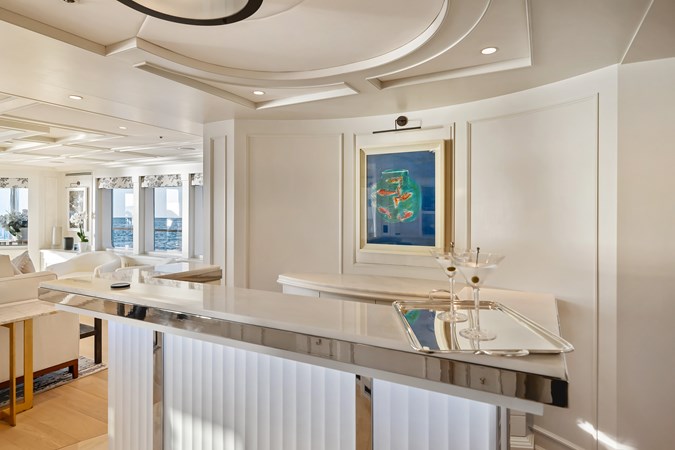

• Whirlpool, Sun Pads, Exercise Equipment, Dining and Cocktail Bar
•  A major refit in 2022/2023 included:o     Major overhaul of the main engines and generators, covered by Caterpillar Platinum Extended Serviceo    20-year Lloyd's classification surveyo    Complete bottom sandblasting
• Quantum Zero Speed Stabilizers
• Transatlantic Capability
• 4,500 nm range at 14 knots
• Strong Charter Reputation

2022/2023

• Hardwood Floors installed throughout the vessel
• 20-Year Lloyd’s Classification Survey Completed 2022
• Top End Overhaul on Main Engines 2022
  • Covered by Caterpillar Platinum Extended Service Cover (ESC)
• Full Rebuild on Generators 2022
  • Covered by Caterpillar Platinum Extended Service Cover (ESC)
• Complete Bottom Paint Job 2022 (sandblasted down to bare metal)
• Interior Refresh 2023; soft goods, carpet, etc.
• Complete refurbishing of crew quarters
• Deckhead replacement throughout the vessel
• Various mechanical improvements

2021-2019

• (March 2021) Special Lloyds Class Surveys renewal of all certification
• "Blue Marlin" exterior paint Job 2020
• New Carpets, new interior refurbishment and upgrades
• Various mechanical improvements

2015/2014

• Total interior refurbishment with new soft furnishings
